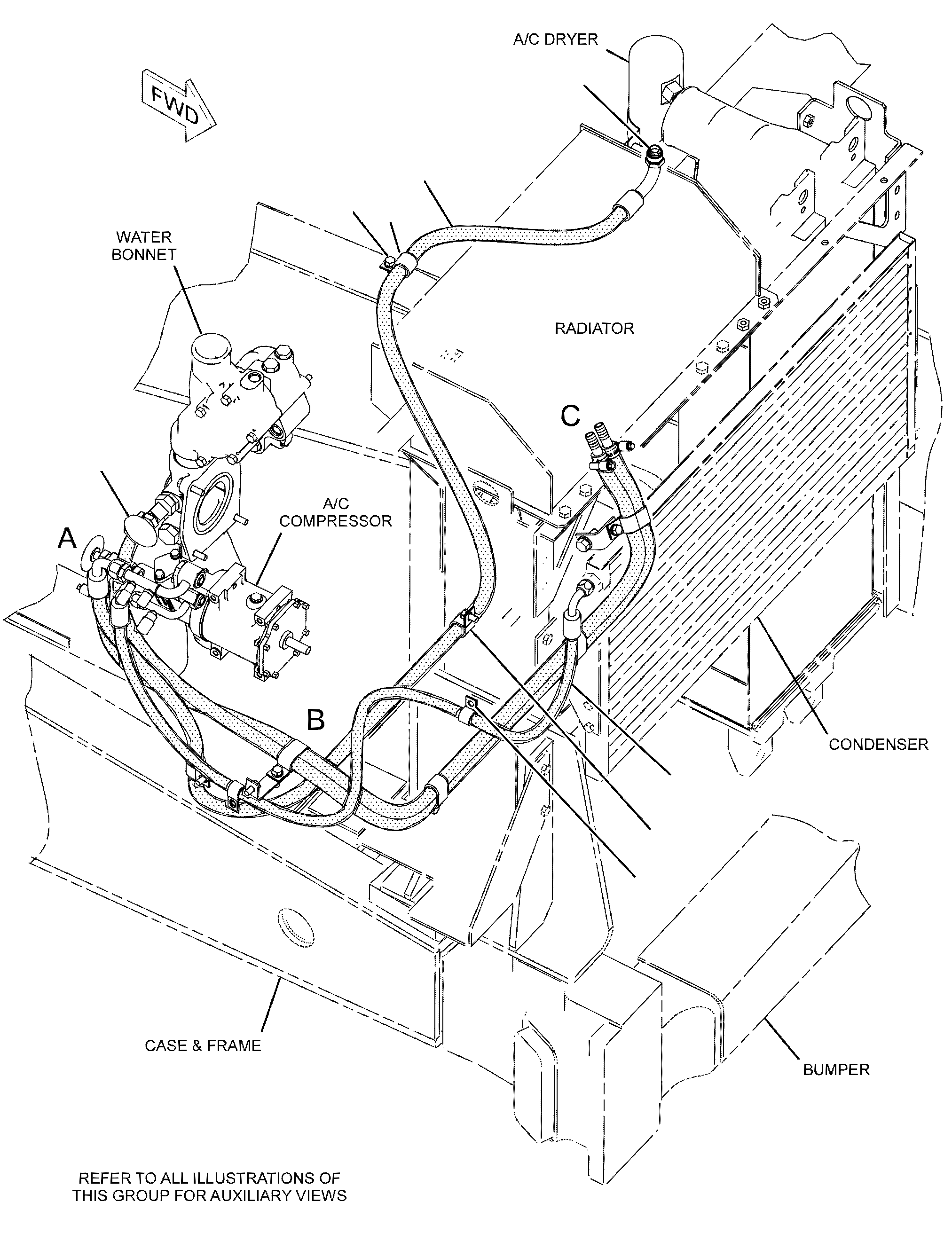

232-3618 LINES GP-HEATER & AIR CONDS/N DBB1-550
Group No: 232-3618 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1P6356 | 1 PLATE | 1 | |
| 5U5745 | 2 CONNECTOR-HOSE | 2 | |
| 9X2488 | 3 CLAMP-HOSE | 2 | |
| 0086904 | 4 FITTING | 1 | |
| 1140063 | 5 PLATE-INSTRUCTION | 1 | |
| 1352145 | 6 BRACKET | 1 | |
| 1649175 | 7 PLATE | 1 | |
| 1878661 | 8 FITTING AS-AIR CONDITIONER | 1 | |
| 3E4051 | CAP-SEAL (LOW SIDE CHARGE PORT) | 1 | |
| 3E4057 | VALVE AS (REFRIGERANT, LOW SIDE) | 1 | |
| 1724880 | CAP-SEAL | 1 | |
| 1807180 | CORE-VALVE | 1 | |
| 1807181 | BODY-VALVE | 1 | |
| 2406033 | 9 HOSE AS | 1 | |
| 2406034 | 10 HOSE AS | 1 | |
| 3E4066 | 11 FITTING AS-AIR CONDITIONER | 1 | |
| 4S1962 | 12 CLIP (LOOP) | 4 | |
| 5M3062 | 13 BOLT (3/8-16X0.75-IN) | 7 | |
| 6D1641 | 14 CLIP (LOOP) | 4 | |
| 6D4246 | 15 CLIP (LOOP) | 2 | |
| 6V8801 | 16 NUT (3/8-16-THD) | 2 | |
| 7D7026 | 17 CONNECTOR-HOSE | 1 | |
| 8L8413 | 18 STRAP-CABLE (WHITE) | 1 | |
| 8T2502 | 19 BOLT (3/8-16X1.125-IN) | 1 | |
| 8T4223 | 20 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 8T4896 | 21 WASHER-HARD (10.2X18.5X2.5-MM THK) | 11 | |
| 8T6466 | 22 BOLT (M10X1.5X60-MM) | 1 | |
| 8T7934 | 23 WASHER-HARD (11X21X5-MM THK) | 1 | |
| 8T8917 | 24 BOLT (1/2-13X1.25-IN) | 1 | |
| 9B7237 | 25 BOLT (3/8-16X1.25-IN) | 1 | |
| 9N1595 | 26 NUT (3/8-18-THD) | 1 | |
| 9N3666 | 27 VALVE-MANUAL | 2 | |
| 9X7381 | 28 SEAL-O-RING | 2 | |
| 9X7382 | 29 SEAL-O-RING | 1 | |
| 9X7383 | 30 SEAL-O-RING | 1 | |
| 9X7385 | 31 SEAL-O-RING | 2 | |
| 1361953 | 32 HOSE (170-CM) | ||
| 1361953 | 32A HOSE (185-CM) | ||
| 6B4661 | 33 BUSHING-REDUCER | 1 | |
| 3D2824 | 34 SEAL-O-RING | 1 |
