System And Components

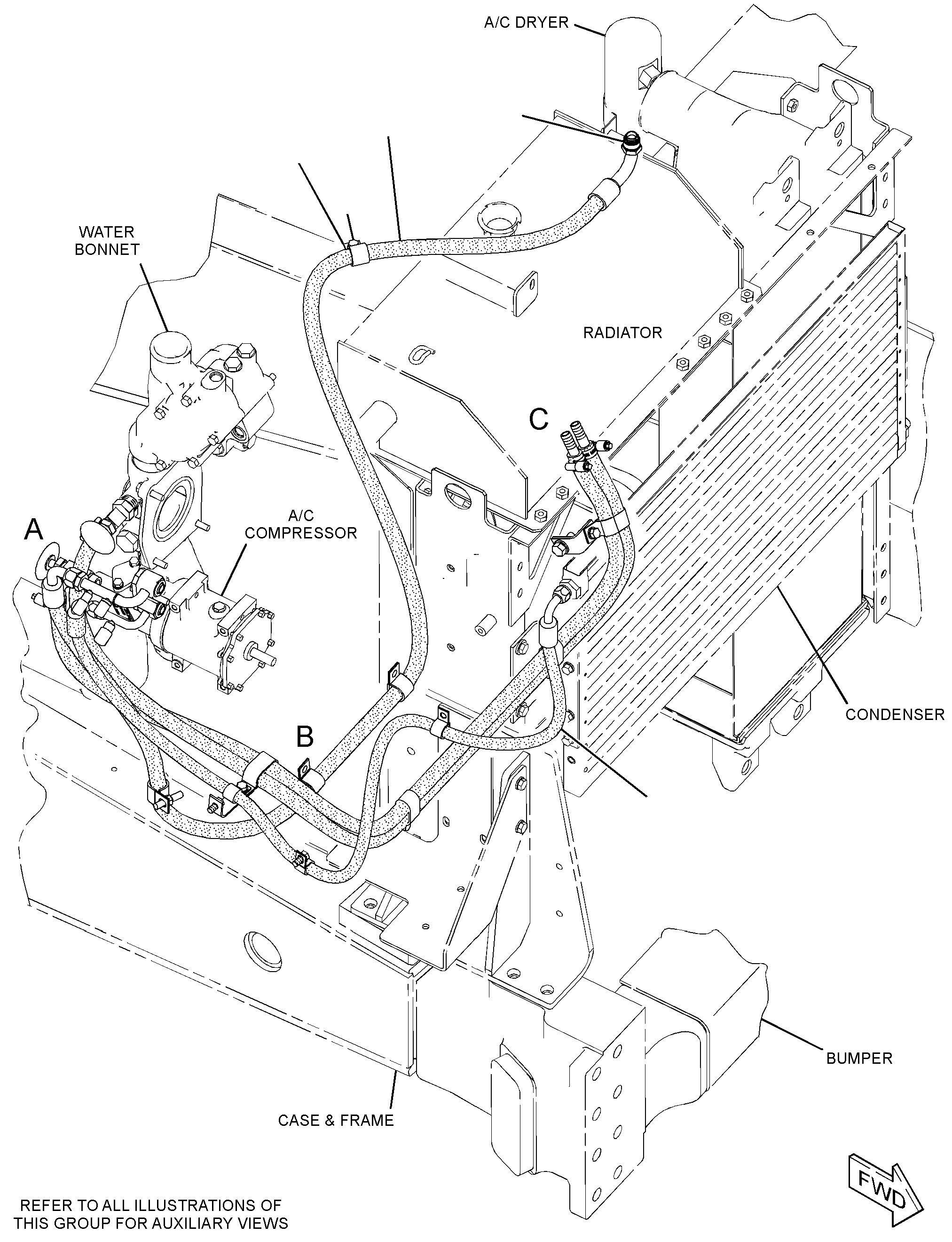

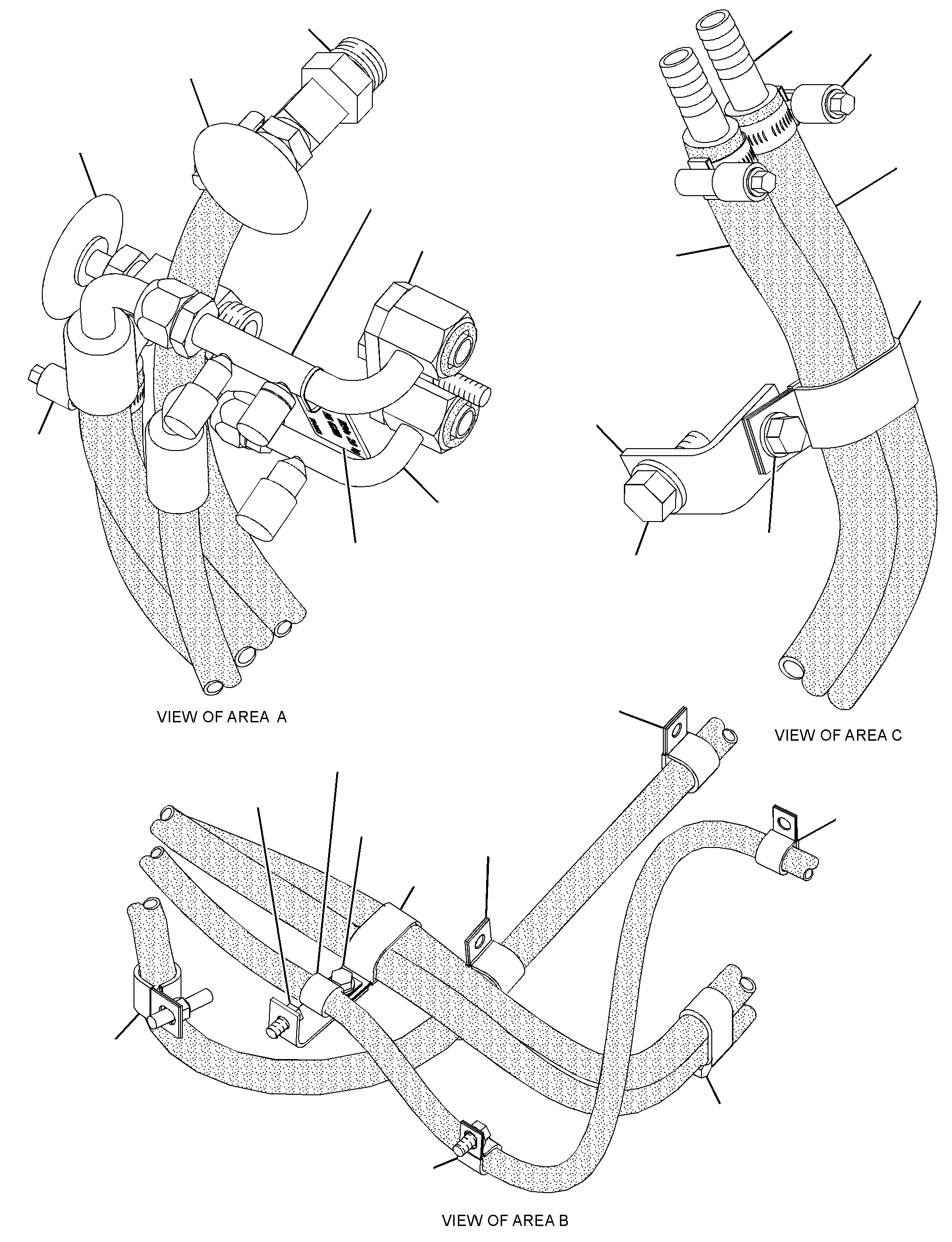

232-3618 LINES GP-HEATER & AIR CONDS/N DBB551-UP
Group No: 232-3618 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1P6356 | 1 PLATE | 1 | |
| 5U5745 | 2 CONNECTOR-HOSE | 2 | |
| 9X2488 | 3 CLAMP-HOSE | 4 | |
| 0086904 | 4 FITTING | 1 | |
| 1140063 | 5 PLATE-INSTRUCTION | 1 | |
| 1352145 | 6 BRACKET | 1 | |
| 1649175 | 7 PLATE | 1 | |
| 1878661 | 8 FITTING AS-AIR CONDITIONER (LOW SIDE) | 1 | |
| 3E4051 | CAP-SEAL (LOW SIDE CHARGE PORT) | 1 | |
| 3E4057 | VALVE AS (REFRIGERANT, LOW SIDE) | 1 | |
| 1724880 | CAP-SEAL | 1 | |
| 1807180 | CORE-VALVE | 1 | |
| 1807181 | BODY-VALVE | 1 | |
| 2406033 | 9 HOSE AS | 1 | |
| 2406034 | 10 HOSE AS | 1 | |
| 3D2824 | 11 SEAL-O-RING | 2 | |
| 3E4066 | 12 FITTING AS-AIR CONDITIONER (HIGH SIDE) | 1 | |
| 4S1962 | 13 CLIP (LOOP) | 4 | |
| 5M3062 | 14 BOLT (3/8-16X0.75-IN) | 4 | |
| 5S7379 | 15 BOLT (3/8-16X0.875-IN) | 1 | |
| 6D1641 | 16 CLIP (LOOP) | 4 | |
| 6D4246 | 17 CLIP (LOOP) | 3 | |
| 6V8801 | 18 NUT (3/8-16-THD) | 2 | |
| 7D7026 | 19 CONNECTOR-HOSE | 1 | |
| 8L8413 | 20 STRAP-CABLE (WHITE) | 1 | |
| 8T2502 | 21 BOLT (3/8-16X1.125-IN) | 1 | |
| 8T4223 | 22 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 8T4896 | 23 WASHER-HARD (10.2X18.5X2.5-MM THK) | 10 | |
| 8T6466 | 24 BOLT (M10X1.5X60-MM) | 1 | |
| 8T7934 | 25 WASHER-HARD (11X21X5-MM THK) | 1 | |
| 8T8917 | 26 BOLT (1/2-13X1.25-IN) | 1 | |
| 9B7237 | 27 BOLT (3/8-16X1.25-IN) | 1 | |
| 9N1595 | 28 NUT (3/8-18-THD) | 2 | |
| 9N3666 | 29 VALVE-MANUAL (SUPPLY, RETURN LINES) | 2 | |
| 9X7381 | 30 SEAL-O-RING | 2 | |
| 9X7382 | 31 SEAL-O-RING | 1 | |
| 9X7383 | 32 SEAL-O-RING | 1 | |
| 9X7385 | 33 SEAL-O-RING | 2 | |
| 1361953 | 34 HOSE (170-CM) | ||
| 1361953 | 34A HOSE (185-CM) | ||
| 1749599 | 35 STUD (3/8-16-THD) | 1 |
