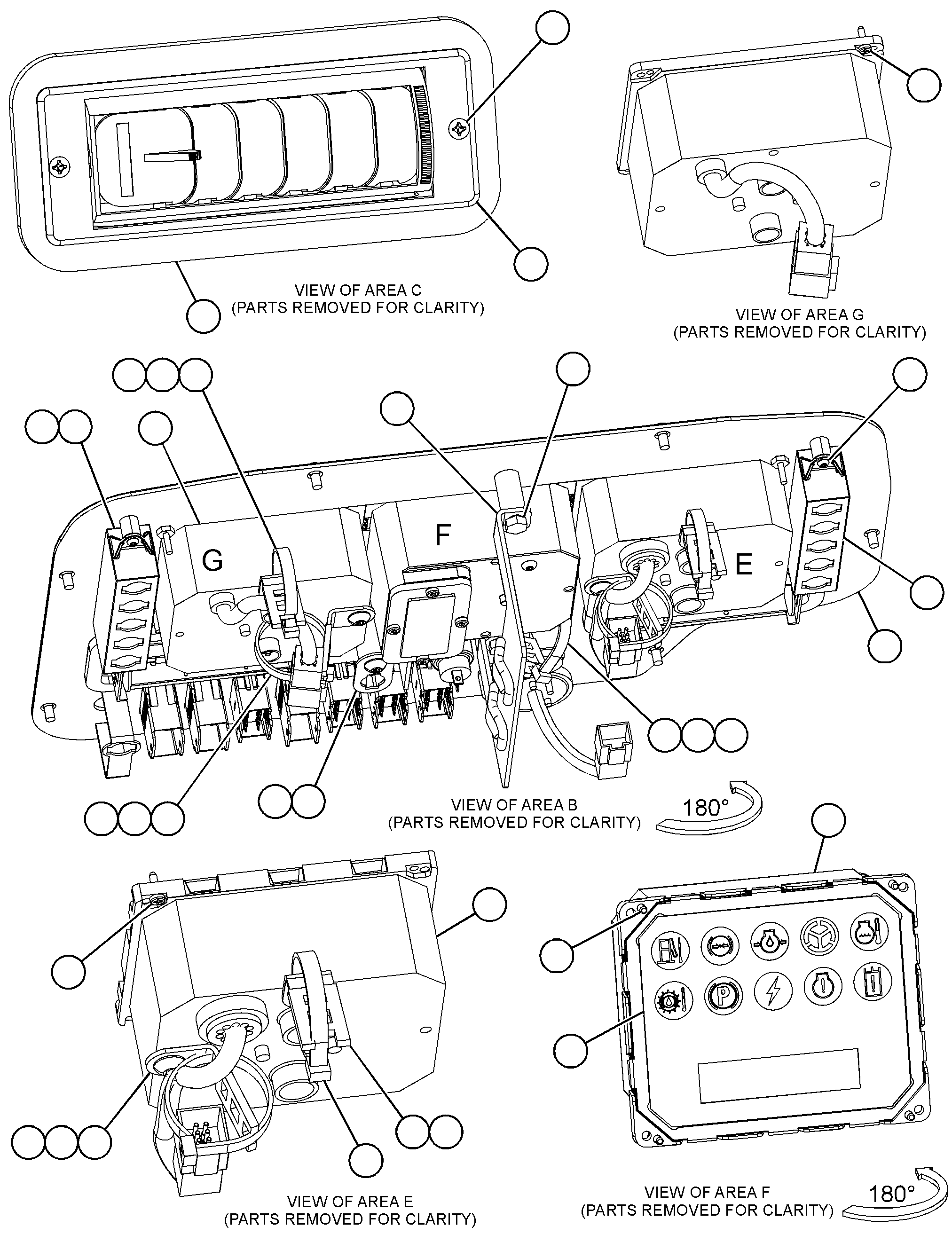

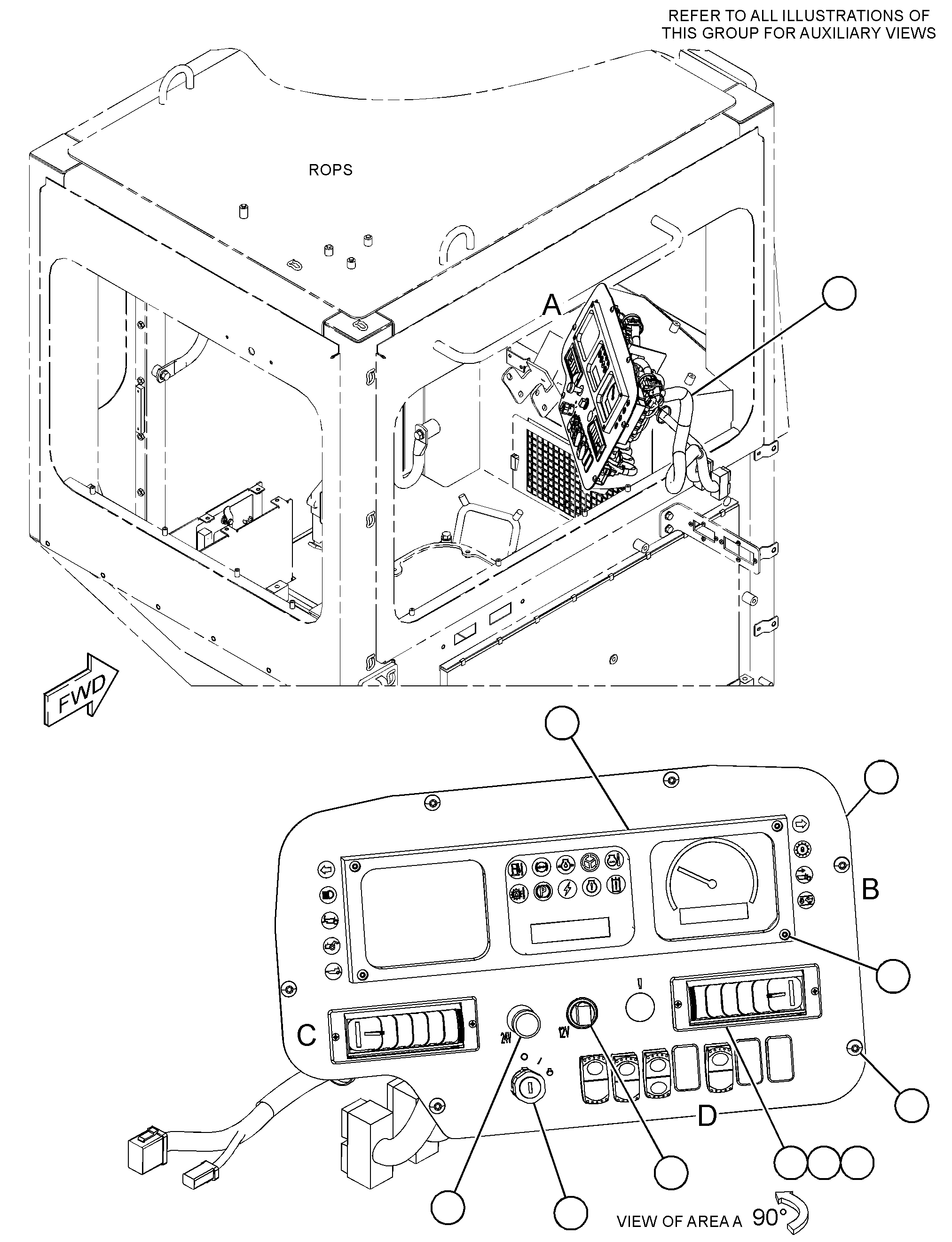

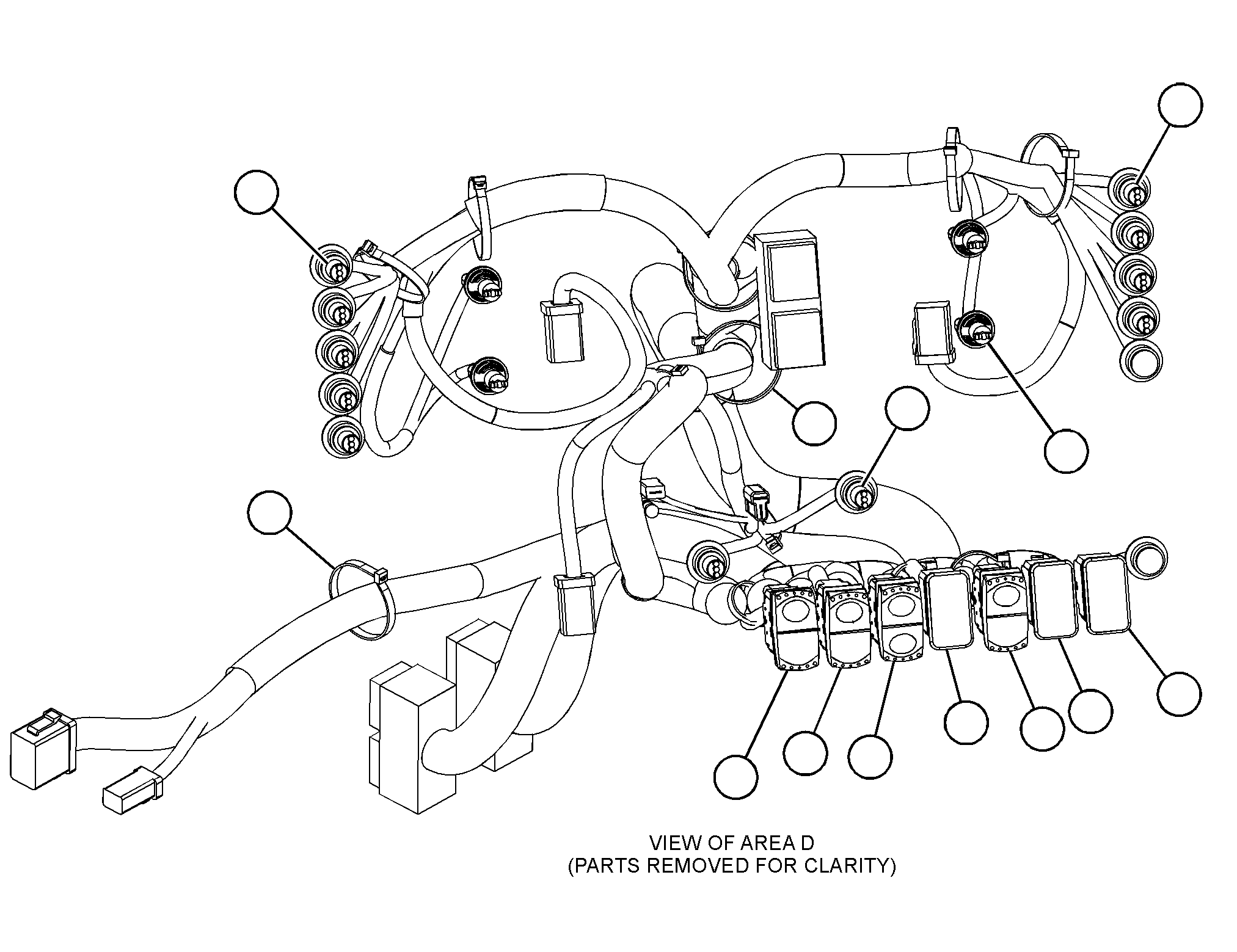

263-6419 PANEL GP-INSTRUMENTS/N DBB1-UP
Group No: 263-6419 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 3 | |
| 7K1181 | 2 STRAP-CABLE | 5 | |
| 1172311 | 3 SOCKET-AUXILIARY POWER (12-VOLT) | 1 | |
| 1538061 | 4 MODULE GP-SPEEDOMETER & TACH (INSTRUMENT PANEL) | 1 | |
| 1666674 | 5 MODULE | 2 | |
| 1682260 | 6 PLATE | 2 | |
| 1686981 | 7 MODULE GP-QUAD GAUGE (INSTRUMENT PANEL) | 1 | |
| 1843294 | 8 SEAL | 2 | |
| 2183231 | 9 BRACKET AS | 1 | |
| 7T1099 | LINK | 2 | |
| 2286089 | 10 PLUG (ROCKER SWITCH) | 3 | |
| 2364608 | 11 SWITCH AS-ROCKER (EMS) | 1 | |
| 2364616 | 12 SWITCH AS-ROCKER (24-VOLT) | 1 | |
| 2495480 | 13 SWITCH AS-ROCKER (24-VOLT)(BOWL FLOODLIGHT) | 1 | |
| 2513539 | 14 SWITCH AS-ROCKER (24-VOLT)(HEADLIGHT) | 1 | |
| 2546190 | 15 FILM-IDENTIFICATION (CATERPILLAR MONITORING SYSTEM) | 1 | |
| 2568677 | 16 HARNESS AS-PANEL | 1 | |
| 5P6271 | CONNECTOR AS | 1 | |
| 2025397 | PLUG | 27 | |
| 8T9834 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 3E8557 | BOLT (M5X0.8X39.37-MM) | 1 | |
| 3E4367 | RING-RETAINING | 1 | |
| 9X3132 | SEAL-CONNECTOR (40-PIN) | 2 | |
| 9X0141 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 3E8557 | BOLT (M5X0.8X39.37-MM) | 1 | |
| 3E4367 | RING-RETAINING | 1 | |
| 9X3490 | SEAL-CONNECTOR (40-PIN) | 2 | |
| 9X7147 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 3E8557 | BOLT (M5X0.8X39.37-MM) | 1 | |
| 3E4367 | RING-RETAINING | 1 | |
| 9X3490 | SEAL-CONNECTOR (40-PIN) | 2 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 1552271 | KIT-CONNECTING PLUG (4-PIN) | 1 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 2 | |
| 2457434 | KIT-CONNECTING PLUG (10-PIN) | 7 | |
| 8T8737 | PLUG-SEAL | 38 | |
| 1851860 | SEAL-WIRE | 39 | |
| 1851861 | SEAL-WIRE | 4 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 86 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 26 | |
| 1071984 | SOCKET-LAMP | 13 | |
| 1135183 | SOCKET-LAMP | 4 | |
| 3S2093 | STRAP-CABLE | 13 | |
| 1071985 | TERMINAL | 26 | |
| 1135184 | TERMINAL-RECEPTACLE (16-GA TO 18-GA) | 8 | |
| 9X0194 | TERMINAL AS | 1 | |
| 5P4571 | TERMINAL-BLADE (14-GA TO 16-GA) | 1 | |
| 2041297 | TERMINAL AS-BLADE (18-GA TO 20-GA) | 39 | |
| 2354123 | TERMINAL (18-GA TO 20-GA) | 1 | |
| 2887146 | WIRE AS (16-GA) | 4 | |
| 5P4571 | TERMINAL-BLADE (14-GA TO 16-GA) | 1 | |
| 5P5618 | TERMINAL-BLADE (10-GA TO 12-GA) | 1 | |
| 5P4571 | TERMINAL-BLADE (14-GA TO 16-GA) | 1 | |
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(52-CM) | ||
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(30-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(15-CM) | ||
| 2596333 | 17 PLATE AS | 1 | |
| 9X2032 | NUT-WELD (M4X0.7-THD) | 4 | |
| 8X2779 | BOSS (M4X0.7X13-MM) | 4 | |
| 2636416 | 18 FILM-SWITCH PANEL (SWITCH PANEL) | 1 | |
| 2524503 | 19 CONTROL GP-UNPROGRAMMED (CATERPILLAR MONITORING SYSTEM) | 1 | |
| 1005568 | 20 BEZEL | 1 | |
| 1042091 | 21 SCREW-FLAT HEAD (6-20X0.5-IN) | 4 | |
| 1071964 | 22 SCREW-PAN HEAD (6-19X0.5-IN) | 8 | |
| 3360067 | 23 LAMP-LED (24-VOLT, WHITE) | 15 | |
| 4678535 | 24 SWITCH AS-START (KEY) | 1 | |
| 7T6799 | NUT-MOUNTING (1-32-THD) | 1 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 4 | |
| 4P8134 | 25 CLIP (LADDER) | 5 | |
| 7Y3173 | 26 SCREW-BUTTON HEAD (M4X0.7X12-MM) | 4 | |
| 7Y7256 | 27 SCREW-TRUSS HEAD (M4X0.7X35-MM) | 4 | |
| 8T4199 | 28 BOLT (M8X1.25X12-MM) | 2 | |
| 4222152 | 29 LOUVER AS-VENT | 2 | |
| 9W0335 | 30 LIGHTER AS-CIGAR (24-VOLT) | 1 | |
| 9X2042 | 31 SCREW-TRUSS HEAD (M6X1X12-MM) | 12 |
