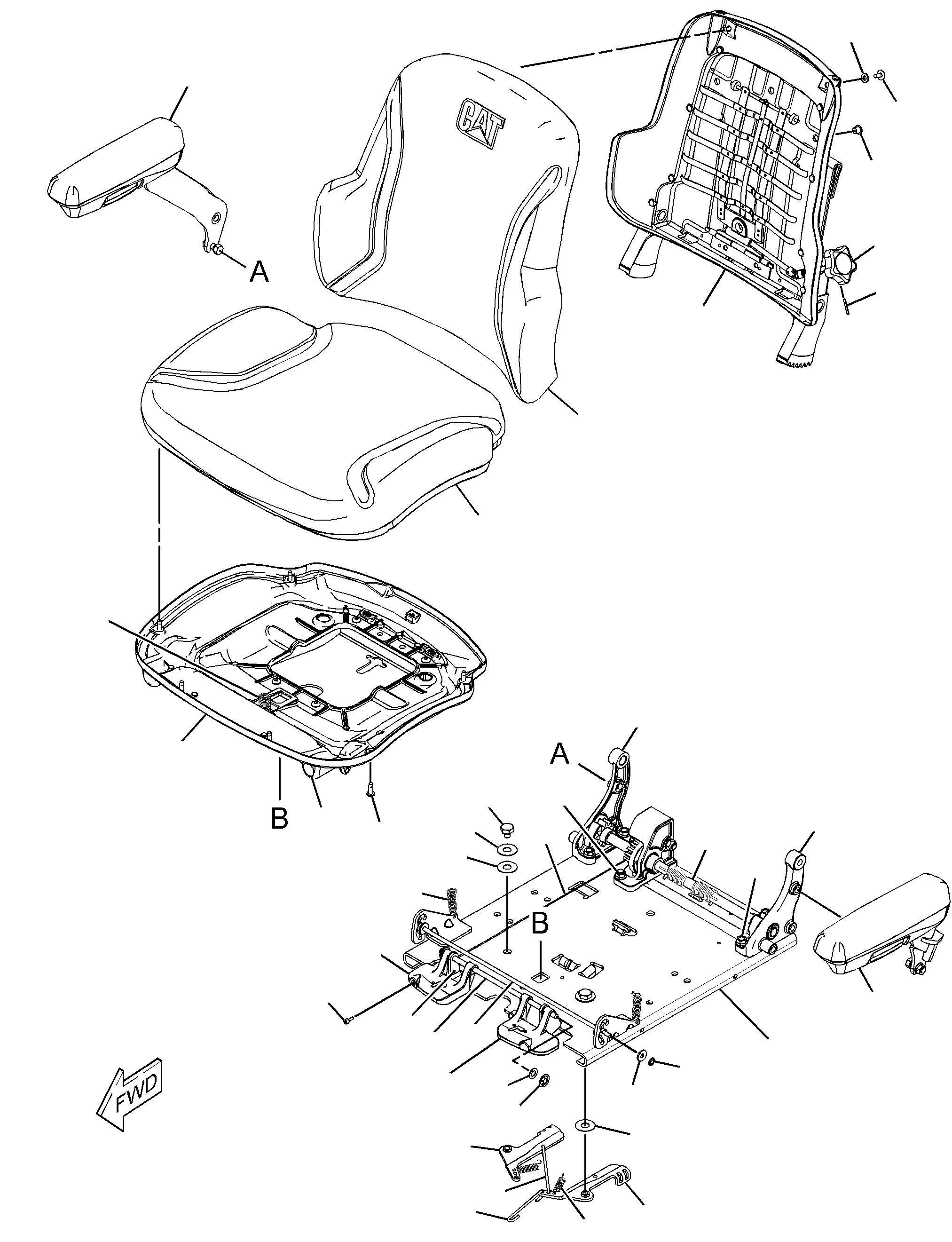

360-3136 SEAT GP -CLOTHS/N DBB1-UP

Group No: 360-3136 · Commonality
Part NumberPart NameQty
4V82561 SPRING2
13203382 WASHER-PLASTIC (13X31.7X0.8-MM THK)4
14312883 LOCKNUT-FLANGE (3/8-16-THD)8
29213014 ARMREST GP (LH)1
16448835 KNOB-LUMBAR1
17112306 SCREW-BUTTON HEAD (3/8-16X1-IN)8
29213027 ARMREST GP (RH)1
21825298 PLUG3
24928449 WASHER (12.7X31.7X1-MM THK)2
262076710 BRACKET AS (LH)1
314516211 BRACKET AS (RH)1
262077912 LATCH (LH)1
262078013 LATCH (RH)1
262078114 ROD1
262078515 LEVER (RH)1
262078616 BOLT-SPECIAL2
262078717 ROD1
267515918 SPRING1
277810319 PLUG1
292640220 PAN GP-BACKREST (LUMBAR)1
293291521 LEVER (LH)1
293937922 ROD1
293938023 ROD1
293966524 SPRING2
294713925 PAN GP-SEAT1
5C7261NUT (M8X1.25-THD)6
8T4224WASHER-HARD (8.8X16X2-MM THK)6
1272170SCREW-TRUSS HEAD (M8X1.25X20-MM)6
295647226 WASHER (7X19X2-MM THK)4
319416827 SCREW-PAN HEAD (1/4-15X0.5-IN)6
355301830 SHAFT AS1
357515631 CUSHION AS (SEAT)1
357516832 CUSHION AS-BACK1
369900433 CABLE AS1
5P053734 WASHER-HARD (7.2X14.5X2-MM THK)2
5T748635 RETAINER-SPRING2
5V149636 RETAINER2
6V896937 SCREW-BUTTON HEAD (1/4-20X0.5-IN)2
7Y046838 PIN-SPRING2
8T756639 PIN-SPRING1
9F597540 BOLT (5/16-18X0.75-IN)1
9T524141 WASHER (9.53X18X1-MM THK)4
355301642 PLATE AS1
