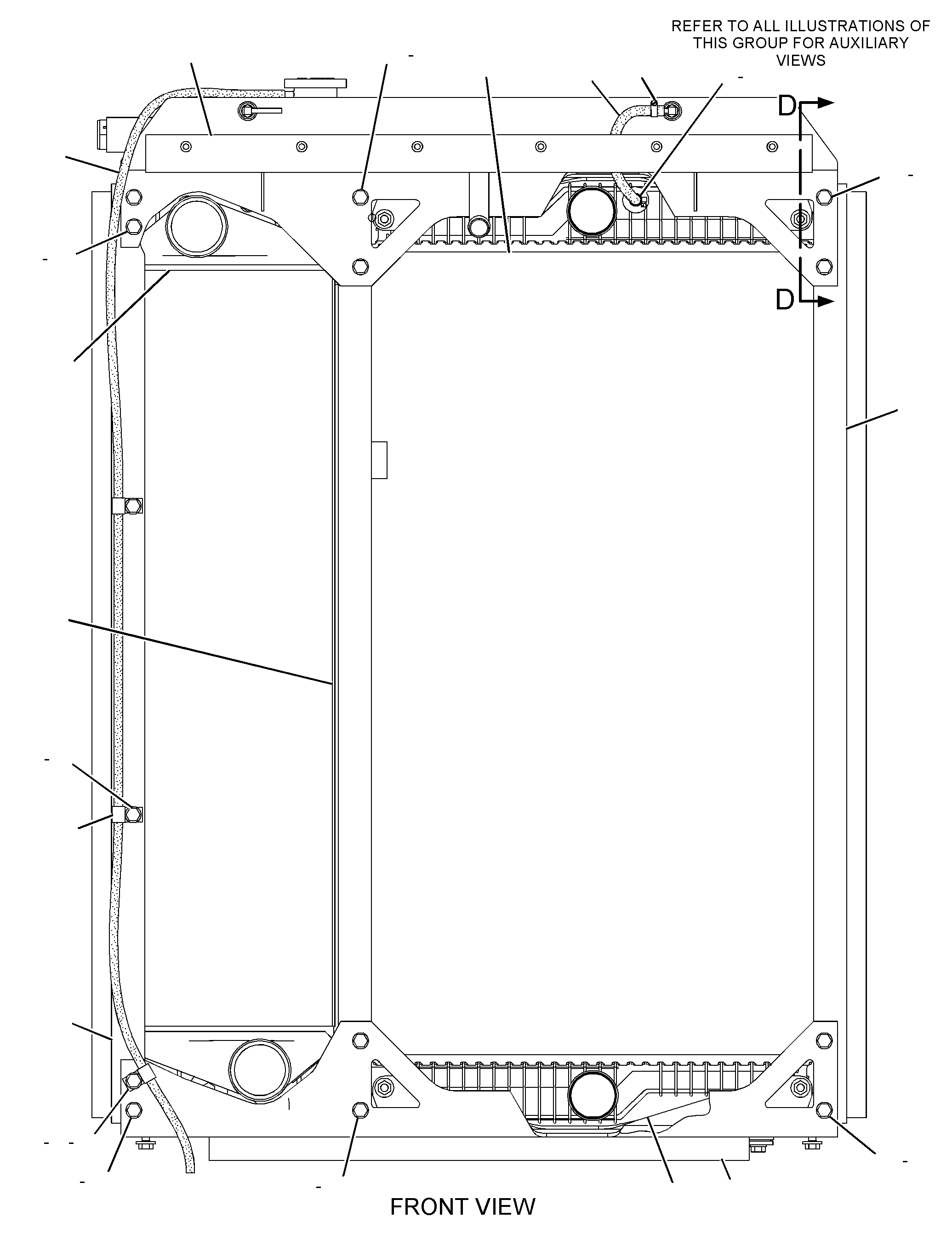

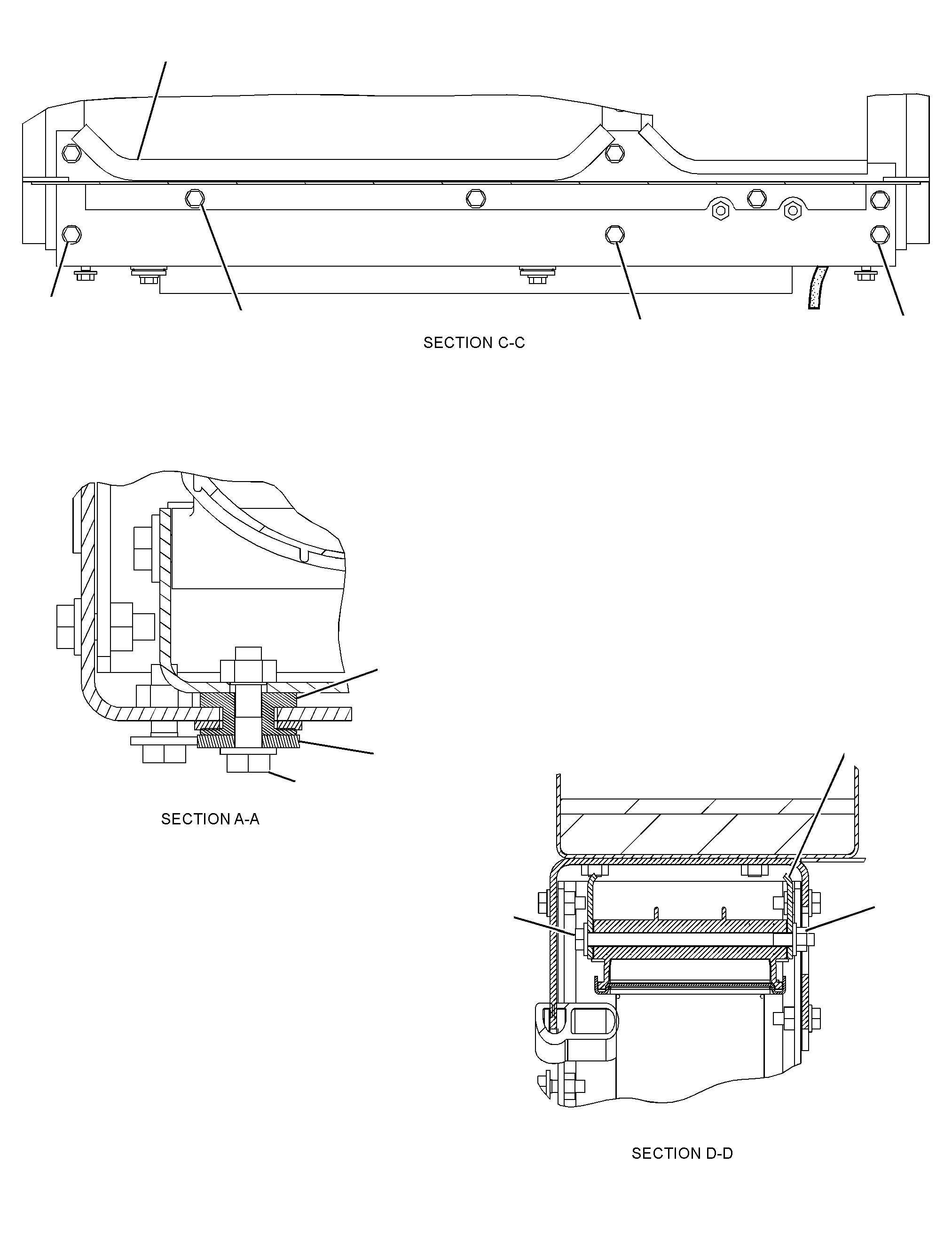

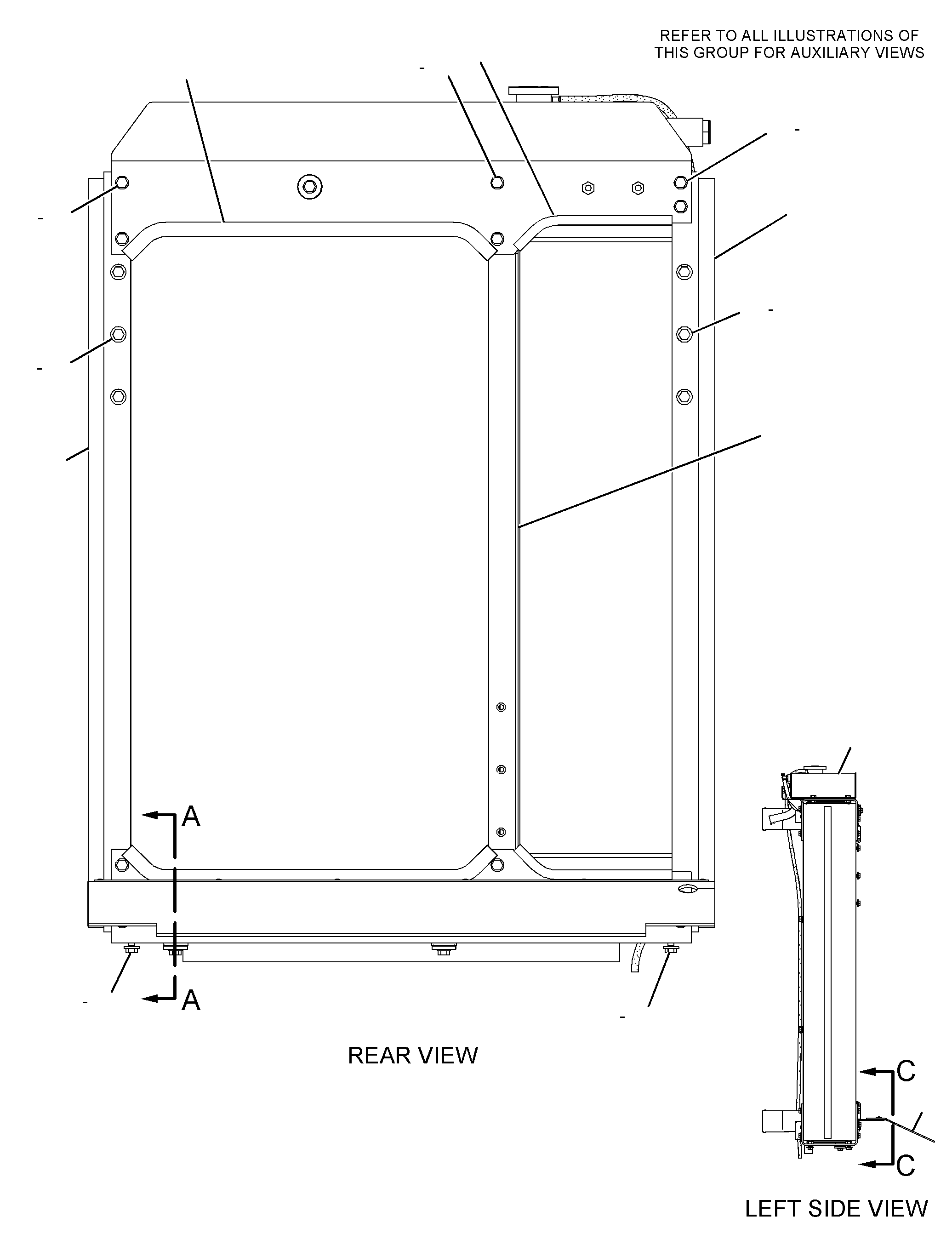

233-8449 RADIATOR GPS/N DBZ1-UP

Group No: 233-8449
Part NumberPart NameQty
1P42781 CLAMP-HOSE2
1P93282 FITTING1
23736763 TANK GP-COOLANT1
23756824 CHANNEL AS1
8T3490NUT-WELD (M10X1.5-THD)13
23756875 PLATE AS2
8T3490NUT-WELD (M10X1.5-THD)2
23756896 BAFFLE AS-RADIATOR1
7D8635RIVET6
2007925STRIP1
23804037 CHANNEL AS2
8T3490NUT-WELD (M10X1.5-THD)11
23804058 CHANNEL AS1
1F0750NUT-WELD (3/8-16-THD)6
8T1739WASHER-HARD (21X40X3.5-MM THK)1
8T3490NUT-WELD (M10X1.5-THD)6
23804069 CHANNEL AS1
8T1739WASHER-HARD (21X40X3.5-MM THK)2
8T3490NUT-WELD (M10X1.5-THD)9
239358310 AFTERCOOLER GP-AIR1
256531111 CORE AS-RADIATOR1
033824812 CLIP (LOOP)3
164441313 MOUNT3
7X254614 BOLT (M10X1.5X180-MM)4
7X772915 WASHER (11X25X3-MM THK)18
8T412116 WASHER-HARD (11X21X2.5-MM THK)32
8T413317 NUT (M10X1.5-THD)4
8T413718 BOLT (M10X1.5X20-MM)5
8T418619 BOLT (M10X1.5X40-MM)3
8T419520 BOLT (M10X1.5X30-MM)34
9L878121 WASHER (0.406X1.5X0.188-IN THK)3
5P644222 HOSE (21-CM)
8C368123 HOSE-DRAIN (161-CM)
5P596224 SEAL (2.4-M)
5P564325 SEAL (1-M)
3E669726 SEAL (54-CM)
147235527 SEAL (64-CM EACH)
