System And Components

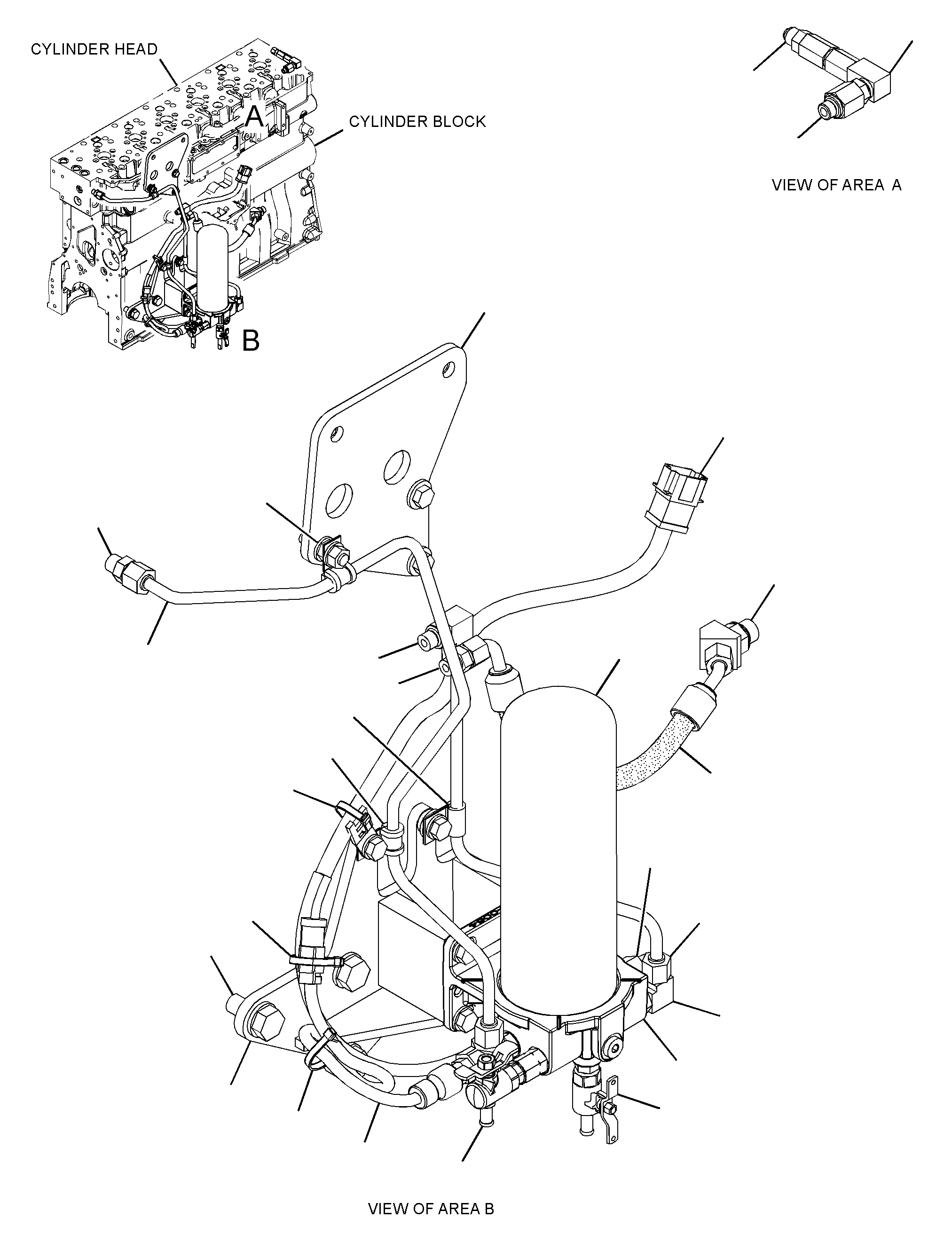

228-4477 LINES GP-FUEL -FILTERS/N TXD1-UP; THX1-UP
Group No: 228-4477
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE (PLASTIC) | 3 | |
| 0839527 | 2 SPACER (13X20X1.5-MM THK) | 1 | |
| 3866187 | 3 CONNECTOR AS | 1 | |
| 1087507 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3526499 | 4 TEE AS (ORFS) | 1 | |
| 1266872 | TEE | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 1833399 | 5 CONNECTOR AS (FACE SEAL) | 2 | |
| 6V8636 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 2501424 | 6 ELBOW AS (90-DEG) | 2 | |
| 6V8724 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3893708 | 7 PLUG AS (HIGH TEMPERATURE) | 2 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3603679 | PLUG-CONNECTOR (9/16-18-THD) | 1 | |
| 3944310 | 8 TUBE AS | 1 | |
| 1998037 | 9 PLATE AS | 1 | |
| 2051306 | 10 REGULATOR GP-FUEL PRESSURE | 1 | |
| 2069392 | 11 HOSE AS | 1 | |
| 2130064 | 12 BASE AS (FUEL) | 1 | |
| 9S4167 | STUD-HOLLOW (1-14X1.47-IN) | 1 | |
| 2331752 | 13 TUBE AS | 1 | |
| 1946725 | 14 SENSOR GP-PRESSURE (FUEL) | 1 | |
| 2580883 | 15 SWITCH GP-PRESSURE (FUEL) | 1 | |
| 2604861 | 16 HARNESS AS-WIRING (FUEL PRESSURE) | 1 | |
| 2609235 | 17 VALVE AS-BALL (FUEL DRAIN) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2609233 | VALVE-BALL | 1 | |
| 2609236 | 18 VALVE AS-BALL (OUTLET) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2609234 | VALVE-SHUTOFF | 1 | |
| 3071902 | 19 BRACKET AS | 1 | |
| 1305300 | 20 CLIP | 1 | |
| 3196224 | 21 ELBOW AS | 1 | |
| 6V9876 | ELBOW | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 1R0762 | 22 FILTER-FUEL (ADVANCED EFFICIENCY)(SECONDARY) | 1 | |
| 3139614 | 23 ADAPTER AS | 1 | |
| 2R6806 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3E4353 | 24 WASHER-HARD (11X25X3-MM THK) | 3 | |
| 4P7581 | 25 CLIP (LADDER) | 1 | |
| 5P9297 | 26 CLIP (LOOP) | 1 | |
| 2120431 | 27 STUD (M10X1.5X46-MM) | 1 | |
| 3388439 | 28 CLIP | 2 | |
| 6V4248 | 29 BOLT (M10X1.5X25-MM) | 7 | |
| 6V5839 | 30 WASHER (11X21X2.5-MM THK) | 6 | |
| 6V5844 | 31 BOLT (M16X2X35-MM) | 3 | |
| 6V6317 | 32 BOLT (M10X1.5X20-MM) | 1 | |
| 3574605 | 33 ADAPTER AS | 1 | |
| 8T0151 | ADAPTER | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3295451 | 34 ADAPTER AS | 1 | |
| 9X0261 | ADAPTER | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 9X8268 | 35 WASHER (17.5X30X3.5-MM THK) | 3 | |
| 8T4133 | 38 NUT (M10X1.5-THD) | 1 | |
| 8T4121 | 39 WASHER-HARD (11X21X2.5-MM THK) | 2 |
