System And Components

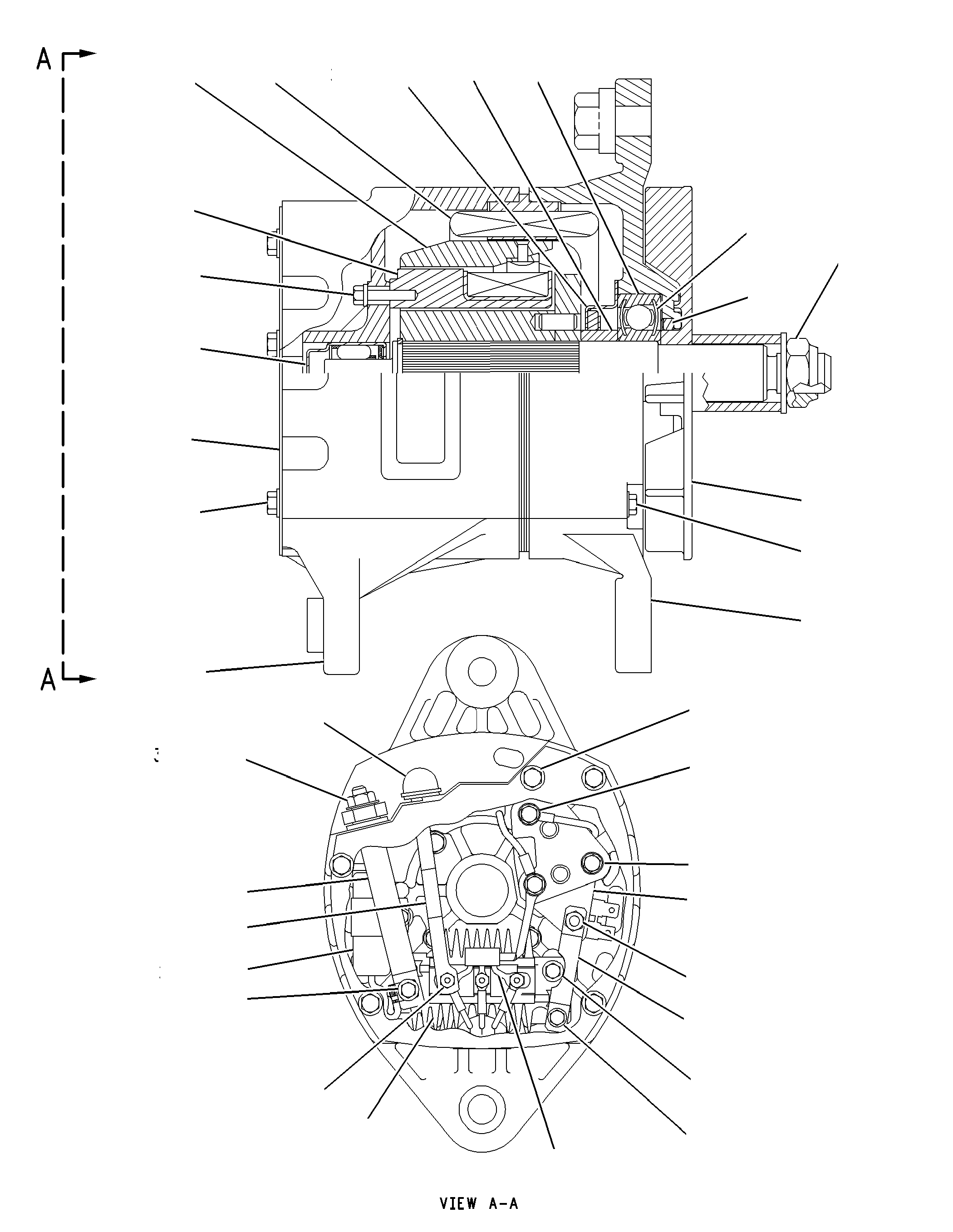

6N-9294 ALTERNATOR GP-CHARGINGS/N DBZ1-UP
Group No: 6N-9294
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7N9024 | 1 BOLT (10-24X2.5-IN) | 4 | |
| 1872034 | 2 NUT-FLANGE (5/8-18-THD) | 1 | |
| 3E5454 | 4 FAN-ALTERNATOR (11-BLADE) | 1 | |
| 7N7810 | 5 FRAME AS-DRIVE END | 1 | |
| 7N7805 | 6 HOUSING | 1 | |
| 6V2202 | 7 BALL BEARING | 1 | |
| 9S2437 | 8 SCREW-TAPPING (10-24X19.05-MM) | 3 | |
| 7N7809 | 9 PLATE | 1 | |
| 5P6920 | 10 BEARING-ROLLER | 1 | |
| 0309612 | 11 SCREW-FORMING (10-24X0.5-IN) | 5 | |
| 7N7806 | 12 COIL AS-FIELD | 1 | |
| 7N7800 | 13 ROTOR AS | 1 | |
| 7N7804 | 14 STATOR AS | 1 | |
| 9L2137 | 15 RETAINER AS | 1 | |
| 7X3353 | 16 SCREW-HEX HEAD (10X24X19.05-MM) | 4 | |
| 7N7795 | 17 COLLAR | 1 | |
| 9S2544 | 18 SCREW-HEX HEAD (8-32X11.13-MM) | 2 | |
| 9L2140 | 19 PLATE | 1 | |
| 9L2139 | 20 WASHER-FELT (1.31X1.68X0.125-IN THK) | 1 | |
| 6V8377 | 21 NUT (8-32-THD) | 4 | |
| 8T0328 | 22 WASHER-HARD (5.5X10X1-MM THK) | 6 | |
| 6N1872 | 23 SCREW AS (8-32X1.25-IN) | 2 | |
| 9B7233 | 24 LOCKWASHER | 6 | |
| 8F1434 | 25 LOCKWASHER | 4 | |
| 7N9023 | 26 SCREW AS (8-32X26.9-MM) | 2 | |
| 3T6354 | 27 REGULATOR AS-VOLTAGE (24-VOLT)(ALTERNATOR) | 1 | |
| 1H3244 | 28 LOCKWASHER | 1 | |
| 7N7811 | 29 CONNECTOR | 1 | |
| 6V8187 | 30 NUT (1/4-28-THD) | 1 | |
| 1129119 | 31 DIODE AS-ALTERNATOR | 1 | |
| 8T4205 | 32 WASHER-HARD (7.2X14.5X2-MM THK) | 1 | |
| 2064202 | 33 RECTIFIER AS | 1 | |
| 7N9021 | 34 SCREW AS (8-32X1.34-IN) | 1 | |
| 7N7796 | 35 BUSHING-TERMINAL | 1 | |
| 7N7802 | 36 CAPACITOR AS | 1 | |
| 7N7801 | 37 CONNECTOR | 1 | |
| 7N7798 | 38 CONNECTOR | 1 | |
| 9L6770 | 39 CAP-DUST | 1 | |
| 7N7807 | KIT-OUTPUT TERMINAL (ALTERNATOR) | 1 | |
| 7N7808 | KIT-RELAY TERMINAL (ALTERNATOR) | 1 |
