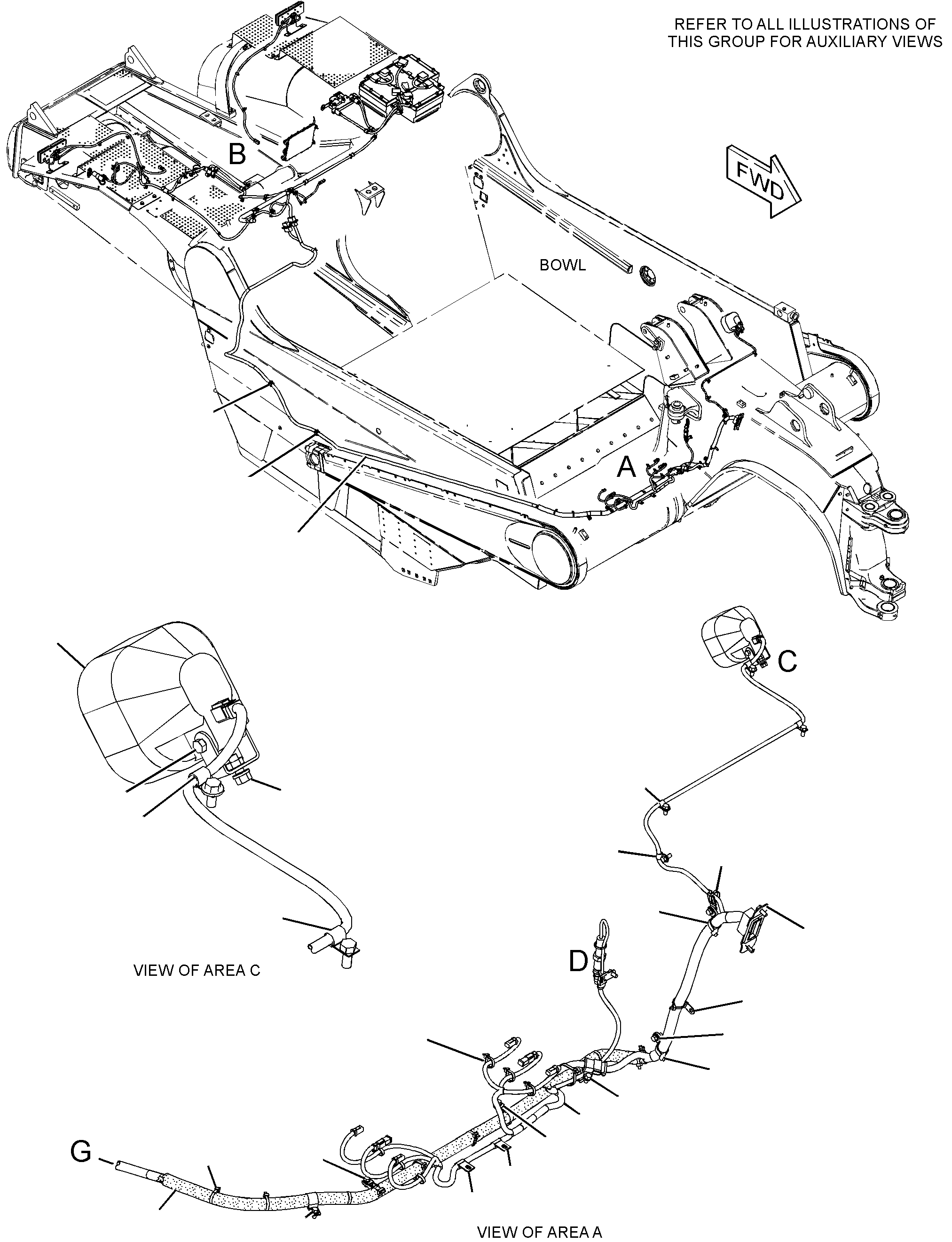

228-6904 WIRING GP-SCRAPERS/N DBZ425-937

Group No: 228-6904

Part Number	Part Name	Qty
3S2093	1 STRAP-CABLE	7
7K1181	2 STRAP-CABLE	16
8X9392	3 TUBE	1
9X0435	4 ADAPTER	1
1118314	5 BRACKET AS	1
1842420	6 ADAPTER AS	1
3E7401	ADAPTER	1
6V8397	SEAL-O-RING	1
1864095	7 SENSOR GP-PRESSURE (AIR)	1
1922887	8 GUARD	1
1975840	9 CONTROL & MTG GP-POWER TRAIN	1
2042281	10 STRAP-CABLE	5
2048000	11 MOUNTING-CABLE TIE	5
2055621	12 LAMP GP-SIGNAL (TURN SIGNAL, RH)	1
2055622	13 LAMP GP-SIGNAL (TURN SIGNAL, LH)	1
2063763	14 HARNESS AS-LIGHTING (TURN SIGNAL, RH)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	4
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	5
8T8737	PLUG-SEAL	1
1028804	KIT-RECEPTACLE (4-PIN)	1
1552260	KIT-CONNECTING PLUG (3-PIN)	2
1148843	SLEEVE-PLASTIC (60-CM)
1257875	TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM)
2066606	15 HARNESS AS-LIGHTING (TURN SIGNAL, LH)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	4
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	5
8T8737	PLUG-SEAL	1
1028804	KIT-RECEPTACLE (4-PIN)	1
1552260	KIT-CONNECTING PLUG (3-PIN)	2
1148843	SLEEVE-PLASTIC (60-CM)
1257875	TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM)
2286899	16 HARNESS AS-CHASSIS (BOWL FLOODLIGHT)	1
8T8737	PLUG-SEAL	54
9X3401	PIN-CONNECTOR (16-GA TO 18-GA)	44
9X3402	SOCKET-CONNECTOR (16-GA TO 18-GA)	26
1863736	SOCKET-CONNECTOR (16-GA TO 18-GA)	2
1552270	KIT-CONNECTING PLUG (2-PIN)	1
1552255	KIT-CONNECTING PLUG (12-PIN)	1
7X6222	PLUG AS-CONNECTOR (24-PIN)	2
3E4367	RING-RETAINING	1
3E8558	BOLT (M5X0.8X39.37-MM)	1
9X3265	SEAL-CONNECTOR (24-PIN)	2
9X0145	RECEPTACLE AS-CONNECTOR (24-PIN)	1
9X1343	RECEPTACLE AS-CONNECTOR (40-PIN)	1
1148843	SLEEVE-PLASTIC (20-CM)
1148844	SLEEVE-PLASTIC (20-CM)
1148845	SLEEVE-PLASTIC (40-CM)
2356162	17 PLATE	1
2388665	18 SWITCH AS-PRESSURE (PARKING BRAKE AIR)	1
1028803	KIT-RECEPTACLE (3-PIN)	1
1863735	PIN-CONNECTOR (16-GA TO 18-GA)	3
9X1813	SLEEVE (15-CM)
2388667	19 SWITCH AS-PRESSURE (EJECTOR KICKOUT)	1
1028803	KIT-RECEPTACLE (3-PIN)	1
1863735	PIN-CONNECTOR (16-GA TO 18-GA)	3
9X1813	SLEEVE (15-CM)
2480901	20 BATTERY & WIRING GP	1
2796722	21 HARNESS AS-CHASSIS	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	10
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	10
8T8737	PLUG-SEAL	17
9X3401	PIN-CONNECTOR (16-GA TO 18-GA)	6
9X3402	SOCKET-CONNECTOR (16-GA TO 18-GA)	7
1552255	KIT-CONNECTING PLUG (12-PIN)	1
1552260	KIT-CONNECTING PLUG (3-PIN)	2
1552270	KIT-CONNECTING PLUG (2-PIN)	3
1028802	KIT-RECEPTACLE (2-PIN)	1
9X0145	RECEPTACLE AS-CONNECTOR (24-PIN)	1
1148843	SLEEVE-PLASTIC (120-CM)
1148844	SLEEVE-PLASTIC (20-CM)
1257875	TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM)
2812244	22 HARNESS AS-VALVE	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	11
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	14
8T8737	PLUG-SEAL	6
1552260	KIT-CONNECTING PLUG (3-PIN)	1
1552270	KIT-CONNECTING PLUG (2-PIN)	6
1028802	KIT-RECEPTACLE (2-PIN)	2
1028801	KIT-RECEPTACLE (12-PIN)	1
1148843	SLEEVE-PLASTIC (180-CM)
1148844	SLEEVE-PLASTIC (20-CM)
1257875	TUBE-HEAT SHRINK (7.44-MM DIA)(15-CM)
1241479	23 CLIP (LOOP)	2
1305300	24 CLIP	5
1488413	25 REDUCER AS (ORFS)	1
6V8934	ADAPTER	1
4J5477	SEAL-O-RING	1
1532073	26 LAMP GP-FLOOD (24-VOLT)(BOWL)	1
2M3433	27 GROMMET	1
3K0360	28 SEAL-O-RING	1
4D7794	29 CLIP	10
4P7581	30 CLIP (LADDER)	2
5M3062	31 BOLT (3/8-16X0.75-IN)	1
5P1075	32 WASHER-HARD (10.2X22.5X3-MM THK)	14
5P2228	33 BOLT (1/2-13X1-IN)	3
5P2955	34 BOLT (5/16-18X2.5-IN)	1
5P6629	35 GROMMET	2
5P7854	36 CLIP (LOOP)	2
5S7379	37 BOLT (3/8-16X0.875-IN)	24
6D4246	38 CLIP (LOOP)	1
6K4934	39 CLIP (SLOT)	3
6K4935	40 CLIP (TAB)	3
6V5048	41 SEAL-O-RING	1
6V8189	42 NUT (5/16-18-THD)	1
6V8367	43 LOCKWASHER	1
6V8801	44 NUT (3/8-16-THD)	2
6V9168	45 NUT (11/16-16-THD)	1
7C4354	46 CLIP	2
8M2770	47 CLIP (LOOP)	4
8T4121	48 WASHER-HARD (11X21X2.5-MM THK)	2
8T4136	49 BOLT (M10X1.5X25-MM)	2
8T4223	50 WASHER-HARD (13.5X25.5X3-MM THK)	3
8T4224	51 WASHER-HARD (8.8X16X2-MM THK)	2
8T4896	52 WASHER-HARD (10.2X18.5X2.5-MM THK)	13
8T9405	53 BOLT-SOCKET HEAD (M4X0.7X16-MM)	8
