System And Components

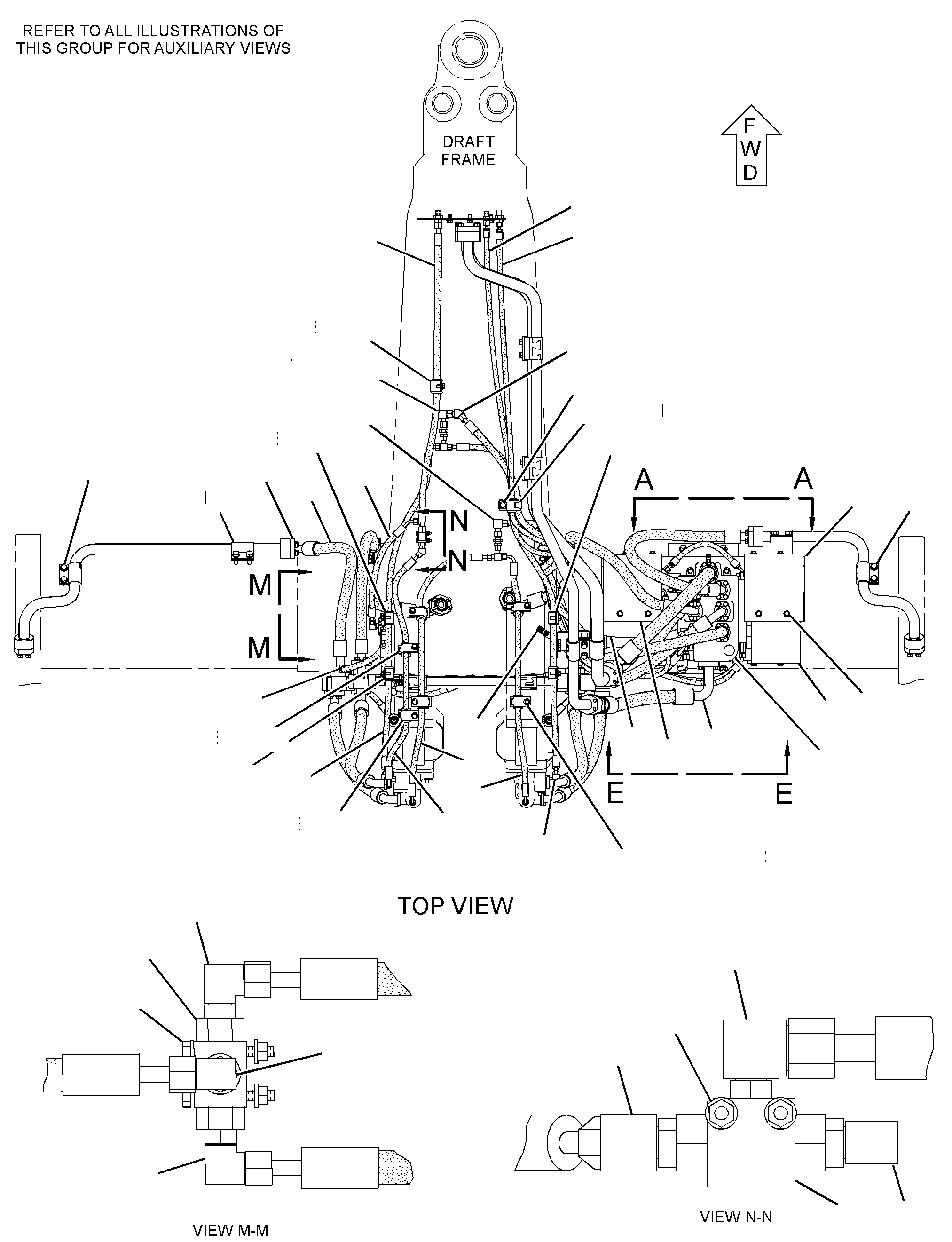

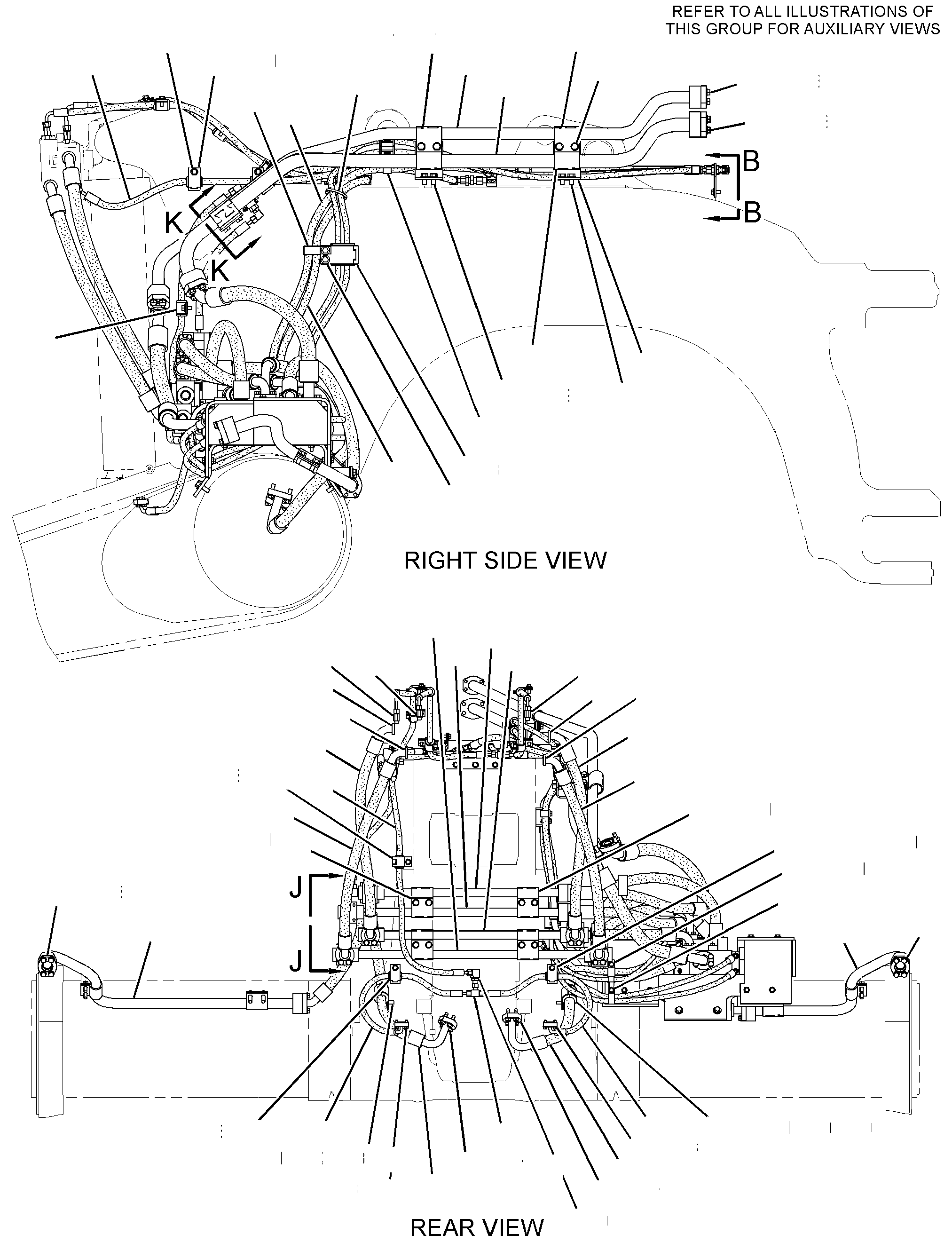

227-8298 LINES GP-DRAFT FRAMES/N DBZ677-UP
Group No: 227-8298
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6G2263 | 1 SPACER (10.5X19X28.5-MM THK) | 1 | |
| 7I4939 | 2 HOSE AS | 1 | |
| 7V8532 | 3 SPACER | 1 | |
| 8E3082 | 4 HOSE AS | 1 | |
| 8I3958 | 5 HOSE AS | 1 | |
| 8J6875 | 6 VALVE GP-SHUTTLE (PILOT SUPPLY) | 2 | |
| 8V1677 | 7 FLANGE | 1 | |
| 8W2344 | 8 HOSE AS | 1 | |
| 8W2345 | 9 HOSE AS | 1 | |
| 8W2346 | 10 HOSE AS | 1 | |
| 8W3489 | 11 HOSE AS | 1 | |
| 8W6298 | 12 HOSE AS | 1 | |
| 8X9630 | 13 HOSE AS | 1 | |
| 1233955 | 14 SNUBBER | 1 | |
| 1412105 | 15 ADAPTER | 1 | |
| 1469043 | 16 HOSE AS | 2 | |
| 1562656 | 17 VALVE GP-MAIN CONTROL (SCRAPER) | 1 | |
| 1649640 | 18 CONNECTOR AS | 1 | |
| 1452237 | CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 1872120 | 19 ELBOW AS | 1 | |
| 8C8408 | ELBOW | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 2291469 | 20 PLATE AS | 3 | |
| 2291565 | 21 HOSE AS | 1 | |
| 2291566 | 22 HOSE AS | 1 | |
| 2292983 | 23 TUBE AS | 1 | |
| 2292985 | 24 TUBE AS | 1 | |
| 2292988 | 25 HOSE AS | 1 | |
| 2296408 | 26 HOSE AS | 1 | |
| 2296421 | 27 HOSE AS | 1 | |
| 2330084 | 28 TUBE AS | 1 | |
| 2330085 | 29 TUBE AS | 1 | |
| 2330086 | 30 TUBE AS | 1 | |
| 2330087 | 31 TUBE AS | 1 | |
| 2361280 | 32 PLATE | 1 | |
| 2362326 | 33 HOSE AS | 2 | |
| 2365541 | 34 PLATE AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 11 | |
| 2370354 | 35 TUBE AS | 1 | |
| 2370355 | 36 TUBE AS | 1 | |
| 3255977 | 37 HOSE AS | 1 | |
| 3255975 | 38 HOSE AS | 1 | |
| 2370367 | 39 HOSE AS | 1 | |
| 2370368 | 40 HOSE AS | 1 | |
| 2370369 | 41 HOSE AS | 1 | |
| 2370370 | 42 HOSE AS | 1 | |
| 2370371 | 43 HOSE AS | 1 | |
| 2370372 | 44 HOSE AS | 1 | |
| 2405973 | 45 HOSE AS | 1 | |
| 2405974 | 46 HOSE AS | 1 | |
| 2406026 | 47 HOSE AS | 1 | |
| 2479974 | 48 HOSE AS | 1 | |
| 2480855 | 49 HOSE AS | 1 | |
| 2480856 | 50 PLATE AS | 1 | |
| 2480857 | 51 PLATE AS | 1 | |
| 2480858 | 52 PLATE AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 2 | |
| 2480859 | 53 PLATE AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 4 | |
| 1106349 | 54 FITTING AS (QUICK DISCONNECT) | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 1436363 | 55 HOSE AS | 1 | |
| 1488305 | 56 ADAPTER AS | 1 | |
| 5P9617 | ADAPTER | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 1488316 | 57 CONNECTOR AS | 1 | |
| 6V8647 | CONNECTOR | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 1488336 | 58 CONNECTOR AS | 2 | |
| 6V8636 | CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488338 | 59 CONNECTOR AS | 3 | |
| 8T0075 | CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488353 | 60 ELBOW AS | 3 | |
| 6V9001 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488365 | 61 ELBOW AS | 2 | |
| 8T6876 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488367 | 62 ELBOW AS | 2 | |
| 6V9850 | ELBOW | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488370 | 63 ELBOW AS | 2 | |
| 6V9851 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488374 | 64 ELBOW AS | 1 | |
| 6V8723 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488377 | 65 ELBOW AS | 1 | |
| 6V8980 | ELBOW | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 1488378 | 66 ELBOW AS | 4 | |
| 6V8724 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488434 | 67 TEE AS | 3 | |
| 6V9843 | TEE | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 1488457 | 68 UNION AS (STRAIGHT) | 1 | |
| 6V8995 | UNION (STRAIGHT) | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 1495452 | 69 UNION AS (STRAIGHT) | 1 | |
| 6V8994 | UNION (STRAIGHT) | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 1504043 | 70 CONNECTOR AS | 1 | |
| 6V9873 | CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1504052 | 71 UNION AS | 1 | |
| 6V8993 | UNION | 1 | |
| 4J5477 | SEAL-O-RING | 2 | |
| 1536241 | 72 ELBOW AS | 1 | |
| 8C8989 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1649869 | 73 CONNECTOR AS | 1 | |
| 9X2297 | CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1853365 | 74 UNION AS | 2 | |
| 8T0129 | UNION | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1H2415 | 75 BOLT (0.5-13X2.5-IN) | 6 | |
| 1P3703 | 76 SEAL-RECTANGULAR | 1 | |
| 1P3704 | 77 SEAL-RECTANGULAR | 1 | |
| 1P4574 | 78 FLANGE-HALF | 4 | |
| 1P4577 | 79 FLANGE-HALF | 4 | |
| 1P4578 | 80 FLANGE-HALF | 34 | |
| 1P4579 | 81 FLANGE-HALF | 4 | |
| 2P1279 | 82 LOCKNUT (9/16-18-THD) | 1 | |
| 3B1915 | 83 BOLT (3/8-16X1.375-IN) | 8 | |
| 3F9559 | 84 LOCKWASHER | 2 | |
| 3G8054 | 85 CLIP (TAB) | 2 | |
| 3G8057 | 86 CLIP (SLOT) | 2 | |
| 3V1005 | 87 CLAMP-HALF | 6 | |
| 4J0520 | 88 SEAL-O-RING | 12 | |
| 4J0522 | 89 SEAL-O-RING | 16 | |
| 4J0524 | 90 SEAL-O-RING | 1 | |
| 4J5140 | 91 SEAL-O-RING | 2 | |
| 4L6454 | 92 BOLT (3/8-16X1-IN) | 5 | |
| 4L9337 | 93 BOLT (3/8-16X1.5-IN) | 8 | |
| 4M6425 | 94 BOLT (5/16-18X1-IN) | 8 | |
| 5K1094 | 95 LOCKWASHER | 1 | |
| 5K5338 | 96 CLIP (LOOP) | 1 | |
| 5P1075 | 98 WASHER-HARD (10.2X22.5X3-MM THK) | 30 | |
| 5P1076 | 99 WASHER-HARD (13.5X30X4-MM THK) | 4 | |
| 5P2228 | 100 BOLT (1/2-13X1-IN) | 6 | |
| 6C3241 | 101 BOLT (1/2-13X1.5-IN) | 4 | |
| 5P6994 | 102 CLIP | 4 | |
| 5P7462 | 103 CLIP (SLOT) | 15 | |
| 5P7463 | 104 CLIP (TAB) | 15 | |
| 5P7464 | 105 CLIP (SLOT) | 1 | |
| 5P7465 | 106 CLIP (TAB) | 1 | |
| 5P7468 | 107 CLIP (SLOT) | 2 | |
| 5P7469 | 108 CLIP (TAB) | 2 | |
| 5P8444 | 109 GROMMET (37-MM ID) | 2 | |
| 5S7379 | 110 BOLT (3/8-16X0.875-IN) | 4 | |
| 6K8178 | 111 CLIP (LOOP) | 1 | |
| 6V0683 | 112 GROMMET | 15 | |
| 6V0974 | 113 GROMMET | 2 | |
| 6V7359 | 114 GROMMET (25-MM ID, 37-MM OD) | 1 | |
| 6V8185 | 115 NUT (1/4-20-THD) | 4 | |
| 6V8367 | 116 LOCKWASHER | 2 | |
| 6V9168 | 117 NUT (11/16-16-THD) | 2 | |
| 6V9169 | 118 NUT (13/16-16-THD) | 3 | |
| 7X0313 | 119 BOLT (7/16-14X2.75-IN) | 8 | |
| 7X0317 | 120 BOLT (7/16-14X3.75-IN) | 1 | |
| 8K2665 | 121 CLAMP-HALF | 14 | |
| 8K4691 | 122 CLAMP-HALF | 16 | |
| 8T2502 | 123 BOLT (3/8-16X1.125-IN) | 6 | |
| 8T4205 | 124 WASHER-HARD (7.2X14.5X2-MM THK) | 8 | |
| 8T4223 | 125 WASHER-HARD (13.5X25.5X3-MM THK) | 42 | |
| 8T4224 | 126 WASHER-HARD (8.8X16X2-MM THK) | 8 | |
| 8T4896 | 127 WASHER-HARD (10.2X18.5X2.5-MM THK) | 12 | |
| 8T5360 | 128 WASHER (12X22.5X2.5-MM THK) | 64 | |
| 8T7008 | 129 BOLT (3/8-16X3-IN) | 4 | |
| 8T8915 | 130 BOLT (3/8-16X3.25-IN) | 3 | |
| 8T8916 | 131 BOLT (7/16-14X1.5-IN) | 56 | |
| 8T8917 | 132 BOLT (1/2-13X1.25-IN) | 6 | |
| 8T8919 | 133 BOLT (1/2-13X1.75-IN) | 24 | |
| 8T9101 | 134 BOLT (3/8-16X2.75-IN) | 1 | |
| 8T9367 | 135 BOLT (1/4-20X2-IN) | 4 | |
| 8T9382 | 136 BOLT (7/16-14X1.25-IN) | 4 | |
| 9B7237 | 137 BOLT (3/8-16X1.25-IN) | 3 | |
| 7X0589 | 139 WASHER-HARD (12X28.5X5-MM THK) | 5 | |
| 5G3845 | 140 BOSS (12.8X25X50-MM THK) | 1 | |
| 7K1181 | 141 STRAP-CABLE | 1 | |
| 2A4639 | 142 BOLT (3/8-16X1.625-IN) | 4 | |
| 3J7354 | 143 SEAL-O-RING | 1 |
