System And Components

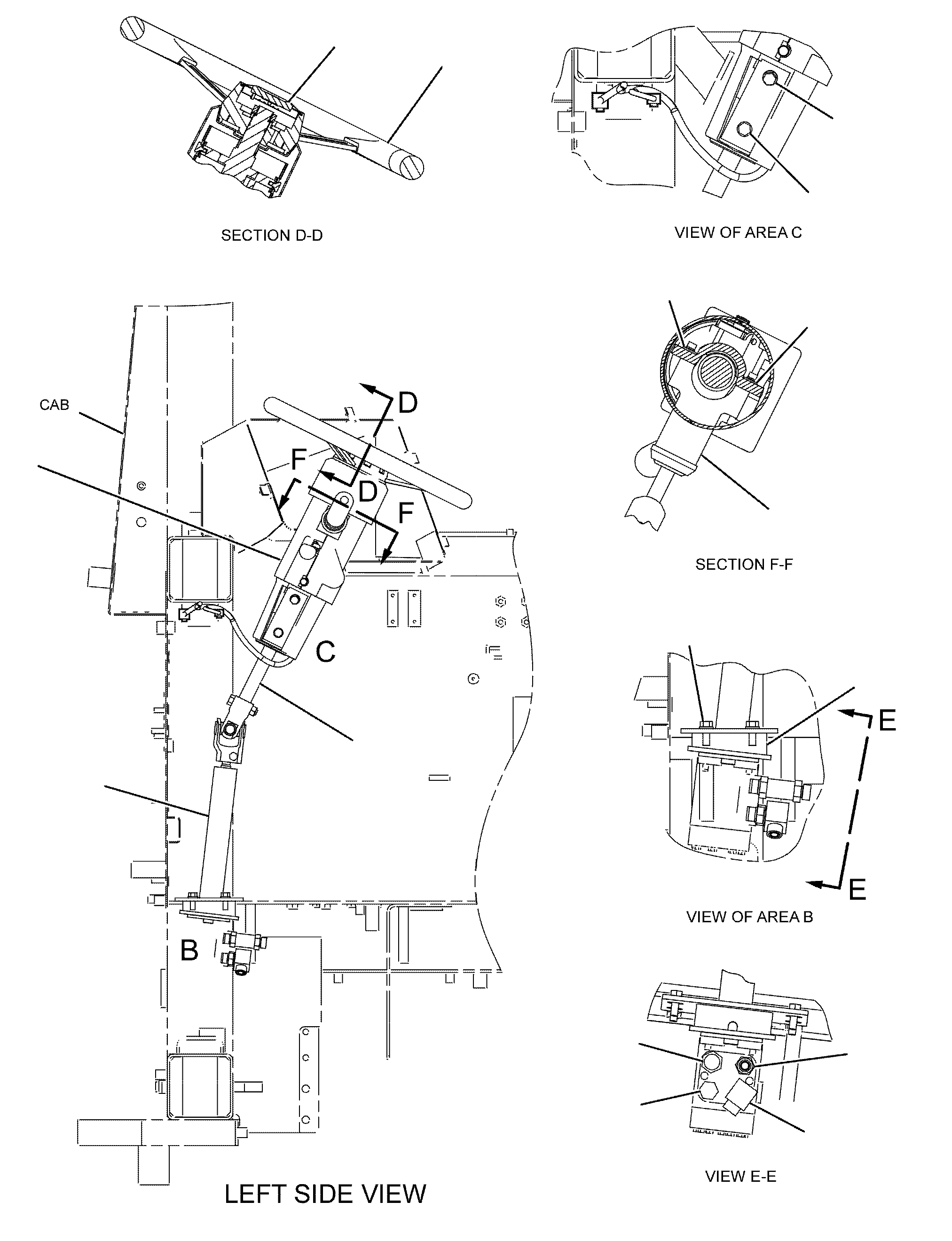

215-9152 CONTROL GP-STEERINGS/N DFJ1-311
Group No: 215-9152
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1411489 | 1 ADAPTER | 2 | |
| 1707141 | 2 PLATE AS | 1 | |
| 1712521 | 3 SHAFT AS | 1 | |
| 1716722 | 4 VALVE GP-CHECK (STEERING) | 1 | |
| 1998411 | 5 SWITCH GP-MULTIFUNCTION (TURN SIGNAL) | 1 | |
| 3E3365 | WEDGE-RECEPTACLE LOCK (2-PIN) | 1 | |
| 3E5180 | WEDGE-RECEPTACLE LOCK (12-PIN) | 1 | |
| 9G3695 | PLUG-SEAL | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 13 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 2017316 | 6 STEERING COLUMN GP-ADJUSTABLE | 1 | |
| 2211432 | 7 KIT-COVER (STEERING COLUMN) | 1 | |
| 2552742 | 8 STEERING WHEEL | 1 | |
| 2552749 | 9 PLUG | 1 | |
| 1488340 | 10 CONNECTOR AS | 1 | |
| 6V8639 | CONNECTOR | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488364 | 11 ELBOW AS | 1 | |
| 6V8625 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488411 | 12 PLUG AS | 1 | |
| 9S4185 | PLUG (3/4-16-THD) | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 3B4502 | 13 LOCKWASHER | 2 | |
| 4L6454 | 14 BOLT (3/8-16X1-IN) | 4 | |
| 2T3360 | 16 BUTTON AS-HORN | 1 | |
| 9X6615 | 17 BOLT (M5X0.8X30-MM) | 2 | |
| 7X3183 | 18 BOLT (3/8-24X1-IN) | 4 | |
| 8T0328 | 19 WASHER-HARD (5.5X10X1-MM THK) | 2 | |
| 8T4896 | 20 WASHER-HARD (10.2X18.5X2.5-MM THK) | 8 |
