System And Components

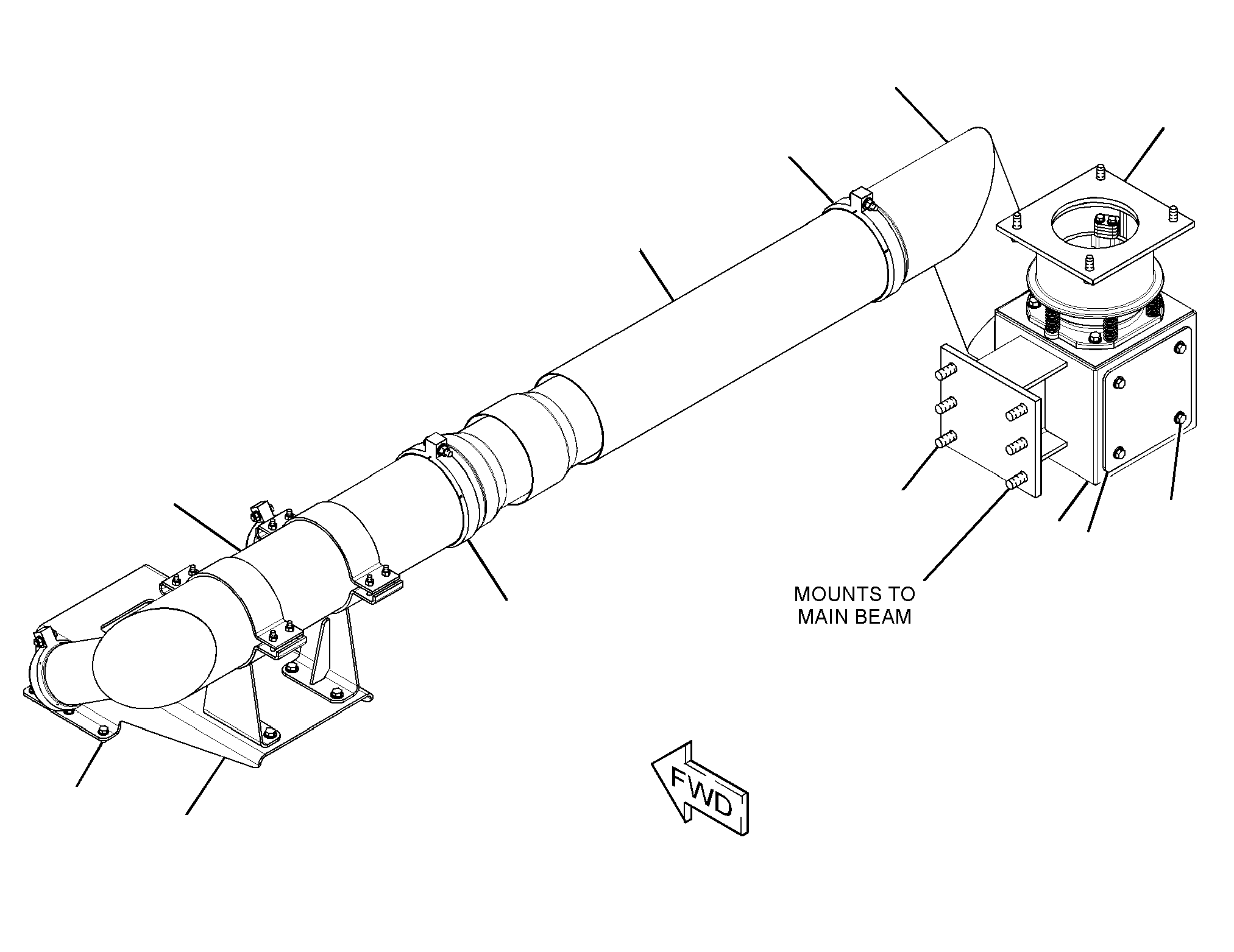

250-0793 EXHAUST AR-BODY -HEATEDS/N JRP1-UP
Group No: 250-0793 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2566757 | 1 PIPE GP-EXHAUST | 1 | |
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 4 | |
| 2566758 | BOX AS | 1 | |
| 2566764 | SUPPORT AS | 1 | |
| 2569395 | 2 MUFFLER GP | 1 | |
| 2569400 | 3 TUBE AS | 1 | |
| 2569457 | 4 BRACKET AS | 1 | |
| 2569735 | 5 PIPE GP-EXHAUST (HEATED BODY) | 1 | |
| 2763855 | 6 PLATE | 2 | |
| 2808510 | 7 TUBE AS | 1 | |
| 4N9330 | 8 CLAMP | 2 | |
| 7X2563 | 9 BOLT (M20X2.5X60-MM) | 6 | |
| 7X7729 | 10 WASHER (11X25X3-MM THK) | 6 | |
| 8T4123 | 11 WASHER (22X35X3.5-MM THK) | 6 | |
| 8T4136 | 12 BOLT (M10X1.5X25-MM) | 6 | |
| 6V3668 | 13 BOLT (M12X1.75X30-MM) | 12 | |
| 6V3823 | 14 BOLT (M12X1.75X60-MM) | 2 | |
| 5P8245 | 15 WASHER-HARD (13.5X25.5X3-MM THK) | 16 | |
| 6V8149 | 16 NUT (M12X1.75-THD) | 2 |
