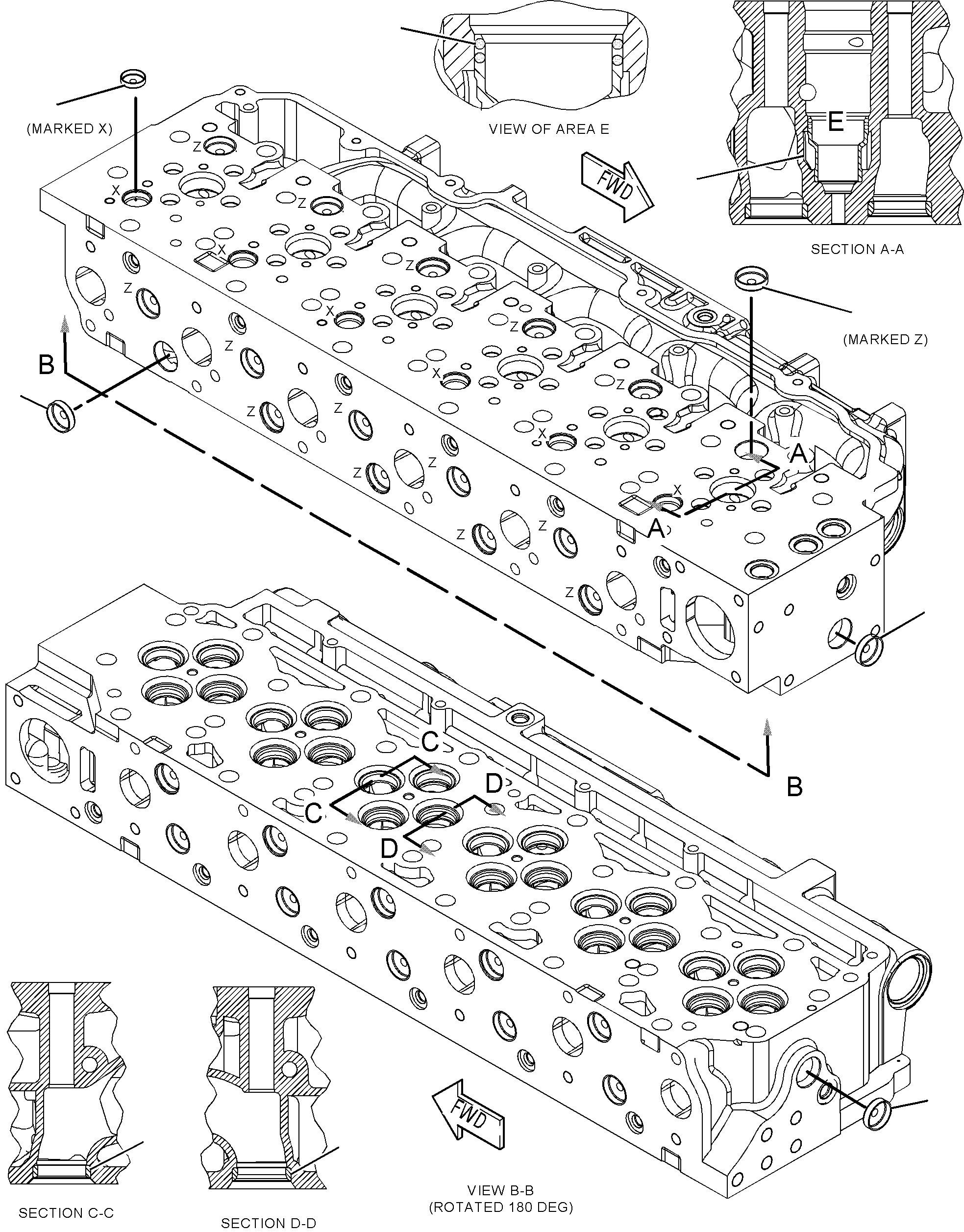

252-8438 CYLINDER HEAD ASS/N THY1-UP

Group No: 252-8438
Part NumberPart NameQty
6V76041 PLUG-CUP6
8M58602 PLUG-CUP18
21289173 INSERT-VALVE SEAT (EXHAUST)(STANDARD)12
2543947INSERT-VALVE SEAT (0.508-MM OS, EXHAUST)
3177210INSERT-VALVE SEAT (0.127-MM OS, EXHAUST)
3177211INSERT-VALVE SEAT (0.25-MM OS, EXHAUST)
22712004 SLEEVE-INJECTOR6
24183885 INSERT-VALVE SEAT (INLET)(STANDARD)12
2543946INSERT-VALVE SEAT (0.508-MM OS, INLET)
3177212INSERT-VALVE SEAT (0.127-MM OS, INLET)
3177213INSERT-VALVE SEAT (0.25-MM OS, INLET)
8C05637 SEAL-O-RING12
