System And Components

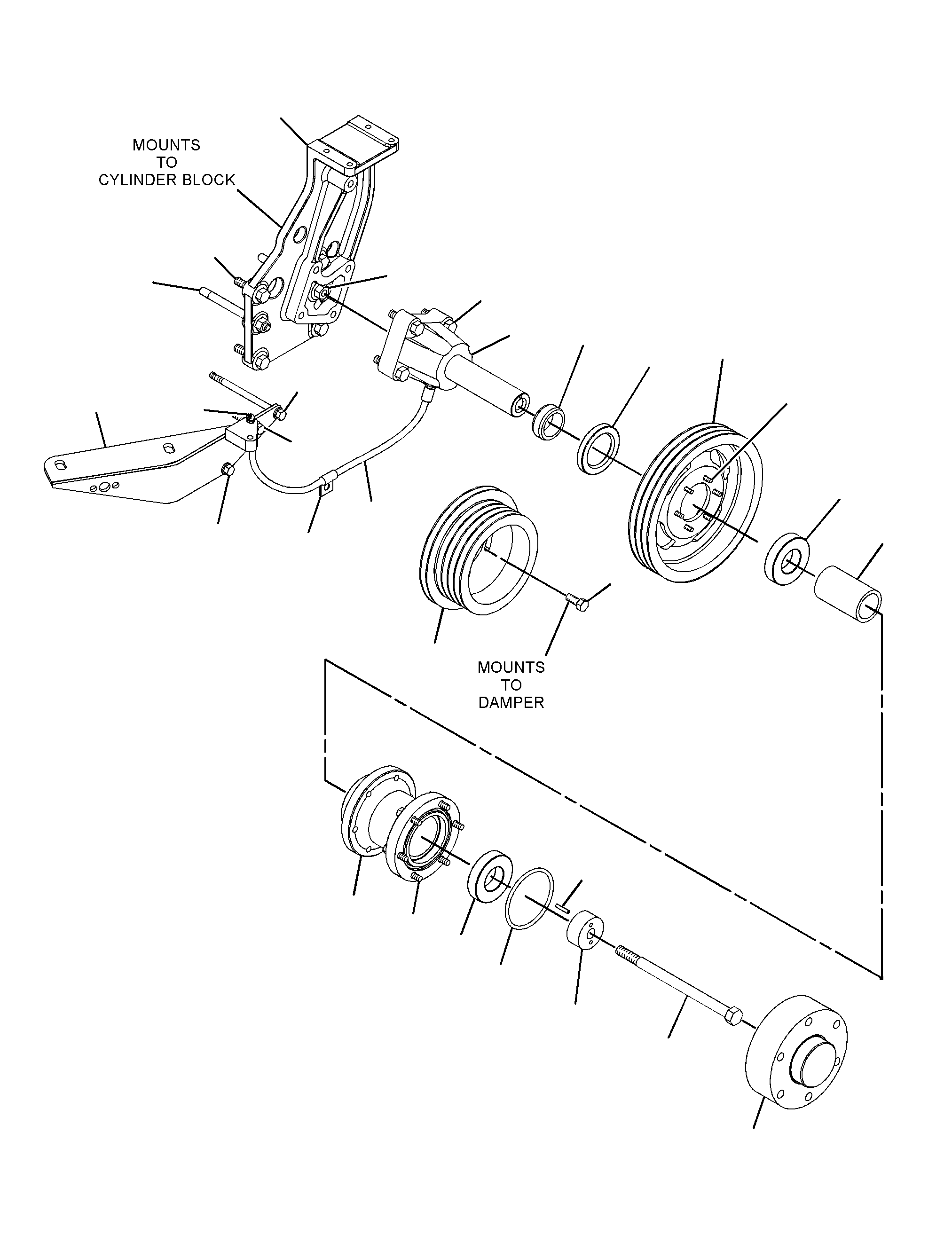

261-0669 DRIVE GP-FANS/N TXG1-UP; LHX4642-99999
Group No: 261-0669
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1W4564 | 1 WASHER-RETAINING (17X54X25-MM THK) | 1 | |
| 2W6280 | 2 BRACKET AS-FAN | 1 | |
| 8N8980 | SHAFT-FAN | 1 | |
| 3B8485 | 3 ELBOW (FAN DRIVE) | 1 | |
| 4N8596 | 4 PULLEY-FAN DRIVE (4-GROOVE) | 1 | |
| 4W8595 | 5 PULLEY-CRANKSHAFT (5-GROOVE) | 1 | |
| 8N8978 | 6 SPACER (40X53.98X20-MM THK) | 1 | |
| 8N8979 | 7 SPACER (42X54X90-MM THK) | 1 | |
| 8N8983 | 8 HUB-FAN PULLEY | 1 | |
| 8N9394 | 9 HOSE AS | 1 | |
| 1569688 | 10 SUPPORT-COMPRESSOR | 1 | |
| 1642556 | 11 BRACKET AS | 1 | |
| 1881034 | 12 ADAPTER | 1 | |
| 9X6380 | 13 BOLT (5/8-11X1.5-IN) | 4 | |
| 5F0149 | 14 SEAL-O-RING | 1 | |
| 5F4899 | 15 BOLT (3/8-16X5.5-IN) | 1 | |
| 5M2894 | 16 WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 | |
| 5P9297 | 17 CLIP (LOOP) | 1 | |
| 5S7382 | 18 BOLT (3/8-16X1.375-IN) | 6 | |
| 6H3956 | 19 PIN | 1 | |
| 6H3957 | 20 BALL BEARING | 2 | |
| 6V8188 | 21 NUT (1/2-13-THD) | 2 | |
| 7X7890 | 22 BOLT (5/8-11X9.5-IN) | 1 | |
| 8B8255 | 23 SEAL-LIP TYPE | 1 | |
| 0S1590 | 24 BOLT (3/8-16X2-IN) | 2 | |
| 1A2029 | 25 BOLT (3/8-16X1.125-IN) | 6 | |
| 1A1460 | 26 BOLT (1/2-13X2-IN) | 8 | |
| 8T4896 | 27 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 1495268 | 28 STUD-TAPERLOCK (1/2-13X5.75-IN) | 2 |
