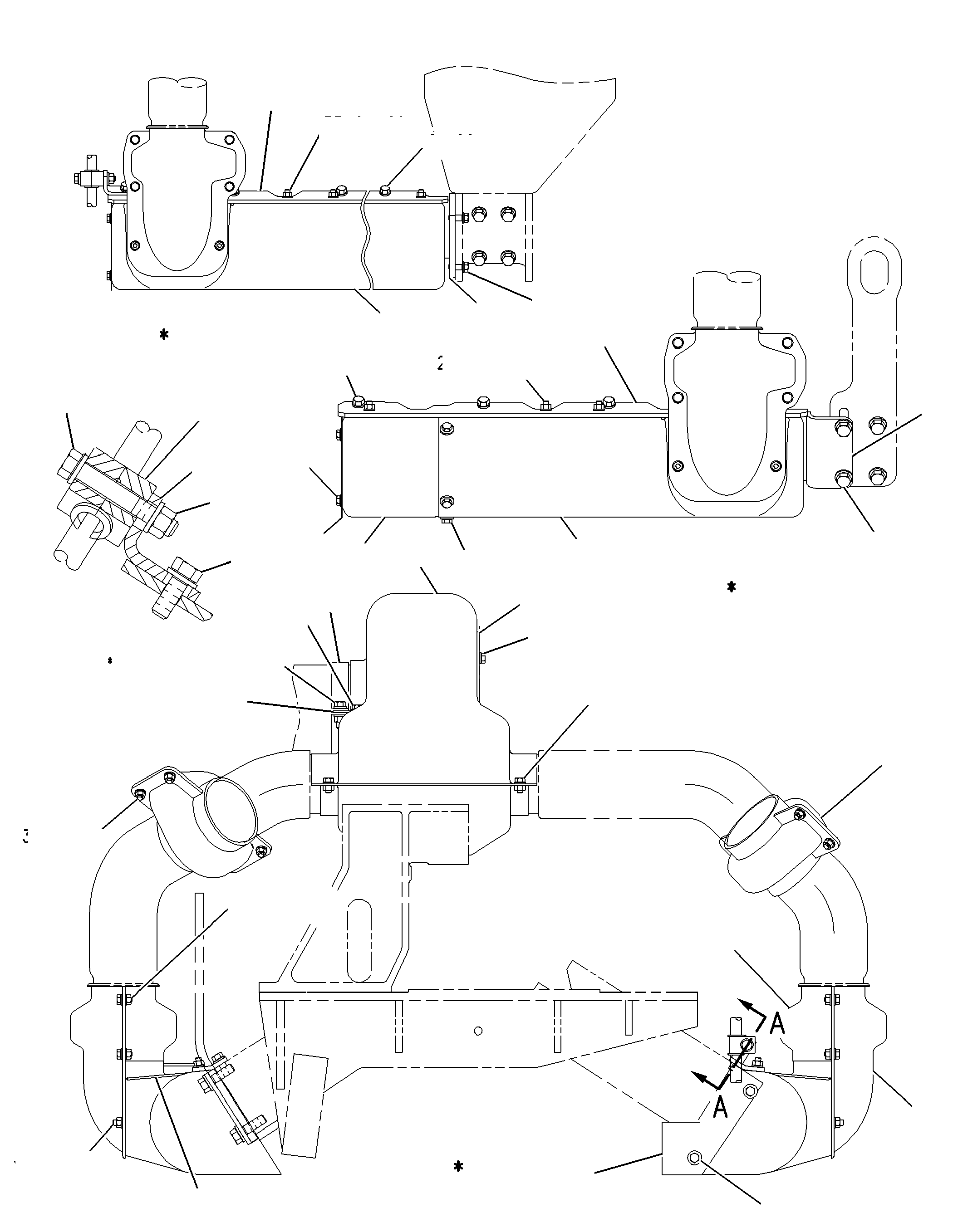

126-6240 SHIELD GP-MANIFOLDS/N 86Z1-UP; 87Z1-UP

Group No: 126-6240
Part NumberPart NameQty
8N79541 PLATE2
12650562 SHIELD AS-MANIFOLD1
6V5044NUT-WELD (5/16-18-THD)6
8T42243 WASHER-HARD (8.8X16X2-MM THK)38
8N15944 SHIELD AS2
8N16195 SHIELD AS2
11409176 SHIELD AS2
1N33007 SHIELD AS4
8N23688 SHIELD AS1
8N79539 PLATE1
6V271210 STUD4
113542111 PLATE2
114091512 SHIELD AS (MANIFOLD)1
6V5044NUT-WELD (5/16-18-THD)8
9B723713 BOLT (3/8-16X1.25-IN)3
4L645914 BOLT (3/8-16X2.5-IN)1
126505715 SHIELD AS-MANIFOLD1
6V5044NUT-WELD (5/16-18-THD)5
1W618516 SHIELD AS1
6V5044NUT-WELD (5/16-18-THD)2
6V880117 NUT (3/8-16-THD)3
2P091118 ANGLE1
4P069219 CLAMP AS2
7C2199CLAMP2
1081434GROMMET1
1W046720 PLATE1
4L645421 BOLT (3/8-16X1-IN)9
8T489622 WASHER-HARD (10.2X18.5X2.5-MM THK)9
5K090623 BOLT (5/16-18X0.625-IN)21
6V818924 NUT (5/16-18-THD)28
8T539125 BOLT (5/16-18X0.5-IN)9
5P411626 WASHER-HARD (8.8X20.5X2-MM THK)22
8T891927 BOLT (1/2-13X1.75-IN)2
5P107528 WASHER-HARD (10.2X22.5X3-MM THK)7
4M642529 BOLT (5/16-18X1-IN)2
7V240030 STRIP2
8J411031 CLAMP2
5P107632 WASHER-HARD (13.5X30X4-MM THK)2
1A746233 STUD8
