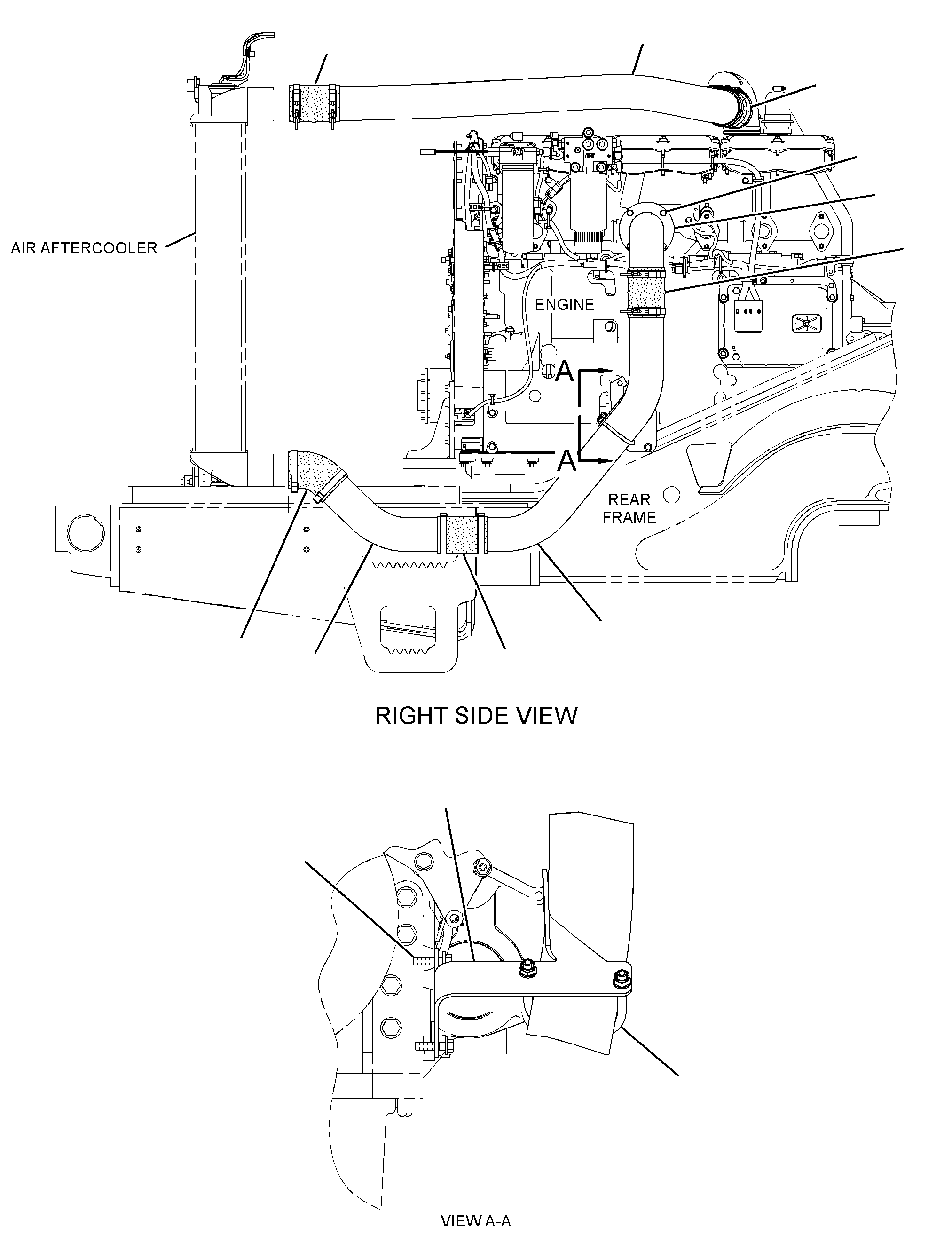

228-4196 LINES GP-AFTERCOOLER AIRS/N 85X1-UP; 86X1-UP; 87X1-UP

Group No: 228-4196
Part NumberPart NameQty
7E86301 HOSE-AIR INLET (HUMP)4
10131252 GASKET (AIR INLET MANIFOLD)1
17700353 U-BOLT (M10X1.5-THD)1
17700634 ELBOW1
19829365 TUBE1
22841976 TUBE1
25117747 ELBOW1
26731408 TUBE1
30603499 BRACKET1
208744810 CLAMP (T-BOLT)10
4L933711 BOLT (3/8-16X1.5-IN)2
5P107512 WASHER-HARD (10.2X22.5X3-MM THK)2
8T038913 LOCKNUT (M10X1.5-THD)2
8T412114 WASHER-HARD (11X21X2.5-MM THK)2
8T489615 WASHER-HARD (10.2X18.5X2.5-MM THK)4
5S738216 BOLT (3/8-16X1.375-IN)4
