System And Components

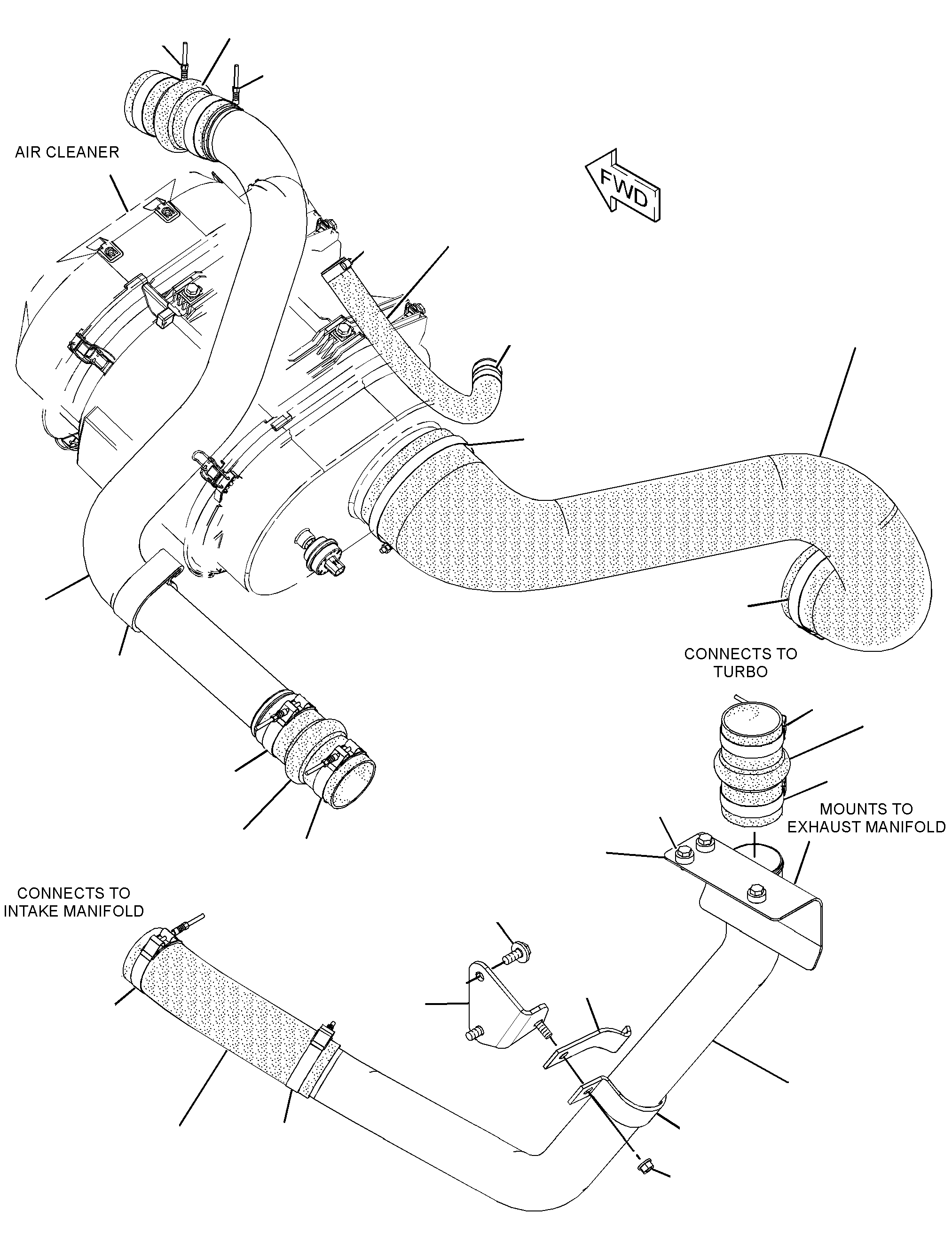

277-6060 LINES GP-AIRS/N LCP1-UP
Group No: 277-6060
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2S3440 | 1 CLAMP-HOSE | 3 | |
| 1770581 | 2 HOSE | 3 | |
| 2676404 | 3 HOSE | 1 | |
| 2778725 | 4 HOSE | 1 | |
| 2778726 | 5 TUBE | 1 | |
| 2778727 | 6 TUBE | 1 | |
| 2905609 | 7 BRACKET AS | 1 | |
| 2905640 | 8 HOSE | 1 | |
| 3261016 | 9 SHIELD | 1 | |
| 1984777 | 10 WASHER-HARD (11X25X10-MM THK) | 3 | |
| 2094578 | 11 CLAMP-T BOLT | 8 | |
| 2240807 | 12 CLAMP | 1 | |
| 2313264 | 13 CLAMP (BOLT SPRING) | 1 | |
| 5P1076 | 14 WASHER-HARD (13.5X30X4-MM THK) | 2 | |
| 8T4121 | 15 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 8T4133 | 16 NUT (M10X1.5-THD) | 1 | |
| 8T4136 | 17 BOLT (M10X1.5X25-MM) | 3 | |
| 8T4139 | 18 BOLT (M12X1.75X30-MM) | 2 | |
| 8T4195 | 19 BOLT (M10X1.5X30-MM) | 1 | |
| 9X2646 | 20 CLIP (SLOT) | 2 | |
| 9X2647 | 21 CLIP (TAB) | 2 |
