System And Components

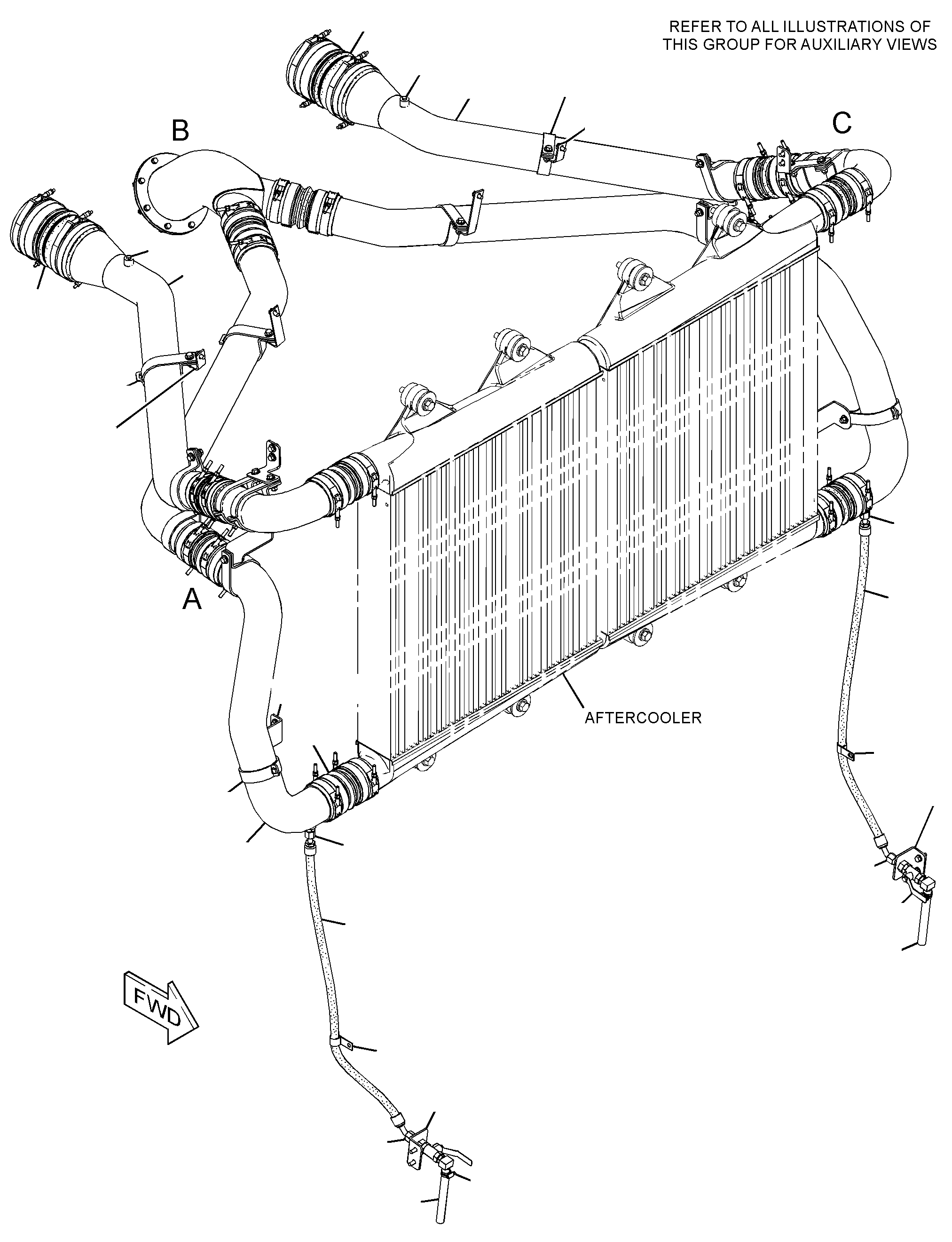

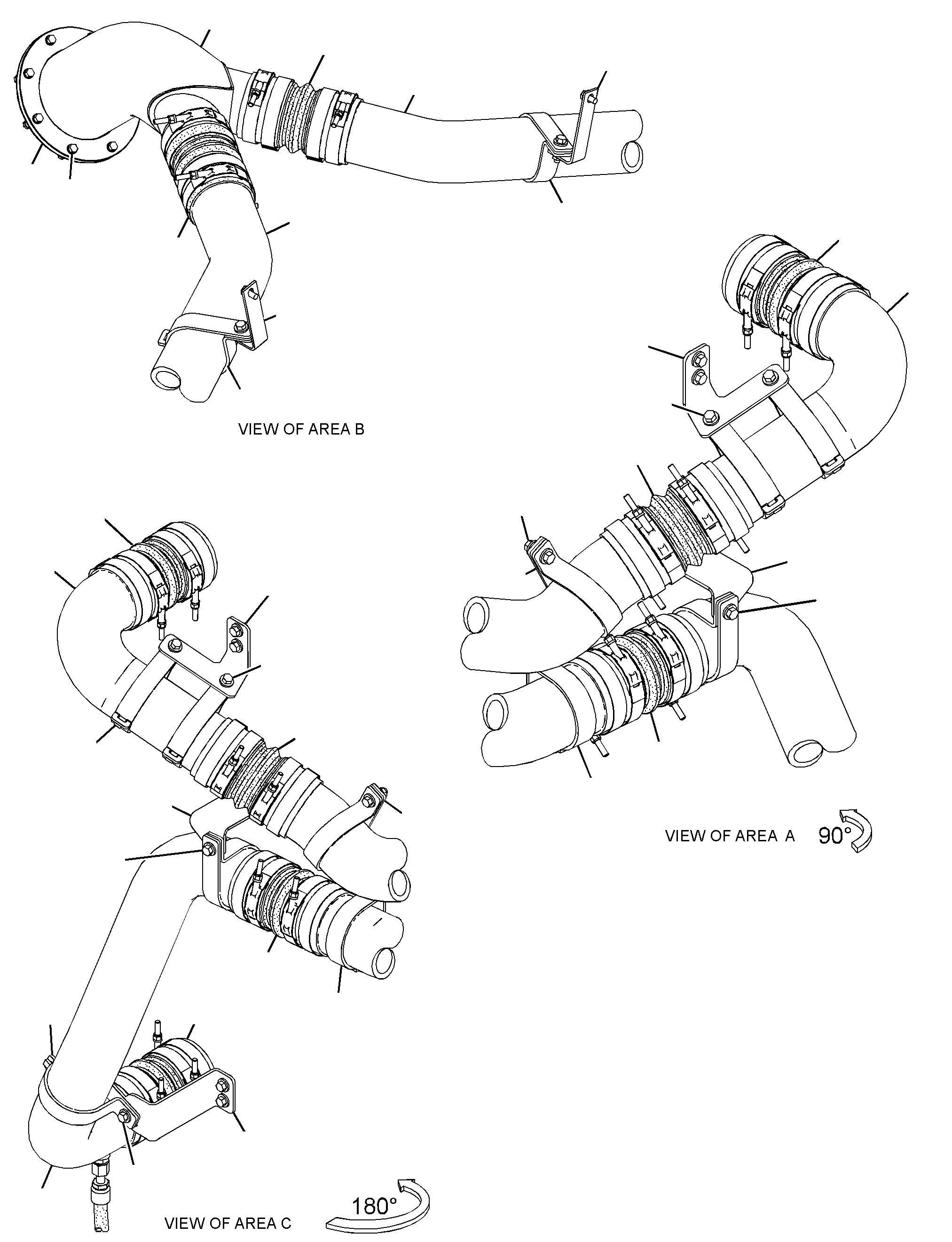

285-0724 LINES GP-AIR -AFTERCOOLERS/N MSY235-254
Group No: 285-0724
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5D1026 | 1 CLAMP-BAND | 2 | |
| 1356261 | 2 CLAMP | 8 | |
| 1725226 | 3 HOSE AS | 2 | |
| 1879086 | 4 CONNECTOR AS | 2 | |
| 1526942 | CONNECTOR | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 2086135 | 5 CLIP (SLOT) | 16 | |
| 2086136 | 6 CLIP (TAB) | 16 | |
| 2162211 | 7 CLAMP | 40 | |
| 2177088 | 8 HOSE | 10 | |
| 2556264 | 9 GASKET | 1 | |
| 2934987 | 10 VALVE-BALL | 2 | |
| 3002396 | 11 TUBE AS | 1 | |
| 3085286 | 12 BRACKET | 1 | |
| 3085287 | 13 BRACKET | 1 | |
| 3085300 | 14 BRACKET | 1 | |
| 3085301 | 15 BRACKET | 1 | |
| 3085314 | 16 TUBE AS | 1 | |
| 3085316 | 17 TUBE AS | 1 | |
| 3106878 | 18 PLATE | 2 | |
| 3106879 | 19 PLATE | 2 | |
| 3113231 | 20 TUBE | 2 | |
| 3113232 | 21 TUBE | 1 | |
| 3113233 | 22 TUBE | 1 | |
| 3245885 | 23 BRACKET | 2 | |
| 3621173 | 24 TUBE AS | 1 | |
| 3621174 | 25 TUBE AS | 1 | |
| 3628664 | 26 BRACKET | 2 | |
| 3668500 | 27 HOSE | 2 | |
| 1488340 | 28 CONNECTOR AS | 2 | |
| 6V8639 | CONNECTOR | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 1503026 | 29 ELBOW AS | 2 | |
| 6V4292 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 4L6454 | 30 BOLT (3/8-16X1-IN) | 4 | |
| 4L9337 | 31 BOLT (3/8-16X1.5-IN) | 16 | |
| 5K1094 | 32 LOCKWASHER | 2 | |
| 5M3062 | 33 BOLT (3/8-16X0.75-IN) | 16 | |
| 5M6214 | 34 PLUG (1/8-27 PTF) | 2 | |
| 5P1075 | 35 WASHER-HARD (10.2X22.5X3-MM THK) | 48 | |
| 6V8189 | 36 NUT (5/16-18-THD) | 8 | |
| 6V8801 | 37 NUT (3/8-16-THD) | 16 | |
| 6V9169 | 38 NUT (13/16-16-THD) | 2 | |
| 8C3121 | 39 BOLT (5/16-18X1.5-IN) | 8 | |
| 8S0948 | 40 CLIP | 2 | |
| 8T4224 | 41 WASHER-HARD (8.8X16X2-MM THK) | 16 | |
| 8T4896 | 42 WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 1226870 | 43 HOSE-HYDRAULIC (15.6-IN) |
