System And Components

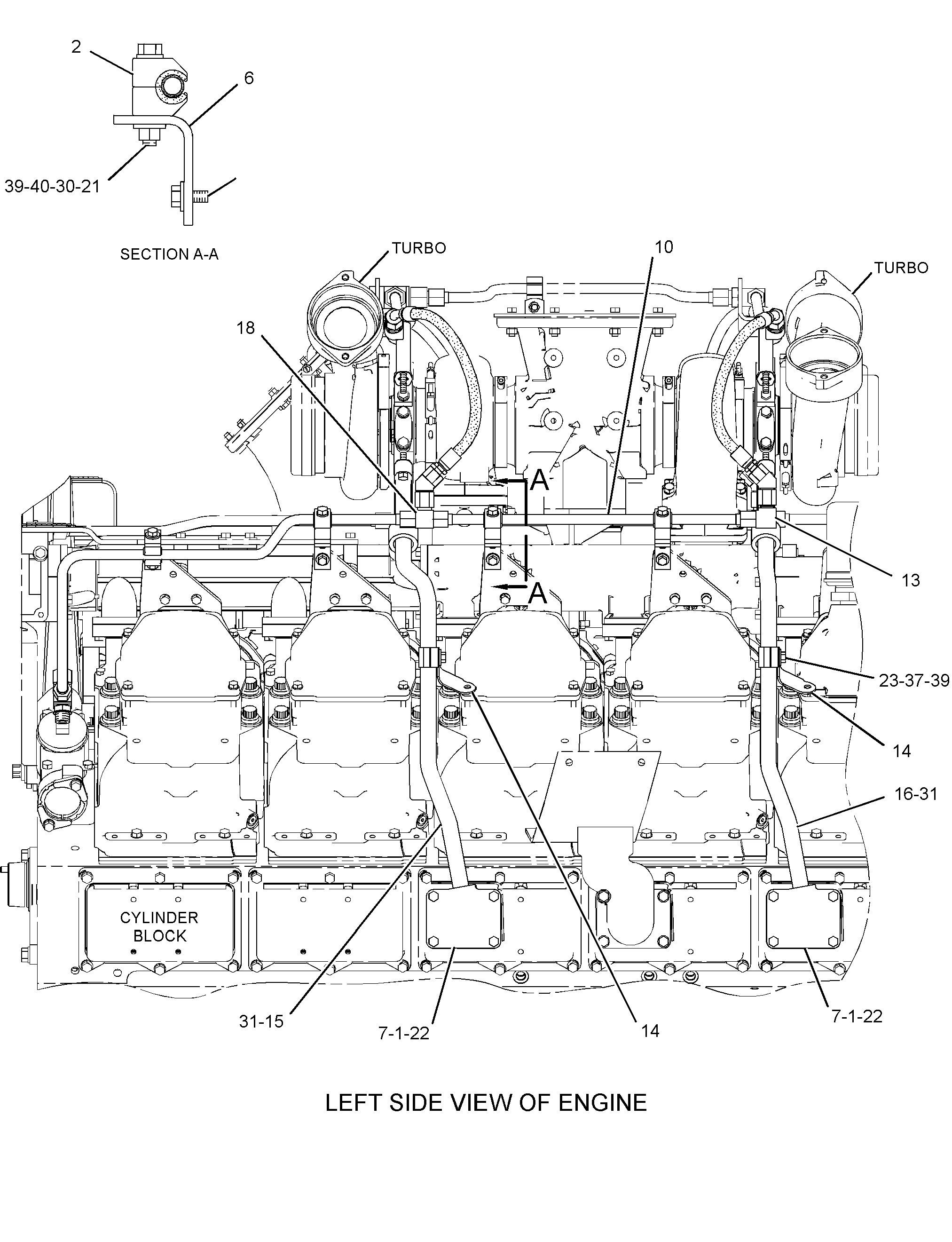

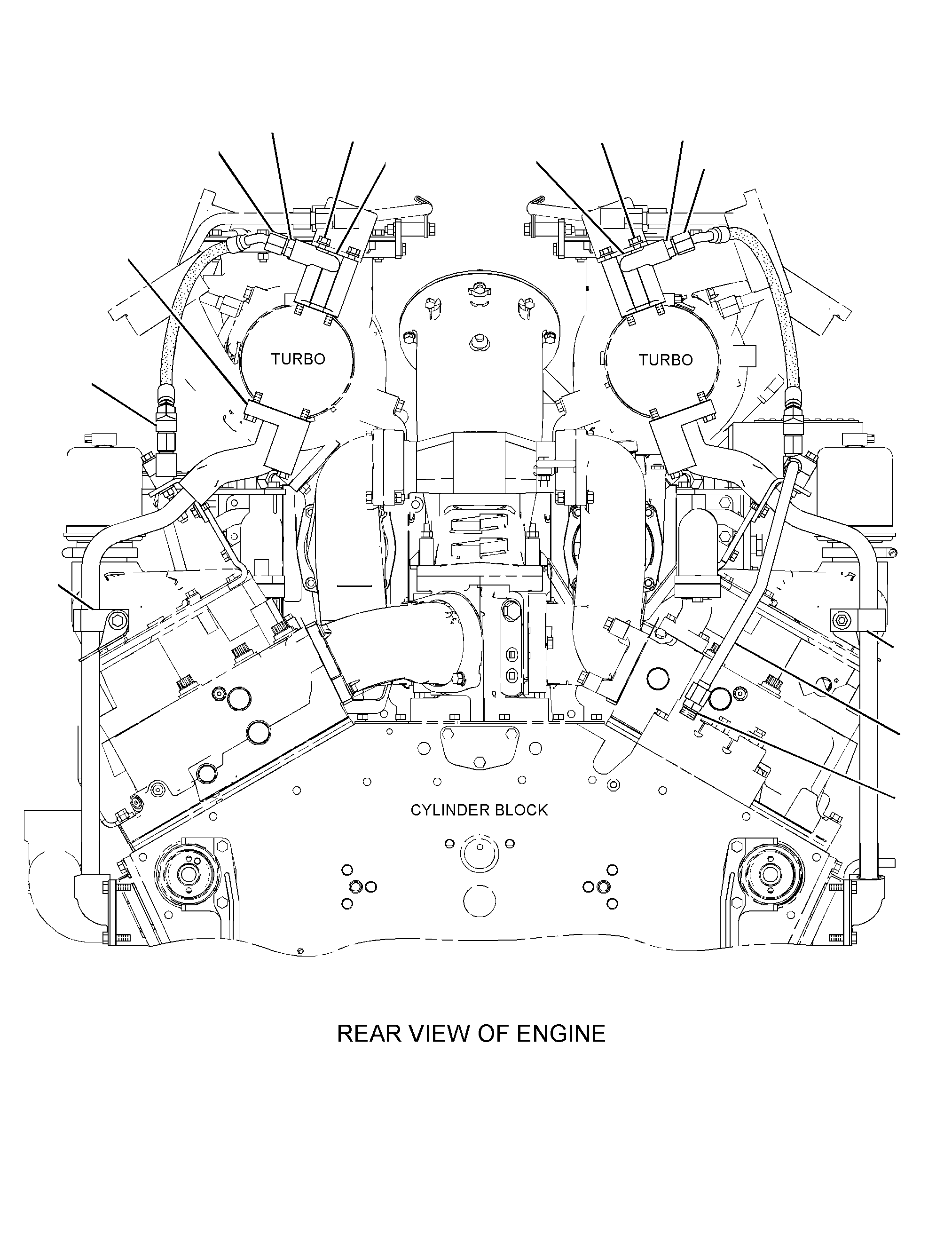

308-4495 LINES GP-TURBOCHARGER OILS/N D851-UP; B7F1-UP
Group No: 308-4495
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2W0752 | 1 GASKET | 4 | |
| 4P0692 | 2 CLAMP AS | 16 | |
| 1081434 | GROMMET | 1 | |
| 4P4460 | 3 GASKET | 4 | |
| 6I0804 | 4 ADAPTER-TURBOCHARGER OIL | 2 | |
| 6I0805 | 5 ADAPTER-TURBOCHARGER OIL | 2 | |
| 7E5330 | 6 BRACKET | 8 | |
| 7N5094 | 7 ELBOW-DRAIN | 4 | |
| 7N7559 | 8 GASKET | 4 | |
| 9Y5814 | 9 ELBOW-DRAIN | 4 | |
| 1118912 | 10 TUBE AS-TURBOCHARGER | 2 | |
| 1843229 | 11 HOSE AS | 4 | |
| 1874603 | 12 TUBE AS | 1 | |
| 2501496 | 13 ELBOW | 2 | |
| 2673393 | 14 BRACKET | 4 | |
| 3086862 | 15 TUBE | 2 | |
| 3086863 | 16 TUBE | 2 | |
| 3203801 | 17 TUBE AS | 1 | |
| 0038581 | 18 TEE-UNION | 2 | |
| 0307964 | 19 ELBOW | 4 | |
| 0314136 | 20 TEE-FLARED | 1 | |
| 0L1143 | 21 BOLT (3/8-16X2.5-IN) | 8 | |
| 0S1588 | 22 BOLT (3/8-16X1.25-IN) | 16 | |
| 0S1594 | 23 BOLT (3/8-16X1-IN) | 4 | |
| 0S1608 | 24 BOLT (3/8-16X3.75-IN) | 4 | |
| 0S1617 | 25 BOLT (5/16-18X0.75-IN) | 8 | |
| 0T0055 | 26 BOLT (3/8-16X4.25-IN) | 8 | |
| 2P7636 | 27 CONNECTOR (3/4-16 STR-THD) | 4 | |
| 3B1915 | 28 BOLT (3/8-16X1.375-IN) | 4 | |
| 3E4352 | 29 WASHER-HARD (8.8X20.5X2.5-MM THK) | 8 | |
| 5M2894 | 30 WASHER-HARD (10.2X18.5X2.5-MM THK) | 16 | |
| 5P9890 | 31 SEAL-O-RING | 8 | |
| 6J7366 | 32 CAP-FLARED | 1 | |
| 6K5535 | 33 CLIP (SLOT) | 4 | |
| 6K5536 | 34 CLIP (TAB) | 4 | |
| 6V4589 | 35 SEAL-O-RING | 2 | |
| 8L2786 | 36 SEAL-O-RING | 4 | |
| 9L9132 | 37 WASHER-HARD (10.2X25.5X2.5-MM THK) | 8 | |
| 9M4584 | 38 CONNECTOR | 1 | |
| 9S8752 | 39 NUT-FULL (3/8-16-THD) | 12 | |
| 9X6458 | 40 WASHER-HARD (10.2X22.5X3-MM THK) | 8 |
