System And Components

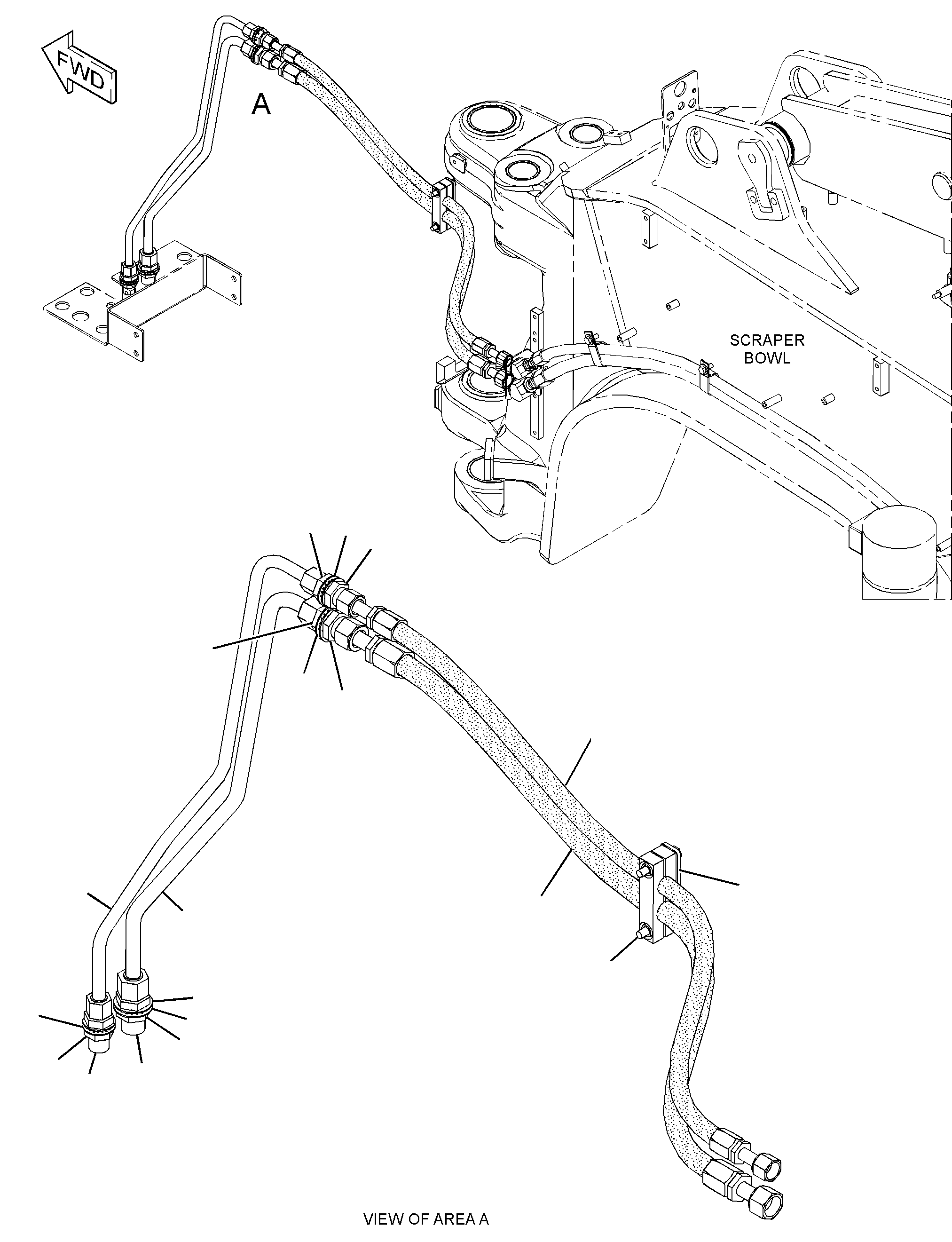

310-5545 LINES GP-FUEL -TRACTORS/N DBF1-UP
Group No: 310-5545
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3264937 | 1 HOSE AS | 1 | |
| 3264938 | 2 HOSE AS | 1 | |
| 3264950 | 3 TUBE AS | 1 | |
| 3264952 | 4 TUBE AS | 1 | |
| 3454019 | 5 BLOCK | 2 | |
| 3469443 | 6 PLATE | 1 | |
| 2H3924 | 7 LOCKWASHER | 4 | |
| 2H3926 | 8 LOCKWASHER | 4 | |
| 2P1293 | 9 LOCKNUT (1-3/16-12-THD) | 2 | |
| 1597482 | 10 SLEEVE (11.1X15.9X38.5-MM THK) | 2 | |
| 3295473 | 11 UNION AS | 2 | |
| 6V8997 | UNION | 1 | |
| 2287092 | SEAL-O-RING | 2 | |
| 3295526 | 12 UNION AS | 2 | |
| 6V8996 | UNION | 1 | |
| 2287091 | SEAL-O-RING | 2 | |
| 6V9170 | 13 NUT-BULKHEAD (1-14-THD) | 2 | |
| 8T4121 | 14 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 8T6466 | 15 BOLT (M10X1.5X60-MM) | 2 |
