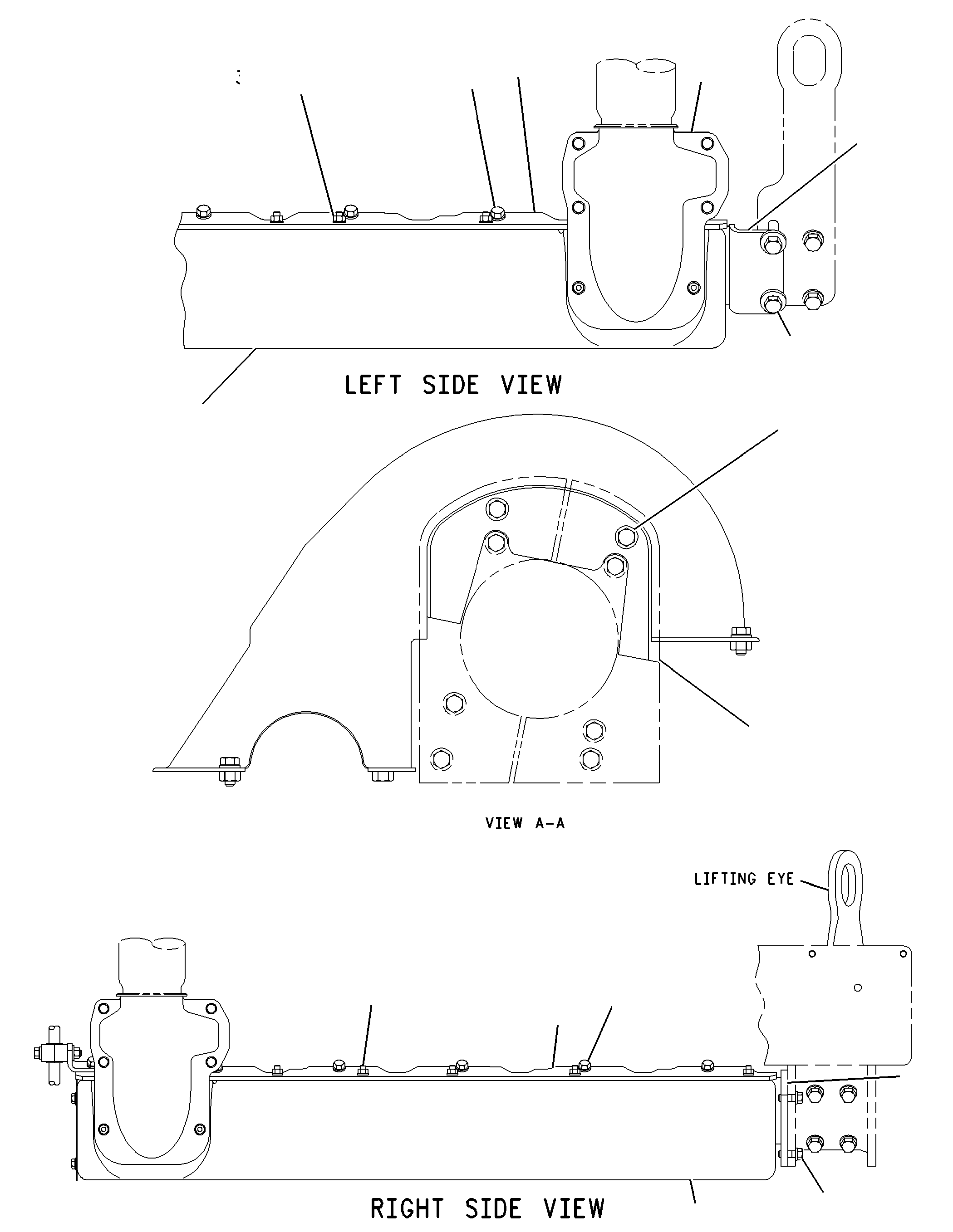

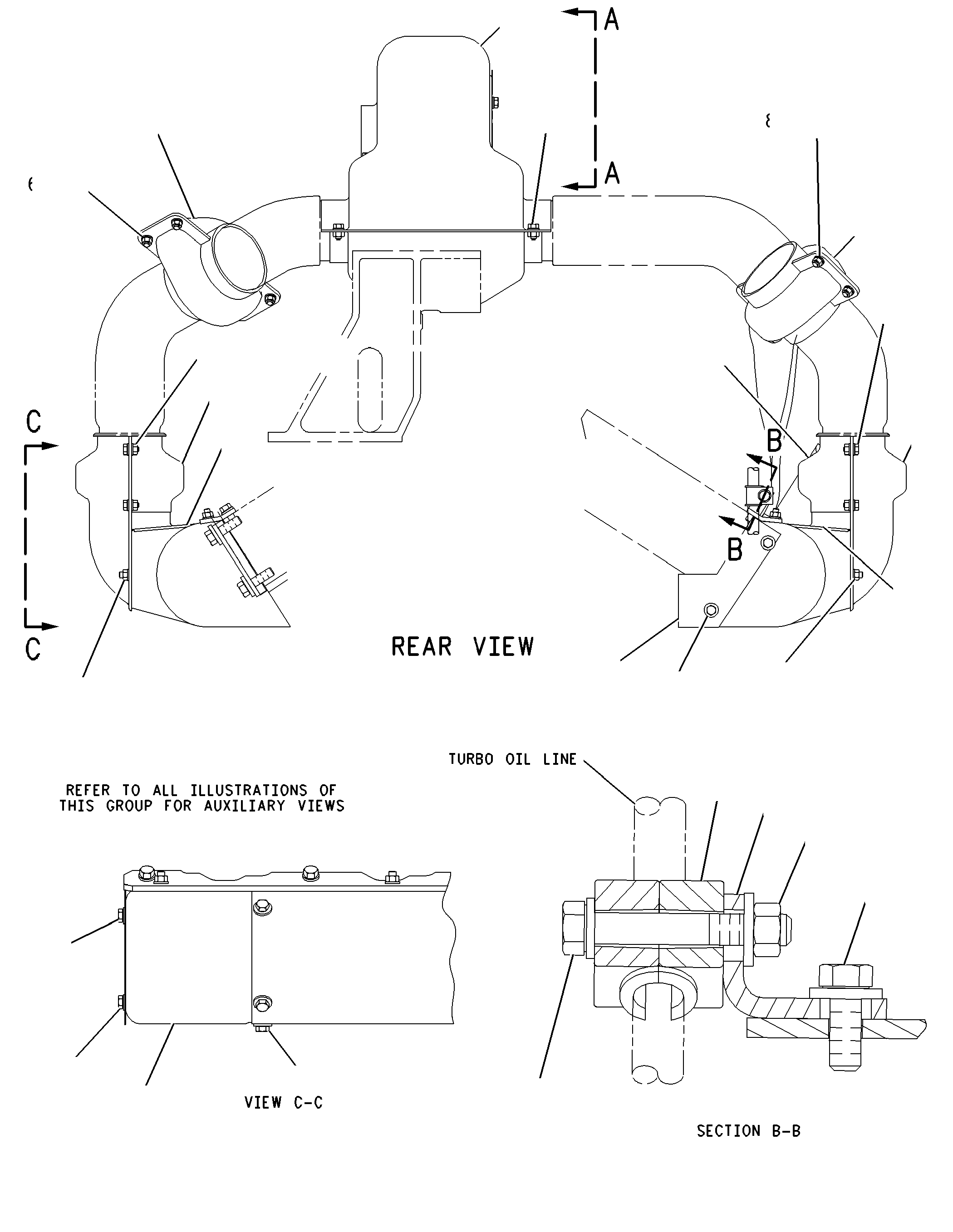

130-9199 SHIELD GP-MANIFOLDS/N 4YR1-UP; 89Z1-UP; 90Z1-UP; 91Z1-UP

Group No: 130-9199
Part NumberPart NameQty
8N79541 PLATE2
8T53912 BOLT (5/16-18X0.5-IN)9
5P41163 WASHER-HARD (8.8X20.5X2-MM THK)25
12650564 SHIELD AS-MANIFOLD1
6V5044NUT-WELD (5/16-18-THD)6
6V81895 NUT (5/16-18-THD)32
8T42246 WASHER-HARD (8.8X16X2-MM THK)38
8N15947 SHIELD AS2
5K09068 BOLT (5/16-18X0.625-IN)22
8N16199 SHIELD AS2
114091710 SHIELD AS2
1N330011 SHIELD AS4
8N236812 SHIELD AS1
8T891913 BOLT (1/2-13X1.75-IN)2
8N795314 PLATE1
4L645415 BOLT (3/8-16X1-IN)13
6V271216 STUD4
1W046717 PLATE1
5P107518 WASHER-HARD (10.2X22.5X3-MM THK)3
8T489619 WASHER-HARD (10.2X18.5X2.5-MM THK)13
1W618520 SHIELD AS1
6V5044NUT-WELD (5/16-18-THD)2
4L645921 BOLT (3/8-16X2.5-IN)1
6V880122 NUT (3/8-16-THD)1
2P091123 ANGLE1
4P069224 CLAMP AS2
1081434GROMMET1
5P107625 WASHER-HARD (13.5X30X4-MM THK)2
9B723726 BOLT (3/8-16X1.25-IN)1
130911727 SHIELD AS1
6V5044NUT-WELD (5/16-18-THD)7
110004028 PLATE2
121619829 SHIELD AS1
6V5044NUT-WELD (5/16-18-THD)10
1A746230 STUD12
