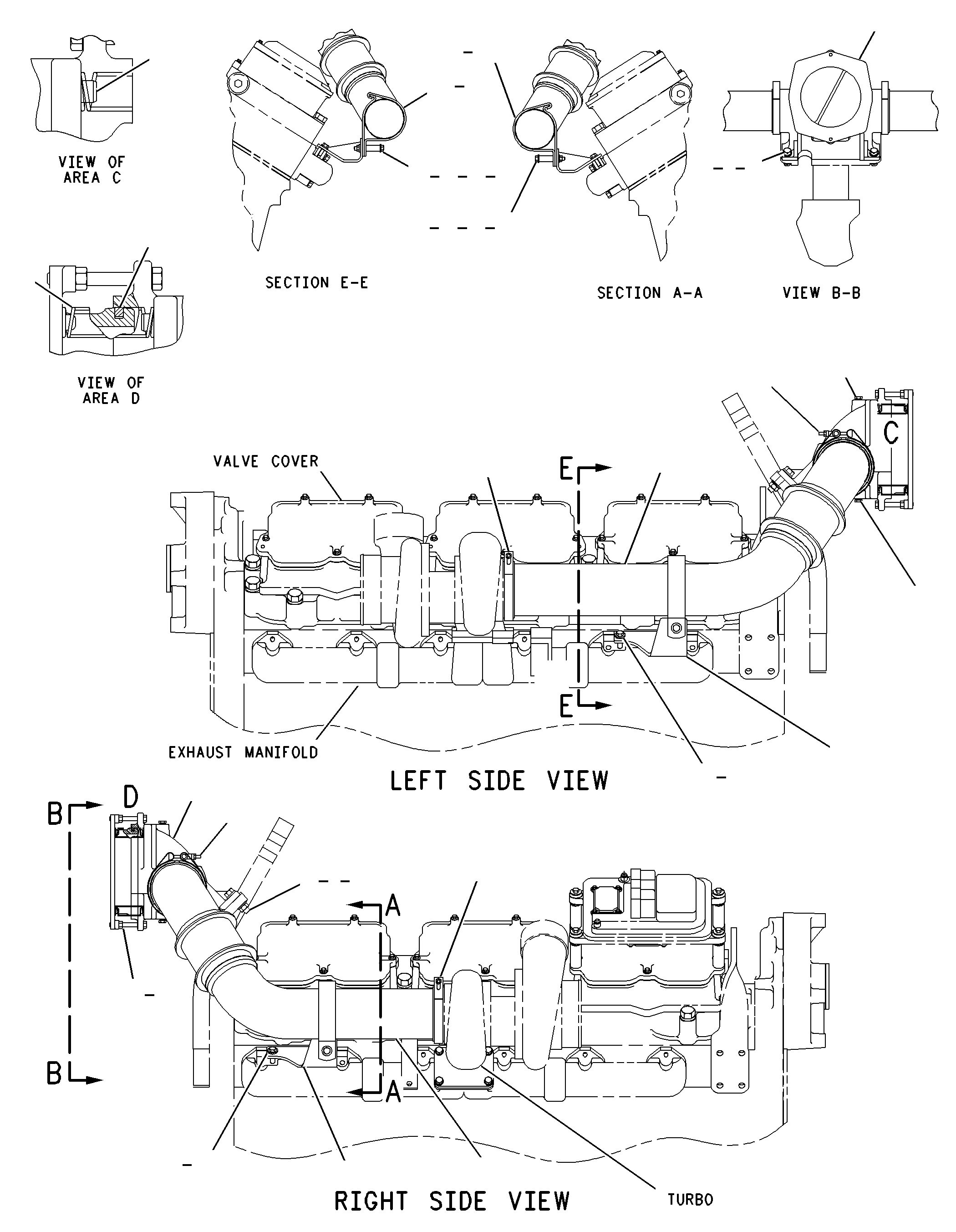

142-4035 LINES GP-AIR -TURBOCHARGER EXHAUSTS/N 7XJ1-UP; 63W1-UP; 64W1-UP

Group No: 142-4035
Part NumberPart NameQty
12134081 ELBOW-EXHAUST1
5P24242 BOLT (1/2-13X2.25-IN)2
8T42233 WASHER-HARD (13.5X25.5X3-MM THK)8
6V81884 NUT (1/2-13-THD)4
8T89195 BOLT (1/2-13X1.75-IN)2
16314346 TUBE AS-EXHAUST1
16314357 TUBE AS-EXHAUST1
18936208 CLAMP-BAND4
4D06729 DOWEL4
3E742810 PLUG-PIPE (1/4-18-THD)2
9B723711 BOLT (3/8-16X1.25-IN)4
5P107512 WASHER-HARD (10.2X22.5X3-MM THK)10
2K497313 LOCKNUT (3/8-16-THD)2
148097314 BRACKET AS1
2M854515 SPACER (1.56-IN THK)2
8W541616 PISTON1
0S161917 BOLT (3/8-16X3-IN)4
9S875218 NUT-FULL (3/8-16-THD)2
2J238919 SPRING4
8W541720 RING-SEAL1
148097421 BRACKET AS1
7X791022 CLIP (SLOT)2
7X791123 CLIP (TAB)2
