System And Components

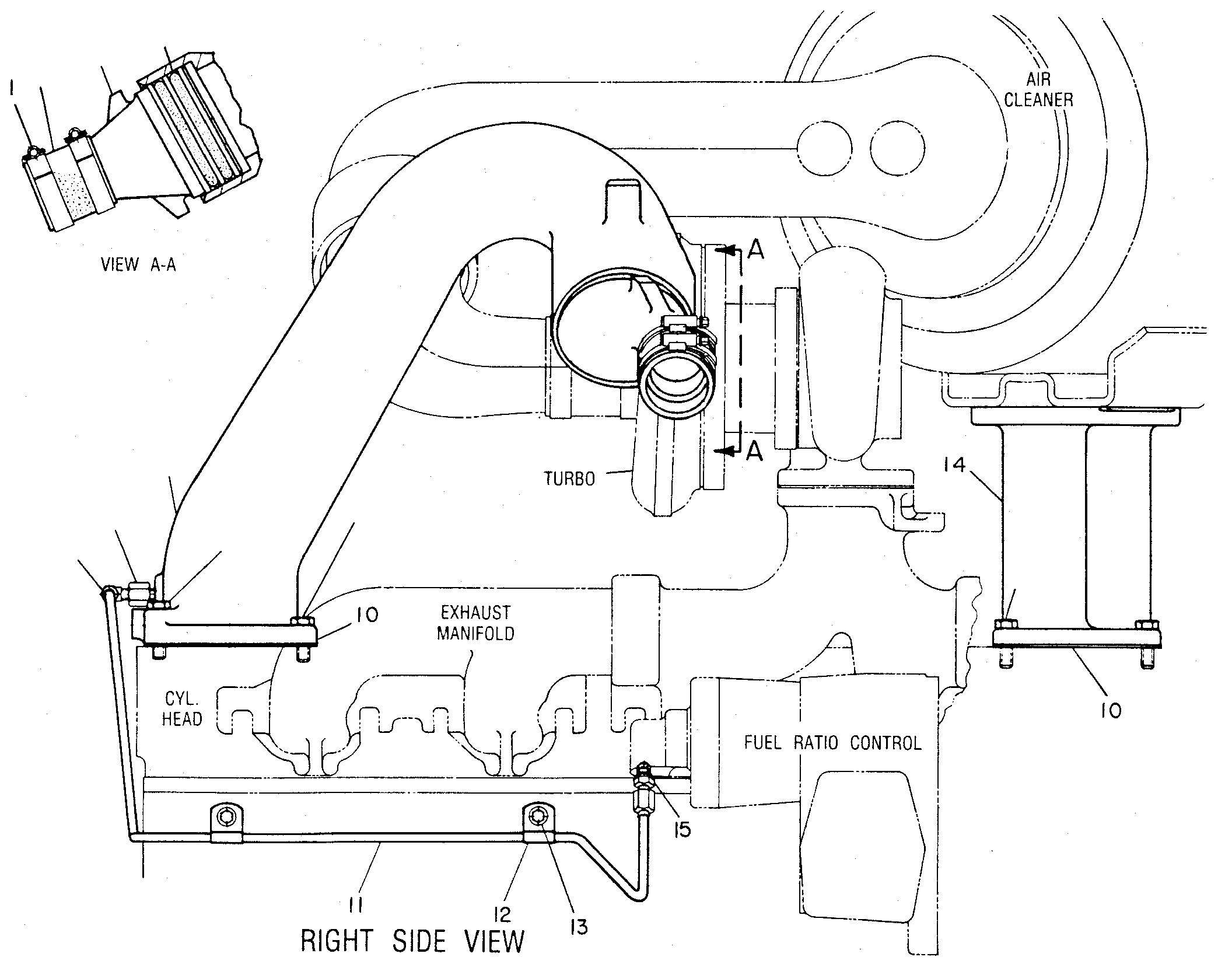

7C-8672 LINES GP-AIRS/N 6NC1-UP; 08Z1-UP
Group No: 7C-8672
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5P0597 | 1 CLAMP-HOSE | 2 | |
| 4N9216 | 2 HOSE-AIR | 1 | |
| 7C8284 | 3 ELBOW-OUTLET | 1 | |
| 4L8337 | 4 SEAL-O-RING | 2 | |
| 2N1287 | 5 ELBOW-FLARED | 1 | |
| 6K6967 | 6 ADAPTER-PIPE | 1 | |
| 0S1591 | 7 BOLT (3/8-16X1.5-IN) | 2 | |
| 4W0950 | 8 PIPE-AIR INLET | 1 | |
| 1A2029 | 9 BOLT (3/8-16X1.125-IN) | 4 | |
| 5S6735 | 10 GASKET | 2 | |
| 7C8787 | 11 TUBE AS-CONTROL | 1 | |
| 2B2404 | 12 CLIP | 2 | |
| 2H3755 | 13 BOLT (5/16-18X0.43-IN) | 2 | |
| 9M1974 | WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 8N3214 | 14 SUPPORT-AIR CLEANER | 1 | |
| 3J7352 | 15 CONNECTOR | 1 | |
| 3J7354 | SEAL-O-RING | 1 |
