System And Components

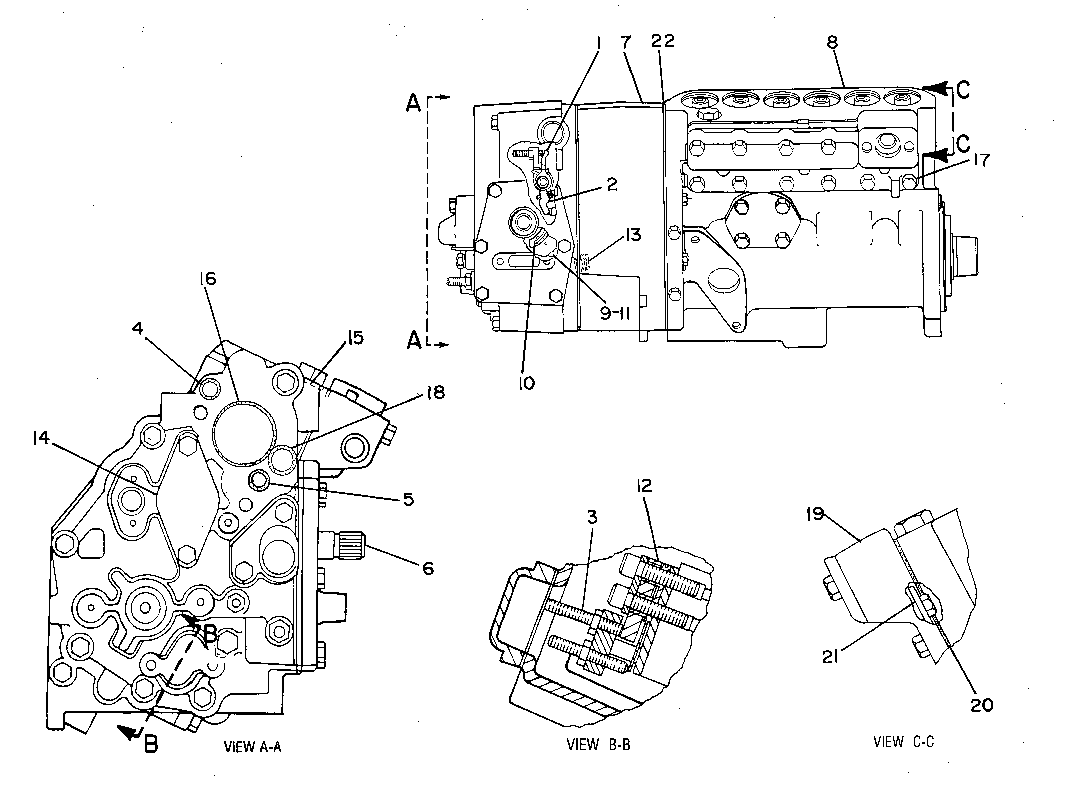

7C-9603 PUMP GP-GOV & FUEL INJS/N 6NC1-UP; 08Z1-UP
Group No: 7C-9603
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4W5735 | 1 LEVER AS-PIVOT | 1 | |
| 6V6835 | SETSCREW-SOCKET (10-32X0.625-IN) | 1 | |
| 4B2049 | NUT (10-32-THD) | 1 | |
| 4W5734 | 2 LEVER AS | 1 | |
| 6V6835 | SETSCREW-SOCKET (10-32X0.625-IN) | 1 | |
| 4B2049 | NUT (10-32-THD) | 1 | |
| 5H6552 | 3 SETSCREW-SOCKET (10-32X1.25-IN) | 1 | |
| 8L5832 | NUT-HEX (10-32-THD) | 1 | |
| 8J8343 | 4 SEAL-O-RING | 1 | |
| 0335879 | 5 SEAL-O-RING | 1 | |
| 8N3088 | 6 SHAFT AS-THROTTLE | 1 | |
| 2W2410 | 7 GOVERNOR GP | 1 | |
| 6I2832 | 8 PUMP GP-FUEL INJECTION | 1 | |
| 7N2176 | 9 PIN-DETENT | 1 | |
| 8N3094 | 10 SPRING-DETENT | 1 | |
| 7N1052 | 11 DOWEL | 1 | |
| 1W8668 | 12 TORQUE CONTROL GP | 1 | |
| 8M9140 | 13 SPRING | 1 | |
| 2W5448 | 14 COVER | 1 | |
| 7E6785 | GASKET | 1 | |
| 3J1907 | 15 SEAL-O-RING | 1 | |
| 8M8515 | 16 SEAL-O-RING | 1 | |
| 7C8993 | 17 FASTENER GP-FUEL INJ PUMP | 1 | |
| 5P6620 | 18 SEAL-O-RING | 1 | |
| 7N9907 | 19 COVER | 1 | |
| 7N9554 | 20 GASKET | 1 | |
| 8N5784 | 21 DEFLECTOR-PULSE | 1 | |
| 7N8768 | 22 GASKET | 1 |
