System And Components

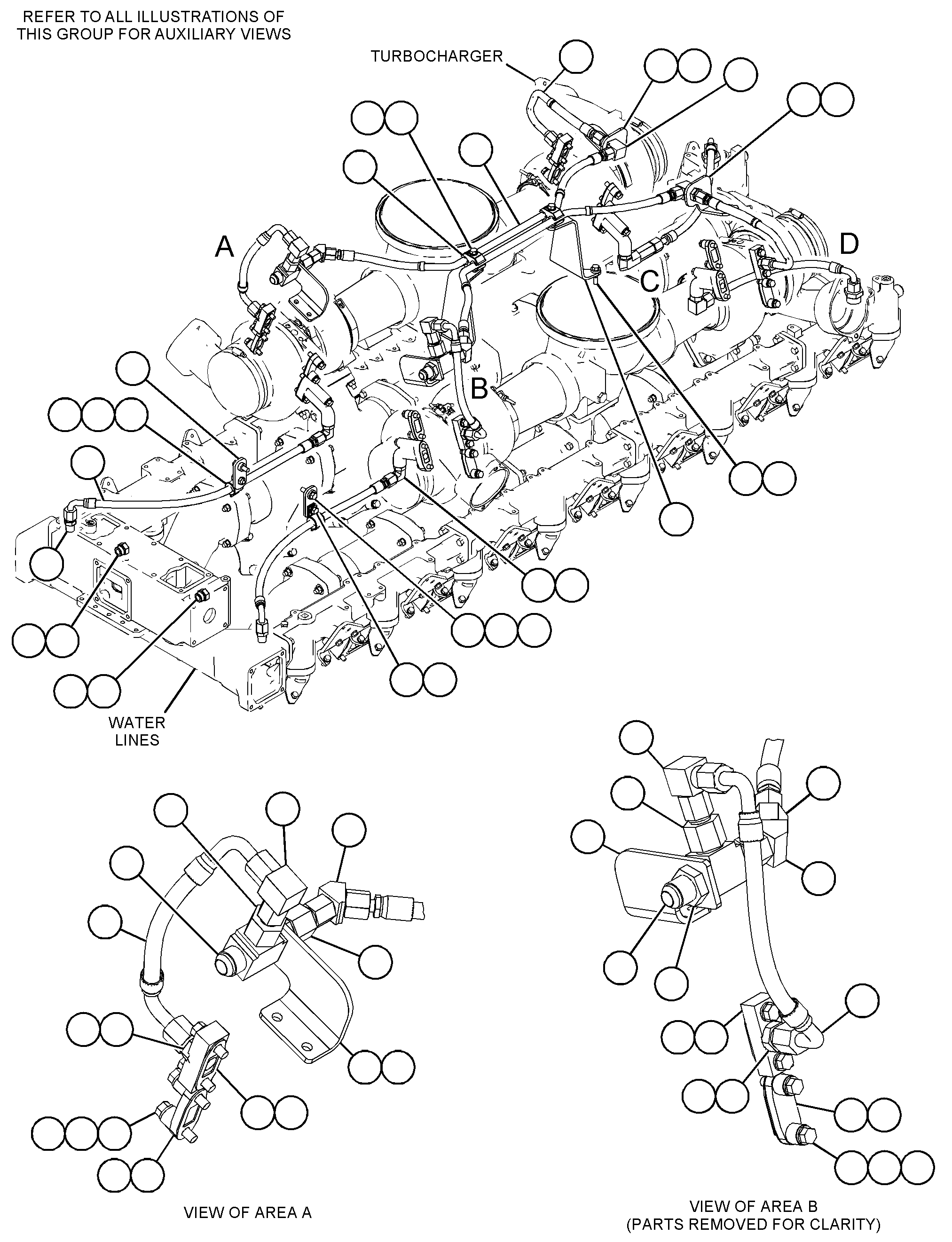

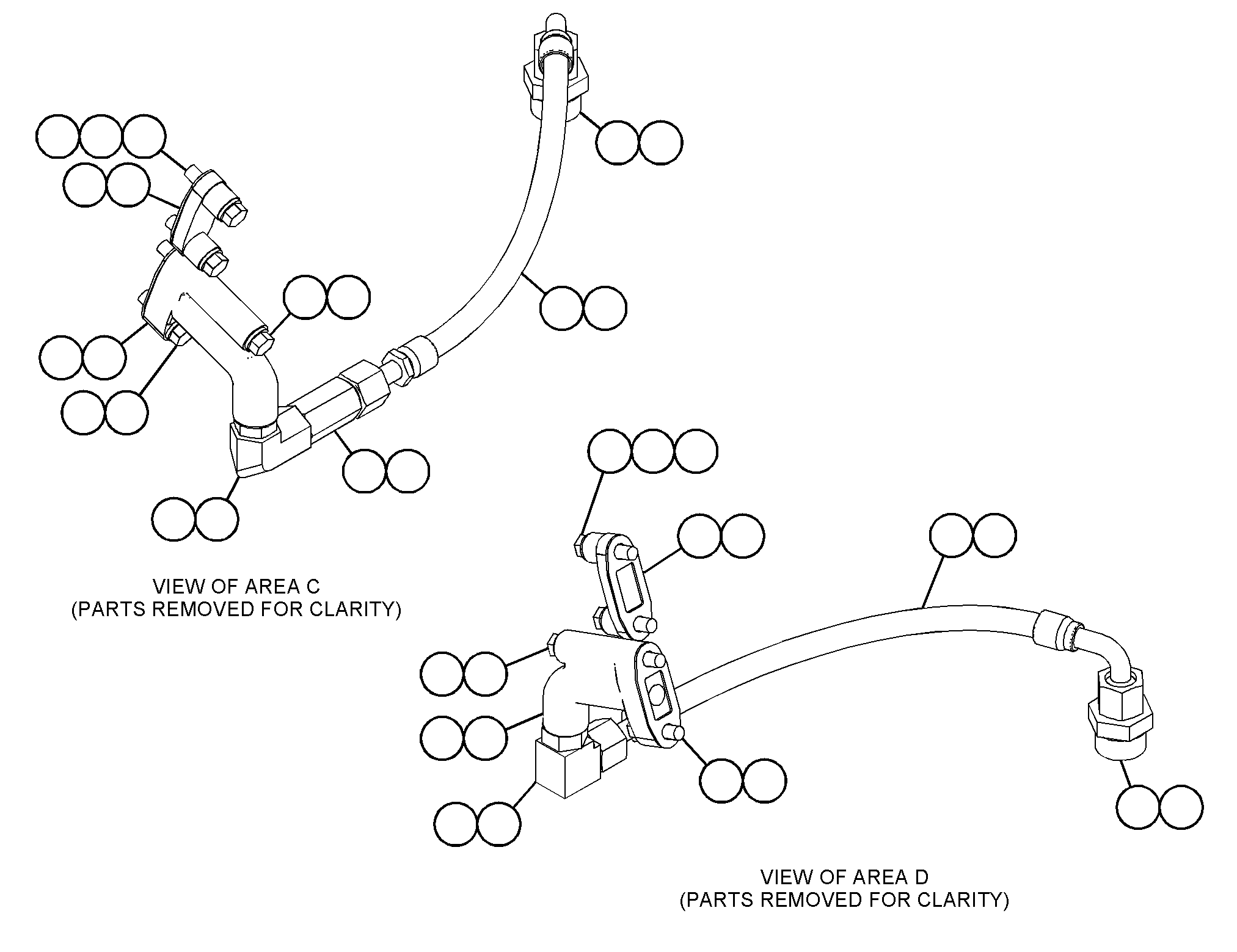

524-6308 LINES GP-TURBOCHARGER WATERS/N 8WM3382-UP
Group No: 524-6308
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4P0693 | 1 CLAMP AS | 4 | |
| 1081434 | GROMMET | 2 | |
| 6K8420 | 2 LOCKNUT (1-1/16-12-THD) | 2 | |
| 1070744 | 3 BLOCK | 4 | |
| 1537482 | 4 BRACKET | 2 | |
| 1550515 | 5 ELBOW | 4 | |
| 3863385 | 6 BRACKET | 1 | |
| 3863386 | 7 BRACKET | 1 | |
| 6V8626 | 8 ELBOW | 1 | |
| 3867365 | 9 BRACKET AS | 2 | |
| 8T1576 | 10 CONNECTOR | 1 | |
| 3914572 | 11 BRACKET AS | 2 | |
| 0307972 | 12 ELBOW | 2 | |
| 0L2070 | 13 BOLT (3/8-16X2.25-IN) | 2 | |
| 0S1594 | 14 BOLT (3/8-16X1-IN) | 2 | |
| 0S1608 | 15 BOLT (3/8-16X3.75-IN) | 4 | |
| 2P7636 | 16 CONNECTOR (3/4-16 STR-THD) | 4 | |
| 2721777 | 17 WASHER-HARD (11X18.5X15-MM THK) | 16 | |
| 2A4639 | 18 BOLT (3/8-16X1.625-IN) | 20 | |
| 0307949 | 19 ELBOW | 2 | |
| 2P1326 | 20 ELBOW-UNION (FLARED 90-DEG) | 2 | |
| 0307964 | 21 ELBOW | 1 | |
| 3419211 | 22 GASKET | 16 | |
| 3537954 | 23 GROMMET | 2 | |
| 3867358 | 24 HOSE AS-WATER | 2 | |
| 4554775 | 25 HOSE & TUBE AS | 2 | |
| 3867366 | 26 HOSE & TUBE AS | 2 | |
| 0307965 | 27 ELBOW | 1 | |
| 3867367 | 28 HOSE AS-WATER | 2 | |
| 3B1915 | 29 BOLT (3/8-16X1.375-IN) | 14 | |
| 5M2894 | 30 WASHER-HARD (10.2X18.5X2.5-MM THK) | 34 | |
| 5P1945 | 31 REDUCER-FLARED | 4 | |
| 5P7154 | 32 TEE-UNION | 2 | |
| 6B2882 | 33 SPACER (0.406X0.75X0.312-IN THK) | 2 | |
| 6V3251 | 34 SEAL-O-RING | 7 | |
| 7F2060 | 35 LOCKNUT (7/8-14-THD) | 2 | |
| 7N7878 | 36 PLATE-COVER | 8 | |
| 8C8554 | 37 CONNECTOR | 2 | |
| 1292327 | 38 ELBOW | 1 | |
| 8M9024 | 39 WASHER-HARD (10.2X22.5X5-MM THK) | 6 | |
| 8T1889 | 40 CLIP (SLOT) | 2 | |
| 8T1890 | 41 CLIP (TAB) | 2 | |
| 6V5839 | 42 WASHER (11X21X2.5-MM THK) | 2 | |
| 5185006 | 43 HOSE AS-WATER | 1 | |
| 5240558 | 44 HOSE AS-WATER | 1 | |
| 1387538 | 45 CONNECTOR | 2 | |
| 6V5064 | 46 SEAL-O-RING | 2 | |
| 6V5138 | 47 SEAL-O-RING | 4 | |
| 6V6609 | 48 SEAL-O-RING | 4 | |
| 9S4190 | 49 PLUG-O-RING (7/8-14-THD) | 2 |
