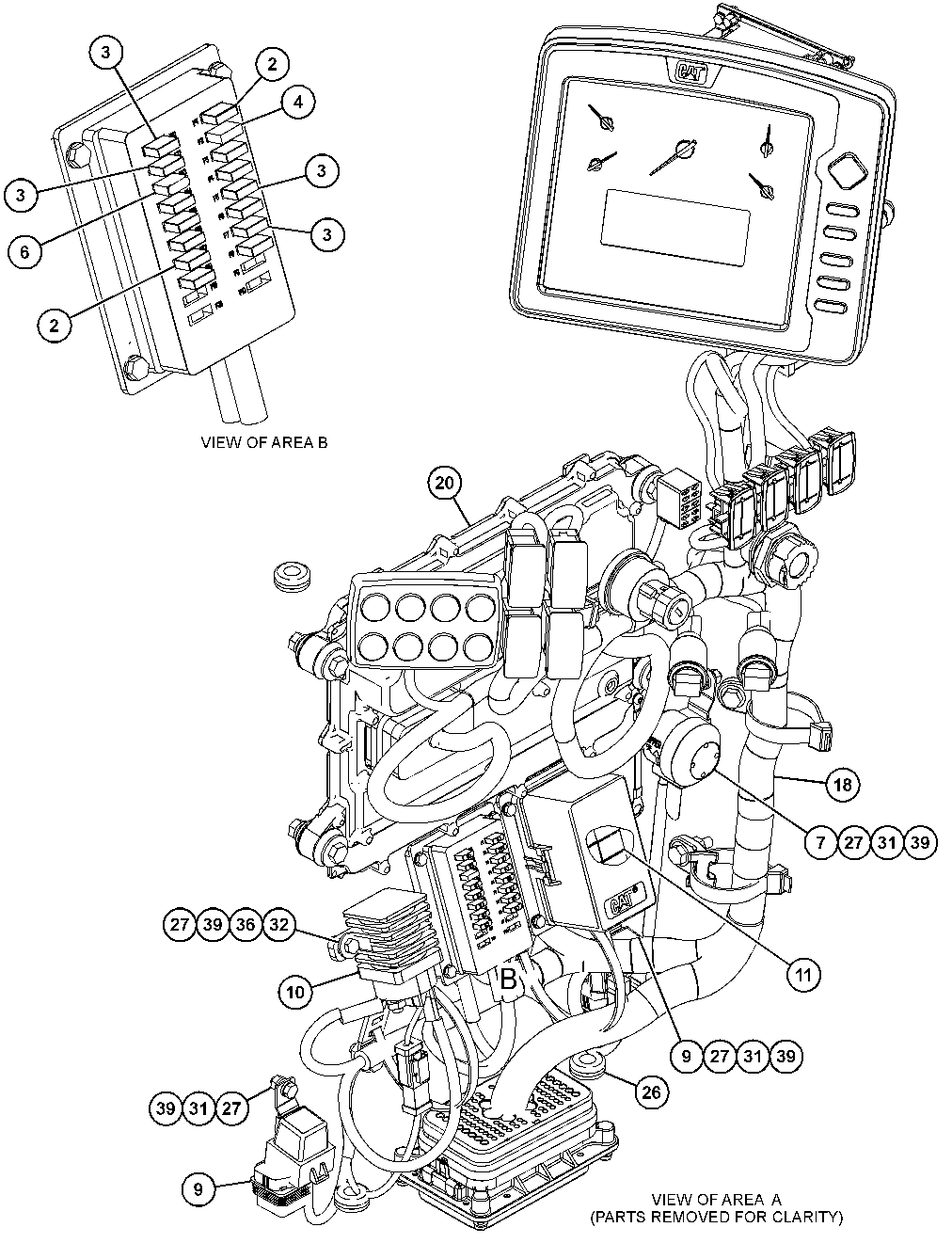

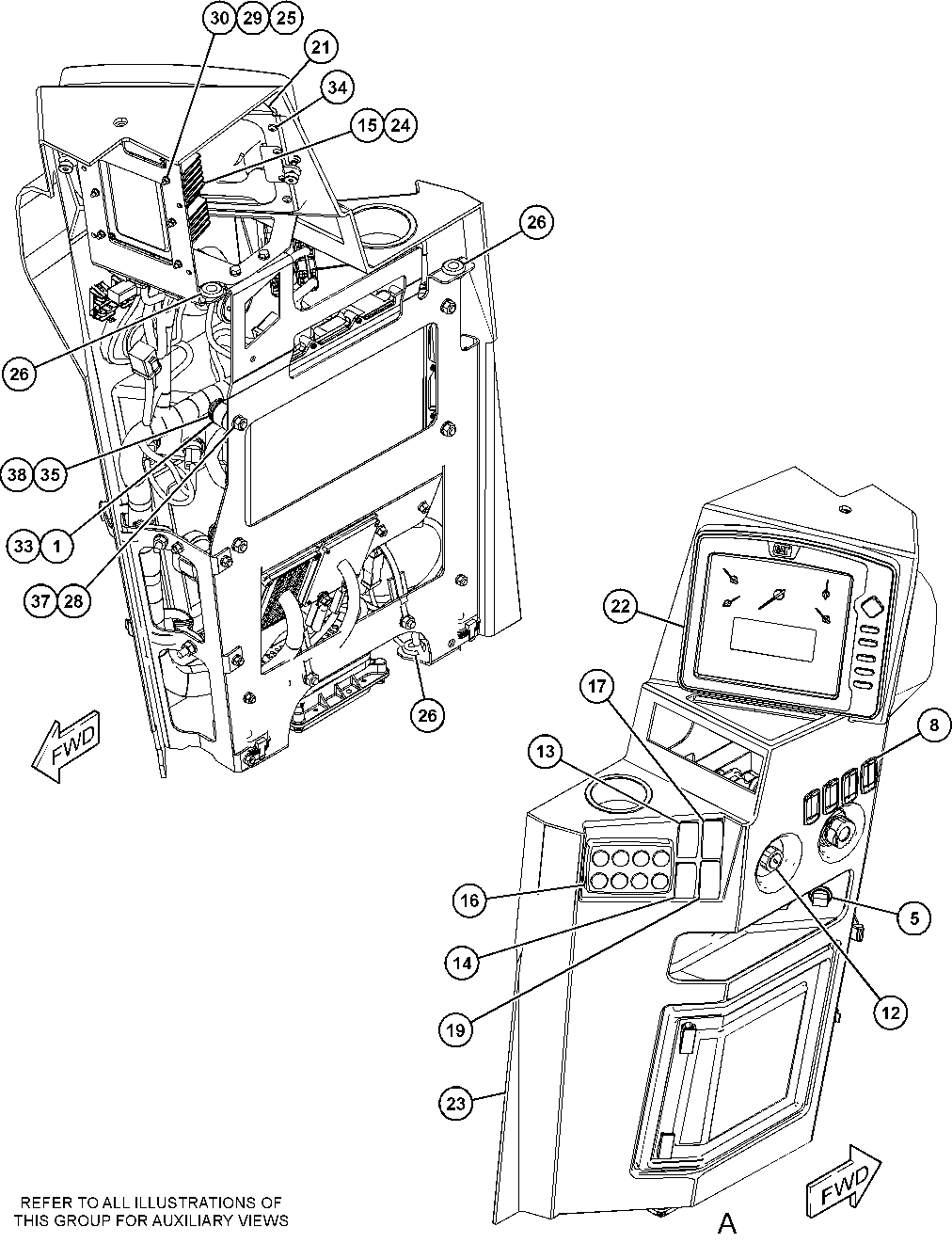

450-9020 CONSOLE GP-OPERATORS/N KB41-UP

Group No: 450-9020

Part Number	Part Name	Qty
8T9655	1 MOUNT-ISOLATION	8
1138490	2 FUSE (10-AMPERE)	10
1138491	3 FUSE (15-AMPERE)	4
1138493	4 FUSE (25-AMPERE)	1
1172311	5 SOCKET-AUXILIARY POWER (12-VOLT)	2
1243548	6 FUSE (30-AMPERE)	1
1321829	7 ALARM GP (24-VOLT)(ACTION)	1
2271057	8 PLUG	4
2313930	9 RELAY AS (24-VOLT)(WORK LIGHTS, FRONT)	2
2418368	10 SWITCH GP-MAGNETIC (24-VOLT)(MAIN POWER RELAY)	1
2482841	11 RELAY AS (24-VOLT)	10
2552752	12 SWITCH GP-START (IGNITION)(KEY)	1
2615081	13 SWITCH AS-ROCKER (BLOWER FAN SPEED)(BLOWER FAN SPEED)	1
2615083	14 SWITCH AS-ROCKER (AIR CONDITIONER, HEATER CONT)(AIR CONDITIONER, HEATER CONT)	1
1117899	GASKET	1
3487842	15 CONVERTER-POWER (24-VOLT TO 12-VOLT)	1
3579497	16 MODULE GP-KEYPAD	1
8F1326	WASHER (4.2X9.5X0.8-MM THK)	2
8T2659	LOCKNUT (M4X0.7-THD)	2
3586703	17 SWITCH AS-ROCKER (FRONT WASHER, WIPER)(WIPER, WASHER)	1
1117899	GASKET	1
3596998	18 WIRING GP-CONSOLE	1
3613177	19 SWITCH AS-ROCKER (FRONT FLOODLIGHTS)	1
1117899	GASKET	1
3656765	20 CONTROL GP-UNPROGRAMMED (MACHINE)	1
3748555	21 PLATE	1
4527454	22 CONTROL GP-UNPRGMED MONITOR	1
2764053	FILM-IDENTIFICATION (CAT)	1
4509017	23 CONSOLE GP	1
4509018	24 HARNESS AS-CONSOLE (CONSOLE)	1
0966166	25 WASHER-HARD (4.5X9X1-MM THK)	12
1403201	26 GROMMET	4
3445673	27 NUT (M6X1-THD)	5
3445674	28 NUT (M8X1.25-THD)	4
4389257	29 BOLT (M4X0.7X20-MM)	6
5C8312	30 NUT (M4X0.7-THD)	6
5C9553	31 BOLT (M6X1X16-MM)	3
5P4115	32 WASHER-HARD (7.2X19X2-MM THK)	2
6I1418	33 SPACER (8.2X12.7X28.7-MM THK)	4
6V9673	34 SCREW-MACHINE (M5X0.8X12-MM)	8
7X0818	35 BOLT (M8X1.25X45-MM)	4
8T4138	36 BOLT (M6X1X20-MM)	2
8T4224	37 WASHER-HARD (8.8X16X2-MM THK)	4
9N0869	38 WASHER-HARD (8.8X25.5X2-MM THK)	4
9X8256	39 WASHER (6.6X12X2-MM THK)	8
