System And Components

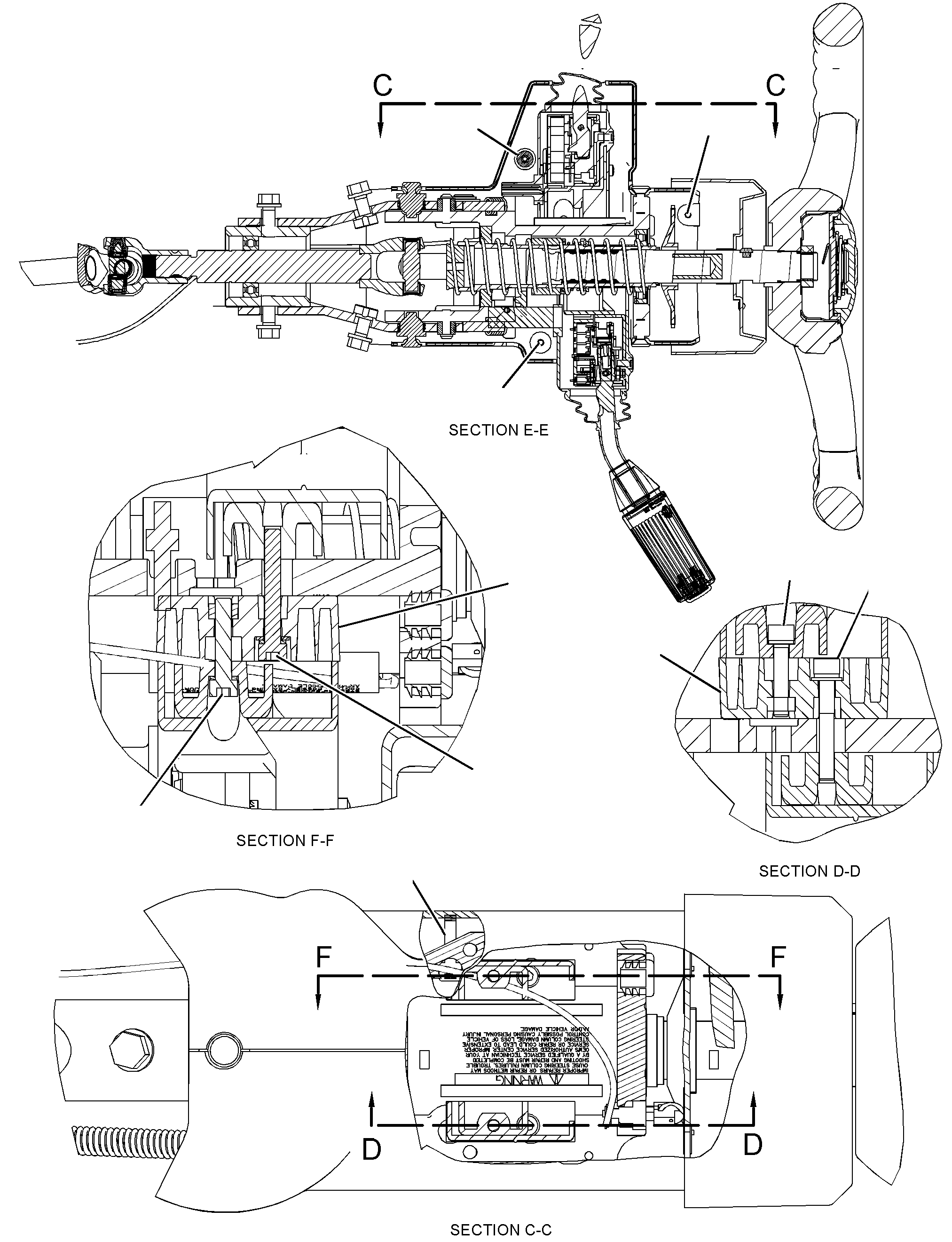

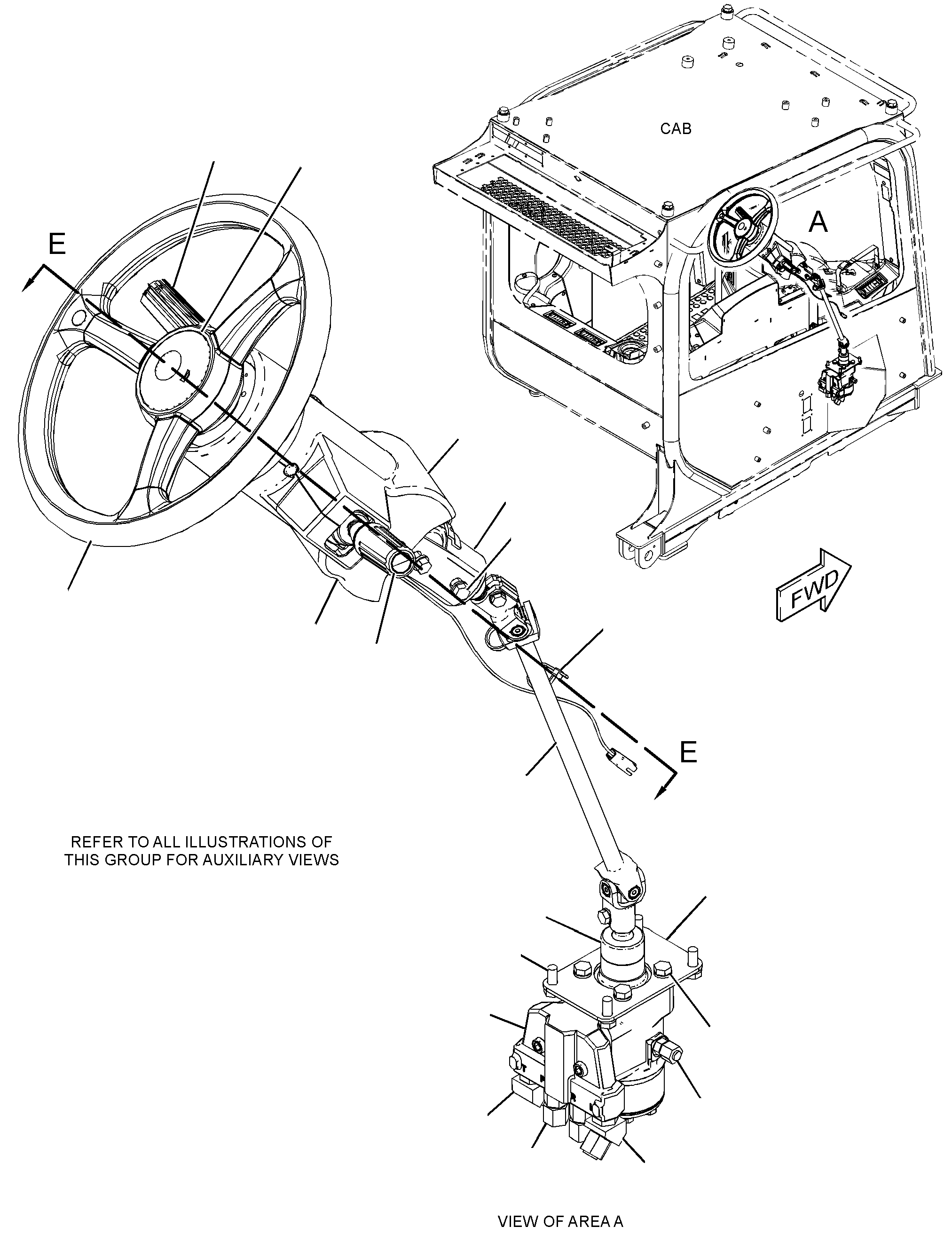

420-1690 CONTROL GP-STEERINGS/N WTP1-UP
Group No: 420-1690
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2999241 | 1 SWITCH AS-LEVER (BRAKE RETARDER)(RETARDER LEVER) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 4 | |
| 8T8737 | PLUG-SEAL | 2 | |
| 1519275 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 3228568 | 2 BUTTON AS-HORN | 1 | |
| 3399363 | 3 SWITCH AS-MULTIFUNCTION (TURN SIGNAL, WIPER, WASHER) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 12 | |
| 1743091 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 3635912 | 4 STEERING WHEEL AS | 1 | |
| 3636423 | PLUG | 1 | |
| 3914386 | 5 MOUNT | 2 | |
| 3918600 | 6 COVER AS | 1 | |
| 3918601 | 7 COVER | 1 | |
| 3933602 | 8 STEERING COLUMN GP-ADJUSTABLE | 1 | |
| 4245641 | 9 SHAFT AS | 1 | |
| 4246370 | 10 PLATE | 1 | |
| 4319585 | 11 PUMP GP-METERING (HMU) | 1 | |
| 4457917 | 12 ADAPTER AS | 1 | |
| 0965969 | 13 BOLT-SOCKET HEAD (M5X0.8X25-MM) | 2 | |
| 1388454 | 14 SCREW-TRUSS HEAD (M4X0.7X10-MM) | 3 | |
| 1488326 | 15 CONNECTOR AS | 1 | |
| 6V9872 | CONNECTOR | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488354 | 16 ELBOW AS | 2 | |
| 6V9002 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1645608 | 17 CONNECTOR AS | 2 | |
| 8T1687 | CONNECTOR | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 3B4502 | 18 LOCKWASHER | 4 | |
| 3S2093 | 19 STRAP-CABLE | 3 | |
| 5C2874 | 20 NUT (M5X0.8-THD) | 2 | |
| 6V9830 | 21 CAP (ORFS) | 4 | |
| 7X3183 | 22 BOLT (3/8-24X1-IN) | 4 | |
| 8T0328 | 23 WASHER-HARD (5.5X10X1-MM THK) | 2 | |
| 8T4136 | 24 BOLT (M10X1.5X25-MM) | 8 | |
| 8T4896 | 25 WASHER-HARD (10.2X18.5X2.5-MM THK) | 12 | |
| 8T6699 | 26 BOLT-SOCKET HEAD (M5X0.8X35-MM) | 2 | |
| 6V9829 | 27 CAP (ORFS) | 1 |
