System And Components

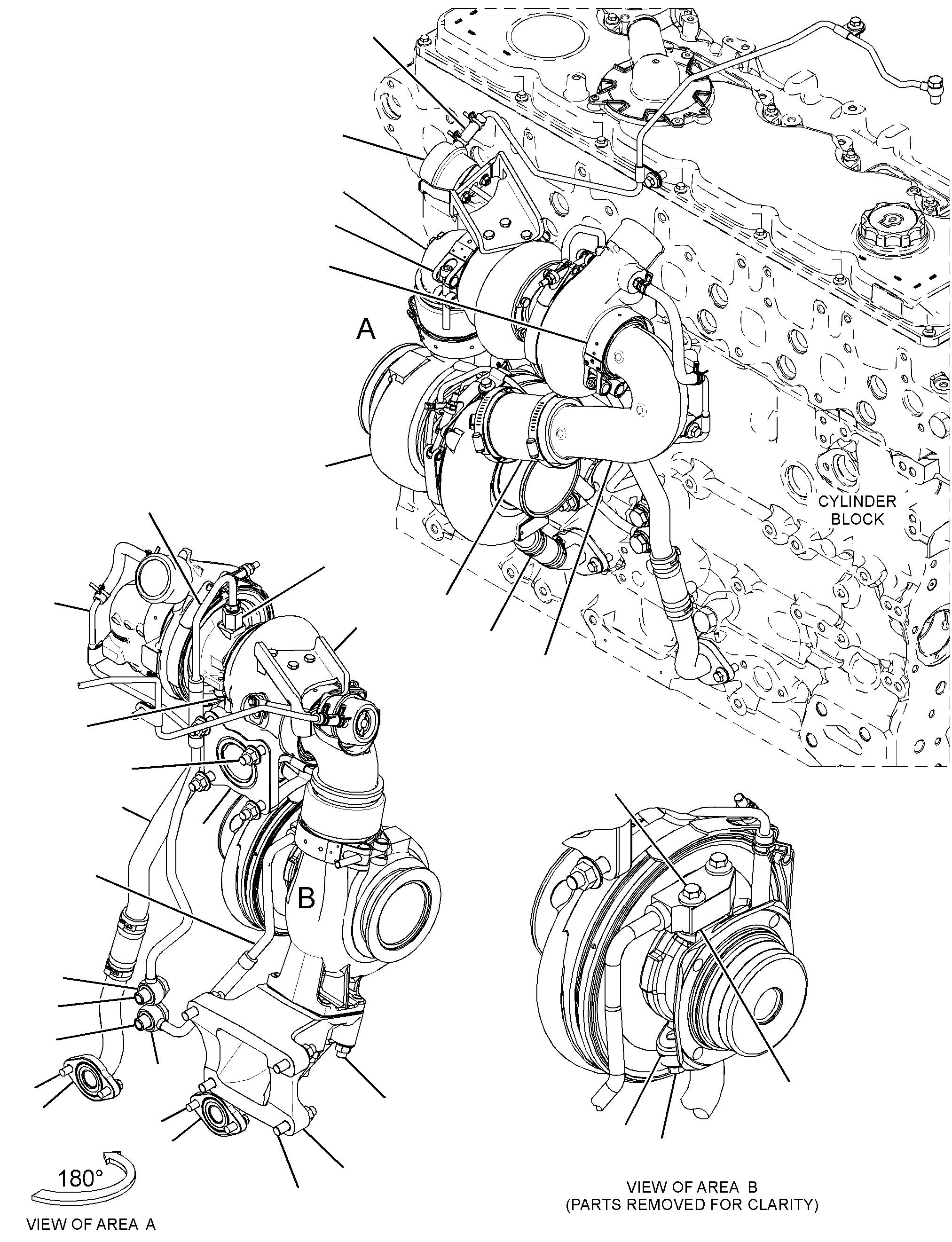

355-1038 TURBOCHARGER GPPART OF 481-5676 ENGINE AR-CORE
Group No: 355-1038
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1015115 | 1 STUD (M10X1.5X40-MM) | 4 | |
| 1068916 | 2 BOLT (M6X1X16-MM) | 2 | |
| 1243815 | 3 BOLT (M8X1.25X16-MM) | 6 | |
| 2780017 | 4 GASKET | 2 | |
| 3179229 | 5 CLAMP-HOSE | 2 | |
| 1978418 | 6 GASKET | 1 | |
| 3293723 | 7 GASKET | 1 | |
| 3426433 | 8 DUCT | 1 | |
| 3435908 | 9 CLAMP-V BAND | 2 | |
| 3435910 | 10 CLAMP-V BAND | 1 | |
| 3508541 | 11 BRACKET | 1 | |
| 3562122 | 12 DUCT (COMPRESSOR) | 1 | |
| 3565345 | 13 HOSE | 1 | |
| 4508002 | 14 LINE AS (SUPPLY, HIGH PRESSURE TURBO) | 1 | |
| 3P0647 | 14A SEAL-O-RING | 2 | |
| 9N1756 | 14B SEAL-O-RING | 1 | |
| 4508003 | 15 LINES GP-TURBOCHARGER OIL (SUPPLY, LOW PRESSURE TURBO) | 1 | |
| 3P0647 | 15A SEAL-O-RING | 2 | |
| 4322374 | 16 LINE AS (DRAIN, LOW PRESSURE TURBO) | 1 | |
| 3570617 | 17 GASKET | 1 | |
| 4430317 | 18 TURBOCHARGER AS | 1 | |
| 5081306 | 18A ACTUATOR AS | 1 | |
| 3590128 | 19 TURBOCHARGER | 1 | |
| 3601965 | 20 LINES GP-TURBOCHARGER AIR | 1 | |
| 4322376 | 21 LINE AS (DRAIN, HIGH PRESSURE TURBO) | 1 | |
| 3659909 | 22 LINES GP-TURBOCHARGER AIR (EXHAUST BALANCE) | 1 | |
| 1031912 | 23 STUD (M10X1.5X30-MM) | 4 | |
| 1978419 | 24 GASKET | 1 | |
| 3484636 | 25 STUD (M10X1.5X70-MM) | 4 | |
| 6I0217 | 26 BOLT (M8X1.25X20-MM) | 4 | |
| 6I0254 | 27 BOLT (M8X1.25X30-MM) | 2 | |
| 6I0563 | 28 NUT (M10X1.5-THD) | 12 | |
| 4508004 | 29 ADAPTER AS | 1 | |
| 0335879 | 29A SEAL-O-RING | 1 | |
| 4510548 | 30 BOLT | 2 |
