System And Components

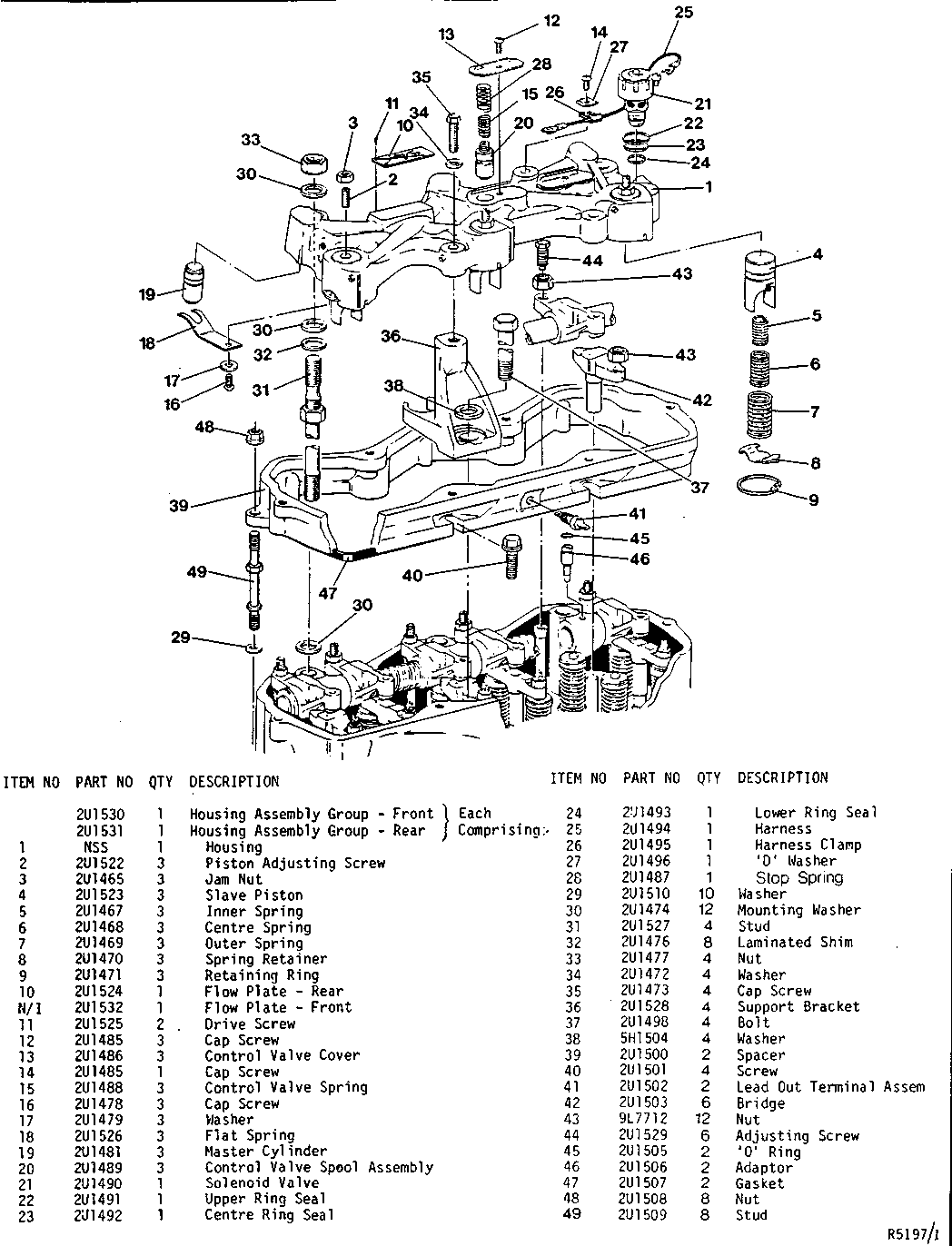

6U2825 ENGINE BRAKE GROUP
Group No: 6U2825
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2U1530 | HOUSING ASSEMBLY GROUP - FRONT | 1 | |
| 2U1531 | HOUSING ASSEMBLY GROUP - REAR | 1 | |
| NSS | 1 HOUSING | 1 | |
| 2U1522 | 2 PISTON ADJUSTING SCREW | 3 | |
| 2U1465 | 3 JAM NUT | 3 | |
| 2U1523 | 4 SLAVE PISTON | 3 | |
| 2U1467 | 5 INNER SPRING | 3 | |
| 2U1468 | 6 CENTRE SPRING | 3 | |
| 2U1469 | 7 OUTER SPRING | 3 | |
| 2U1470 | 8 SPRING RETAINER | 3 | |
| 2U1471 | 9 RETAINING RING | 3 | |
| 2U1524 | 10 FLOW PLATE - REAR | 1 | |
| 2U1532 | FLOW PLATE - FRONT | 1 | |
| 2U1525 | 11 DRIVE SCREW | 2 | |
| 2U1485 | 12 CAP SCREW | 3 | |
| 2U1486 | 13 CONTROL VALVE COVER | 3 | |
| 2U1485 | 14 CAP SCREW | 1 | |
| 2U1488 | 15 CONTROL VALVE SPRING | 3 | |
| 2U1478 | 16 CAP SCREW | 3 | |
| 2U1479 | 17 WASHER | 3 | |
| 2U1526 | 18 FLAT SPRING | 3 | |
| 2U1481 | 19 MASTER CYLINDER | 3 | |
| 2U1489 | 20 CONTROL VALVE SPOOL ASSEMBLY | 3 | |
| 2U1490 | 21 SOLENOID VALVE | 1 | |
| 2U1491 | 22 UPPER RING SEAL | 1 | |
| 2U1492 | 23 CENTRE RING SEAL | 1 | |
| 2U1493 | 24 LOWER RING SEAL | 1 | |
| 2U1494 | 25 HARNESS | 1 | |
| 2U1495 | 26 HARNESS CLAMP | 1 | |
| 2U1496 | 27 ''D'' WASHER | 1 | |
| 2U1487 | 28 STOP SPRING | 1 | |
| 2U1510 | 29 WASHER | 10 | |
| 2U1474 | 30 MOUNTING WASHER | 12 | |
| 2U1527 | 31 STUD | 4 | |
| 2U1476 | 32 LAMINATED SHIM | 8 | |
| 2U1477 | 33 NUT | 4 | |
| 2U1472 | 34 WASHER | 4 | |
| 2U1473 | 35 CAP SCREW | 4 | |
| 2U1528 | 36 SUPPORT BRACKET | 4 | |
| 2U1498 | 37 BOLT | 4 | |
| 5H1504 | 38 WASHER | 4 | |
| 2U1500 | 39 SPACER | 2 | |
| 2U1501 | 40 SCREW | 4 | |
| 2U1502 | 41 LEAD OUT TERMINAL ASSEM | 2 | |
| 2U1503 | 42 BRIDGE | 6 | |
| 9L7712 | 43 NUT | 12 | |
| 2U1529 | 44 ADJUSTING SCREW | 6 | |
| 2U1505 | 45 ''O'' RING | 2 | |
| 2U1506 | 46 ADAPTOR | 2 | |
| 2U1507 | 47 GASKET | 2 | |
| 2U1508 | 48 NUT | 8 | |
| 2U1509 | 49 STUD | 8 |
