System And Components

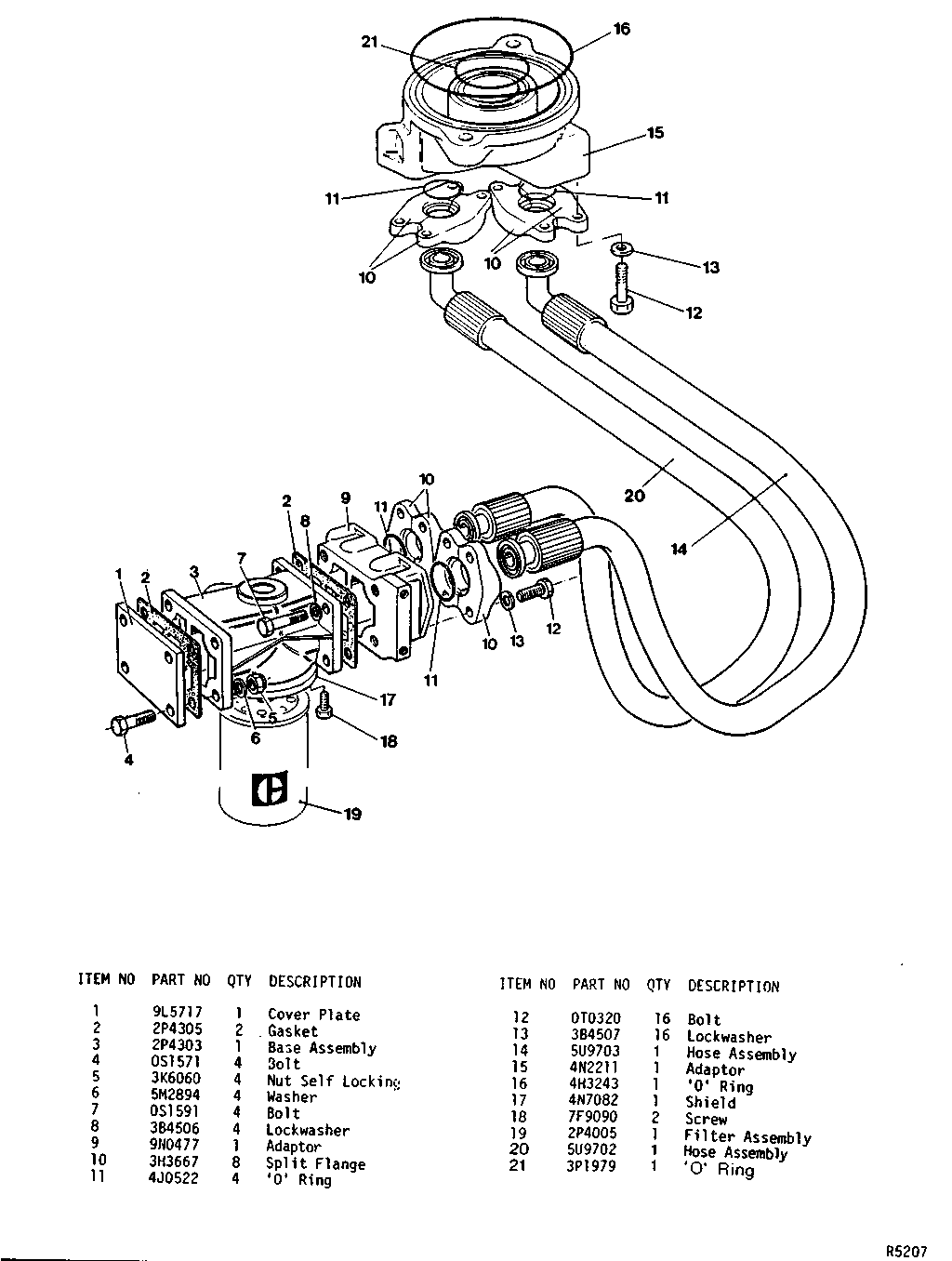

ENGINE OIL FILTER AND LINES GROUP
Group No: ENGINE
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9L5717 | 1 COVER PLATE | 1 | |
| 2P4305 | 2 GASKET | 2 | |
| 2P4303 | 3 BASE ASSEMBLY | 1 | |
| 0S1571 | 4 BOLT | 4 | |
| 3K6060 | 5 NUT SELF LOCKING | 4 | |
| 5M2894 | 6 WASHER | 4 | |
| 0S1591 | 7 BOLT | 4 | |
| 3B4506 | 8 LOCKWASHER | 4 | |
| 9N0477 | 9 ADAPTOR | 1 | |
| 3H3667 | 10 SPLIT FLANGE | 8 | |
| 4J0522 | 11 ''O'' RING | 4 | |
| 0T0320 | 12 BOLT | 16 | |
| 3B4507 | 13 LOCKWASHER | 16 | |
| 5U9703 | 14 HOSE ASSEMBLY | 1 | |
| 4N2211 | 15 ADAPTOR | 1 | |
| 4H3243 | 16 ''O'' RING | 1 | |
| 4N7082 | 17 SHIELD | 1 | |
| 7F9090 | 18 SCREW | 2 | |
| 2P4005 | 19 FILTER ASSEMBLY | 1 | |
| 5U9702 | 20 HOSE ASSEMBLY | 1 | |
| 3P1979 | 21 ''O'' RING | 1 |
