System And Components

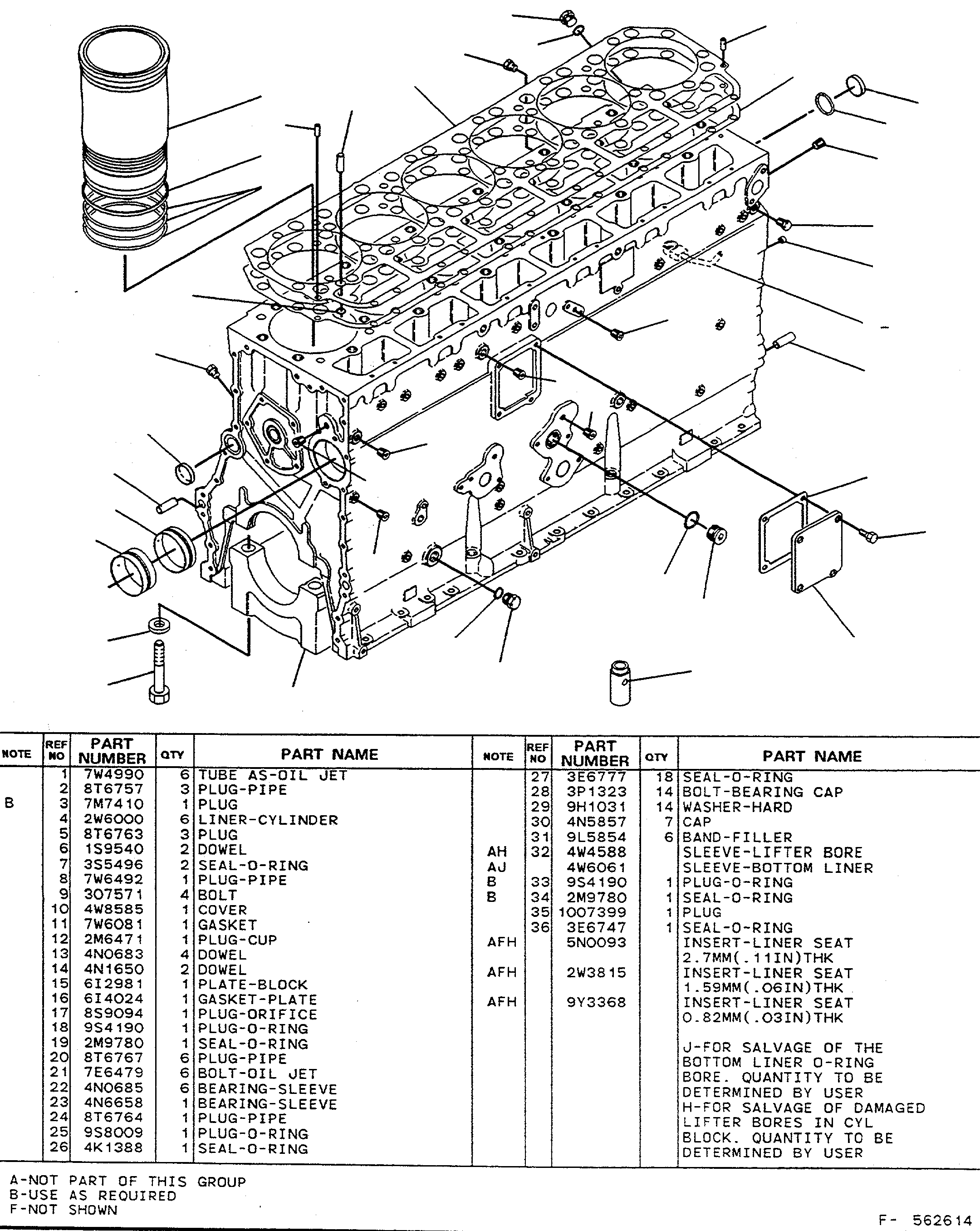

8N9267 CYLINDER BLOCK GP*RField Replacement Order 4P3720-Page 6.01
Group No: 8N9267
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7W4990 | 1 TUBE AS-OIL JET | 6 | |
| 8T6757 | 2 PLUG-PIPE | 3 | |
| 7M7410 | 3 PLUG | 1 | |
| 2W6000 | 4 LINER-CYLINDER | 6 | |
| 8T6763 | 5 PLUG | 3 | |
| 1S9540 | 6 DOWEL | 2 | |
| 3S5496 | 7 SEAL-O-RING | 2 | |
| 7W6492 | 8 PLUG-PIPE | 1 | |
| 0307571 | 9 BOLT | 4 | |
| 4W8585 | 10 COVER | 1 | |
| 7W6081 | 11 GASKET | 1 | |
| 2M6471 | 12 PLUG-CUP | 1 | |
| 4N0683 | 13 DOWEL | 4 | |
| 4N1650 | 14 DOWEL | 2 | |
| 6I2981 | 15 PLATE-BLOCK | 1 | |
| 6I4024 | 16 GASKET-PLATE | 1 | |
| 8S9094 | 17 PLUG-ORIFICE | 1 | |
| 9S4190 | 18 PLUG-O-RING | 1 | |
| 2M9780 | 19 SEAL-O-RING | 1 | |
| 8T6767 | 20 PLUG-PIPE | 6 | |
| 7E6479 | 21 BOLT-OIL JET | 6 | |
| 4N0685 | 22 BEARING-SLEEVE | 6 | |
| 4N6658 | 23 BEARING-SLEEVE | 1 | |
| 8T6764 | 24 PLUG-PIPE | 1 | |
| 9S8009 | 25 PLUG-O-RING | 1 | |
| 4K1388 | 26 SEAL-O-RING | 1 | |
| 3E6777 | 27 SEAL-O-RING | 18 | |
| 3P1323 | 28 BOLT-BEARING CAP | 14 | |
| 9H1031 | 29 WASHER-HARD | 14 | |
| 4N5857 | 30 CAP | 7 | |
| 9L5854 | 31 BAND-FILLER | 6 | |
| 4W4588 | 32 SLEEVE-LIFTER BORE | NULL | |
| 4W6061 | SLEEVE-BOTTOM LINER | NULL | |
| 9S4190 | 33 PLUG-O-RING | 1 | |
| 2M9780 | 34 SEAL-O-RING | 1 | |
| 1007399 | 35 PLUG | 1 | |
| 3E6747 | 36 SEAL-O-RING | 1 | |
| 5N0093 | INSERT-LINER SEAT 2.7MM(.11IN)THK | NULL | |
| 2W3815 | INSERT-LINER SEAT 1.59MM(.06IN)THK | NULL | |
| 9Y3368 | INSERT-LINER SEAT 0.82MM(.03IN)THK | NULL |
