System And Components

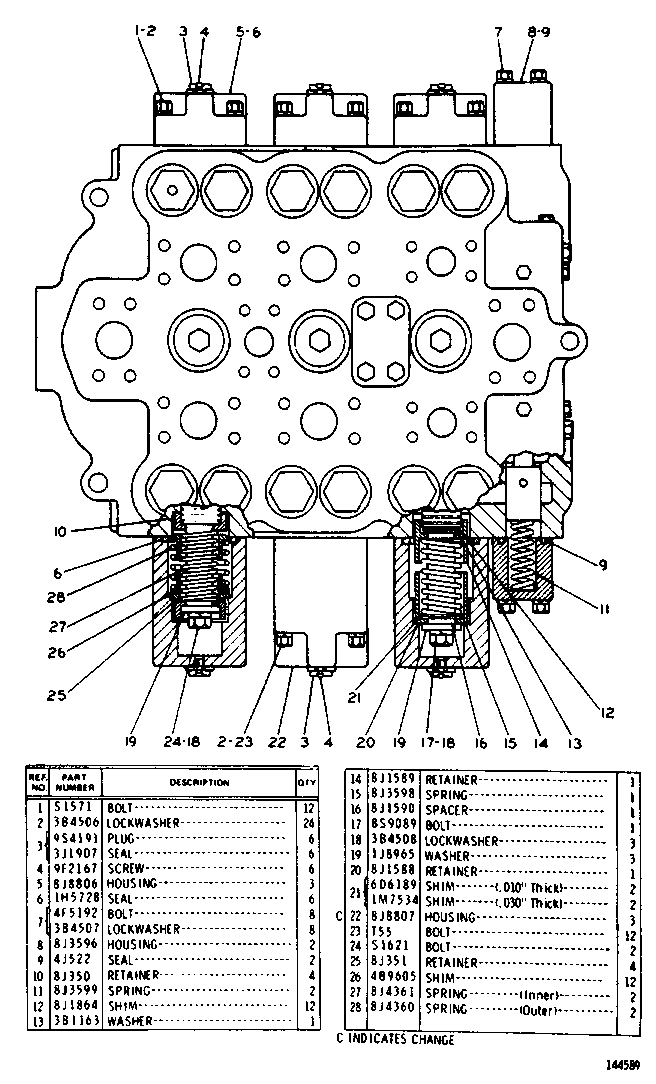

8J3887 CONTROL VALVE GROUP--3 Stem--Part 1 of 2Serial No. 51U188 to 51U202 inclusive
Group No: 8J3887
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0S1571 | 1 BOLT | 12 | |
| 3B4506 | 2 LOCKWASHER | 24 | |
| 9S4191 | 3 PLUG | 6 | |
| 3J1907 | SEAL | 6 | |
| 9F2167 | 4 SCREW | 6 | |
| 8J8806 | 5 HOUSING | 3 | |
| 1H5728 | 6 SEAL | 6 | |
| 4F5192 | 7 BOLT | 8 | |
| 3B4507 | LOCKWASHER | 8 | |
| 8J3596 | 8 HOUSING | 2 | |
| 4J0522 | 9 SEAL | 2 | |
| 8J0350 | 10 RETAINER | 4 | |
| 8J3599 | 11 SPRING | 2 | |
| 8J1864 | 12 SHIM | 12 | |
| 3B1163 | 13 WASHER | 1 | |
| 8J1589 | 14 RETAINER | 1 | |
| 8J3598 | 15 SPRING | 1 | |
| 8J1590 | 16 SPACER | 1 | |
| 8S9089 | 17 BOLT | 1 | |
| 3B4508 | 18 LOCKWASHER | 3 | |
| 1J8965 | 19 WASHER | 3 | |
| 8J1588 | 20 RETAINER | 1 | |
| 6D6189 | 21 SHIM (.010" Thick) | 2 | |
| 1M7534 | SHIM (.030" Thick) | 2 | |
| 8J8807 | 22 HOUSING | 3 | |
| 0T0055 | 23 BOLT | 12 | |
| 0S1621 | 24 BOLT | 2 | |
| 8J0351 | 25 RETAINER | 4 | |
| 4B9605 | 26 SHIM | 12 | |
| 8J4361 | 27 SPRING (Inner) | 2 | |
| 8J4360 | 28 SPRING (Outer) | 2 |
