System And Components

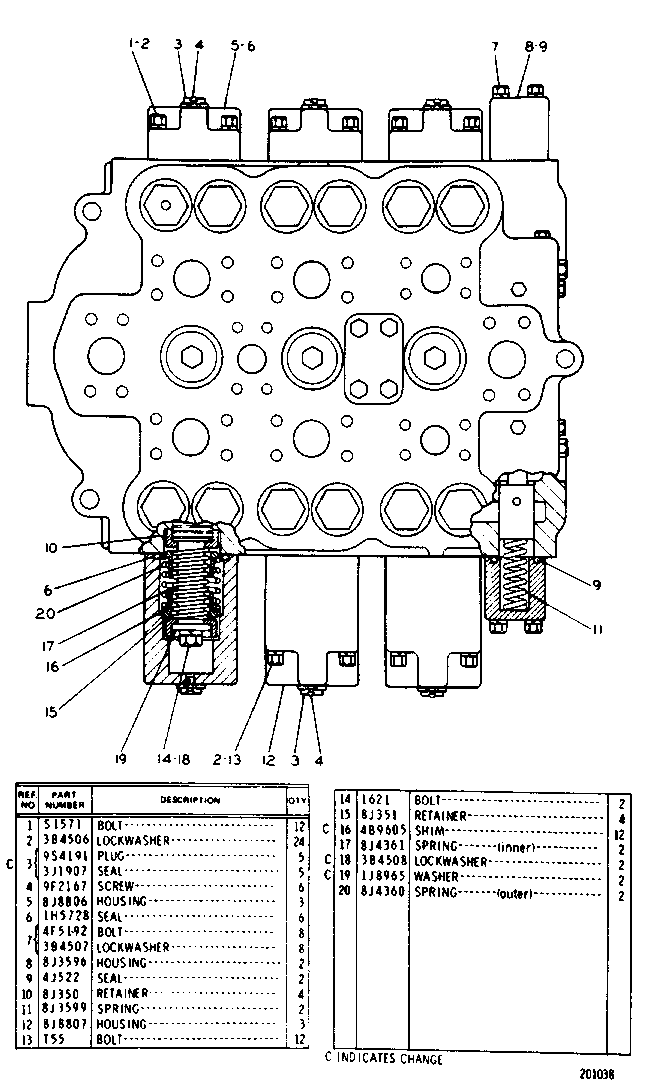

8J3887 CONTROL VALVE GROUP--3 Stem--Part 1 of 2Serial No. 51U203 to 51U388 inclusive
Group No: 8J3887
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0S1571 | 1 BOLT | 12 | |
| 3B4506 | 2 LOCKWASHER | 24 | |
| 9S4191 | 3 PLUG | 5 | |
| 3J1907 | SEAL | 5 | |
| 9F2167 | 4 SCREW | 6 | |
| 8J8806 | 5 HOUSING | 3 | |
| 1H5728 | 6 SEAL | 6 | |
| 4F5192 | 7 BOLT | 8 | |
| 3B4507 | LOCKWASHER | 8 | |
| 8J3596 | 8 HOUSING | 2 | |
| 4J0522 | 9 SEAL | 2 | |
| 8J0350 | 10 RETAINER | 4 | |
| 8J3599 | 11 SPRING | 2 | |
| 8J8807 | 12 HOUSING | 3 | |
| 0T0055 | 13 BOLT | 12 | |
| 0001621 | 14 BOLT | 2 | |
| 8J0351 | 15 RETAINER | 4 | |
| 4B9605 | 16 SHIM | 12 | |
| 8J4361 | 17 SPRING (inner) | 2 | |
| 3B4508 | 18 LOCKWASHER | 2 | |
| 1J8965 | 19 WASHER | 2 | |
| 8J4360 | 20 SPRING (outer) | 2 |
