System And Components

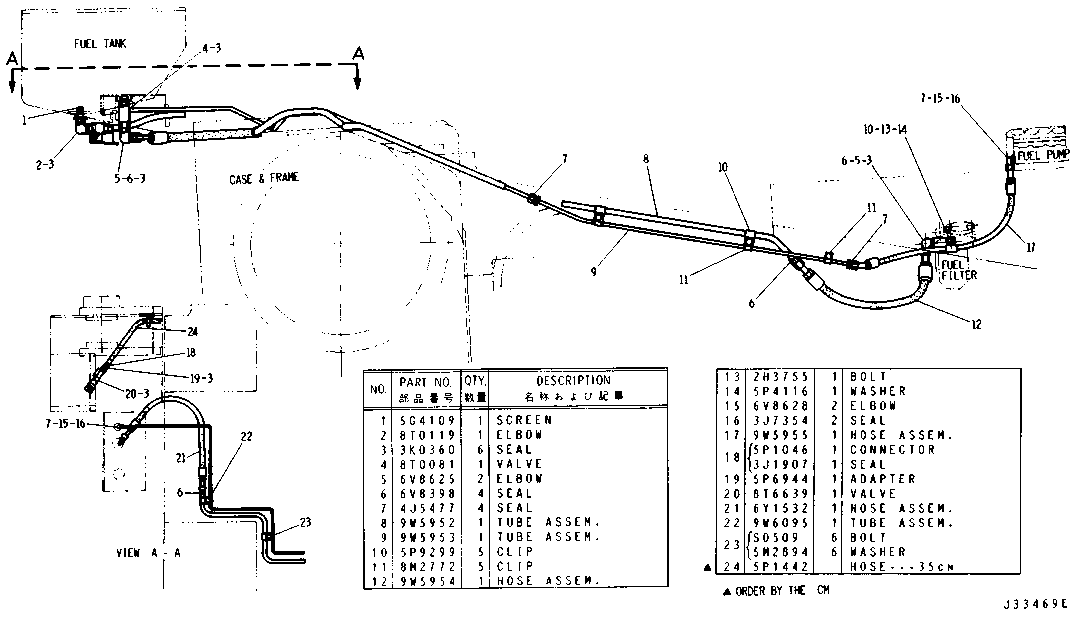

FUEL LINES (9W4717 N/S)
Group No: FUEL
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5G4109 | 1 SCREEN | 1 | |
| 8T0119 | 2 ELBOW | 1 | |
| 3K0360 | 3 SEAL | 6 | |
| 8T0081 | 4 VALVE | 1 | |
| 6V8625 | 5 ELBOW | 2 | |
| 6V8398 | 6 SEAL | 4 | |
| 4J5477 | 7 SEAL | 4 | |
| 9W5952 | 8 TUBE ASSEM. | 1 | |
| 9W5953 | 9 TUBE ASSEM. | 1 | |
| 5P9299 | 10 CLIP | 5 | |
| 8M2772 | 11 CLIP | 5 | |
| 9W5954 | 12 HOSE ASSEM. | 1 | |
| 2H3755 | 13 BOLT | 1 | |
| 5P4116 | 14 WASHER | 1 | |
| 6V8628 | 15 ELBOW | 2 | |
| 3J7354 | 16 SEAL | 2 | |
| 9W5955 | 17 HOSE ASSEM. | 1 | |
| 5P1046 | 18 CONNECTOR | 1 | |
| 3J1907 | SEAL | 1 | |
| 5P6944 | 19 ADAPTER | 1 | |
| 8T6639 | 20 VALVE | 1 | |
| 6Y1532 | 21 HOSE ASSEM. | 1 | |
| 9W6095 | 22 TUBE ASSEM. | 1 | |
| 0S0509 | 23 BOLT | 6 | |
| 5M2894 | WASHER | 6 | |
| 5P1442 | 24 HOSE 35cm | NULL |
