System And Components

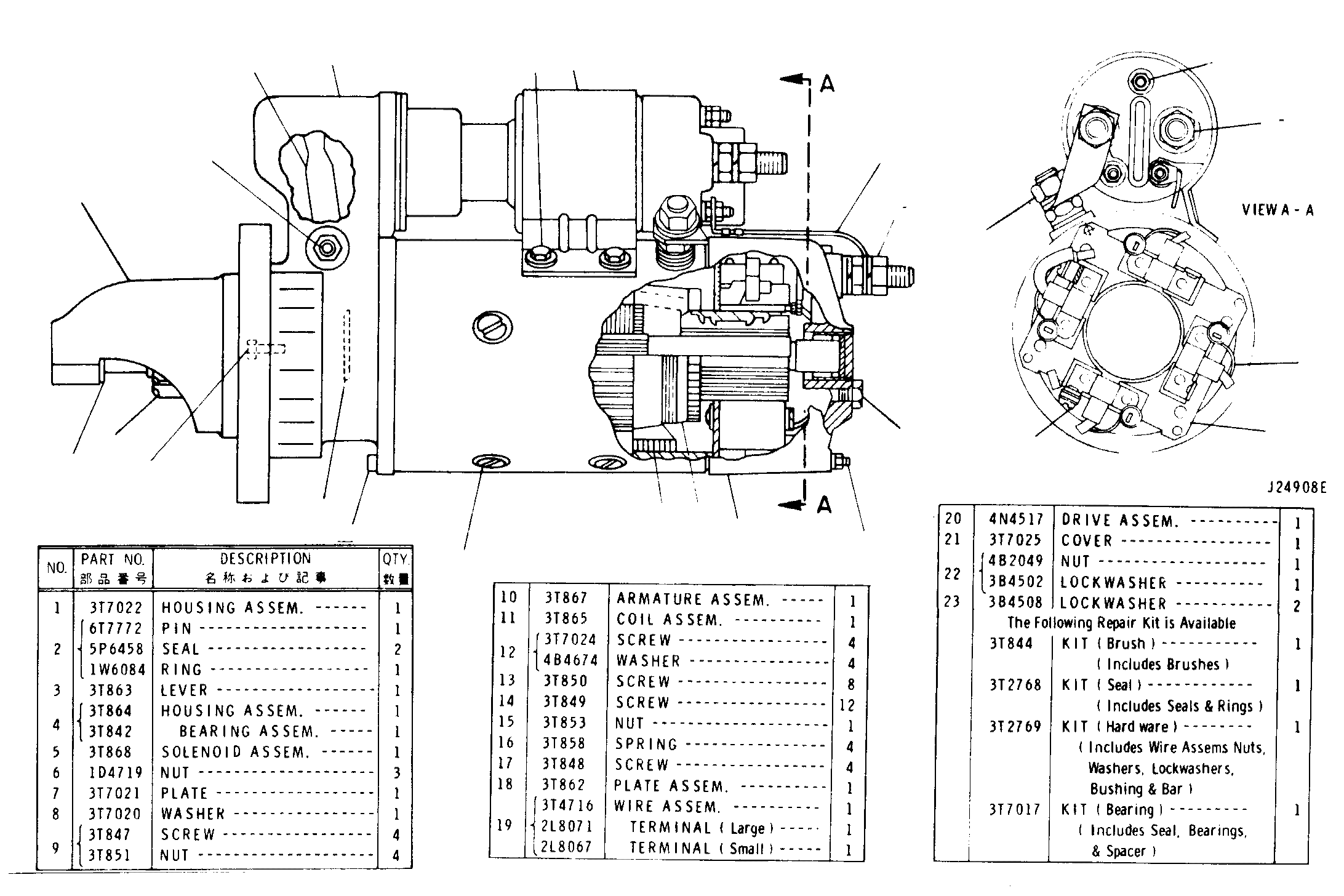

STARTING MOTOR (3T6305 N/S)--Robert BoschPart of 4N3181 Starting Motor Group
Group No: STARTING
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3T7022 | 1 HOUSING ASSEM. | 1 | |
| 6T7772 | 2 PIN | 1 | |
| 5P6458 | SEAL | 2 | |
| 1W6084 | RING | 1 | |
| 3T0863 | 3 LEVER | 1 | |
| 3T0864 | 4 HOUSING ASSEM. | 1 | |
| 3T0842 | BEARING ASSEM. | 1 | |
| 3T0868 | 5 SOLENOID ASSEM. | 1 | |
| 1D4719 | 6 NUT | 3 | |
| 3T7021 | 7 PLATE | 1 | |
| 3T7020 | 8 WASHER | 1 | |
| 3T0847 | 9 SCREW | 4 | |
| 3T0851 | NUT | 4 | |
| 3T0867 | 10 ARMATURE ASSEM. | 1 | |
| 3T0865 | 11 COIL ASSEM. | 1 | |
| 3T7024 | 12 SCREW | 4 | |
| 4B4674 | WASHER | 4 | |
| 3T0850 | 13 SCREW | 8 | |
| 3T0849 | 14 SCREW | 12 | |
| 3T0853 | 15 NUT | 1 | |
| 3T0858 | 16 SPRING | 4 | |
| 3T0848 | 17 SCREW | 4 | |
| 3T0862 | 18 PLATE ASSEM. | 1 | |
| 3T4716 | 19 WIRE ASSEM. | 1 | |
| 2L8071 | TERMINAL (Large) | 1 | |
| 2L8067 | TERMINAL (Small) | 1 | |
| 4N4517 | 20 DRIVE ASSEM. | 1 | |
| 3T7025 | 21 COVER | 1 | |
| 4B2049 | 22 NUT | 1 | |
| 3B4502 | LOCKWASHER | 1 | |
| 3B4508 | 23 LOCKWASHER | 2 | |
| 3T0844 | KIT (Brush) | 1 | |
| 3T2768 | KIT (Seal) | 1 | |
| 3T2769 | KIT (Hardware) | 1 | |
| 3T7017 | KIT (Bearing) | 1 |
