System And Components

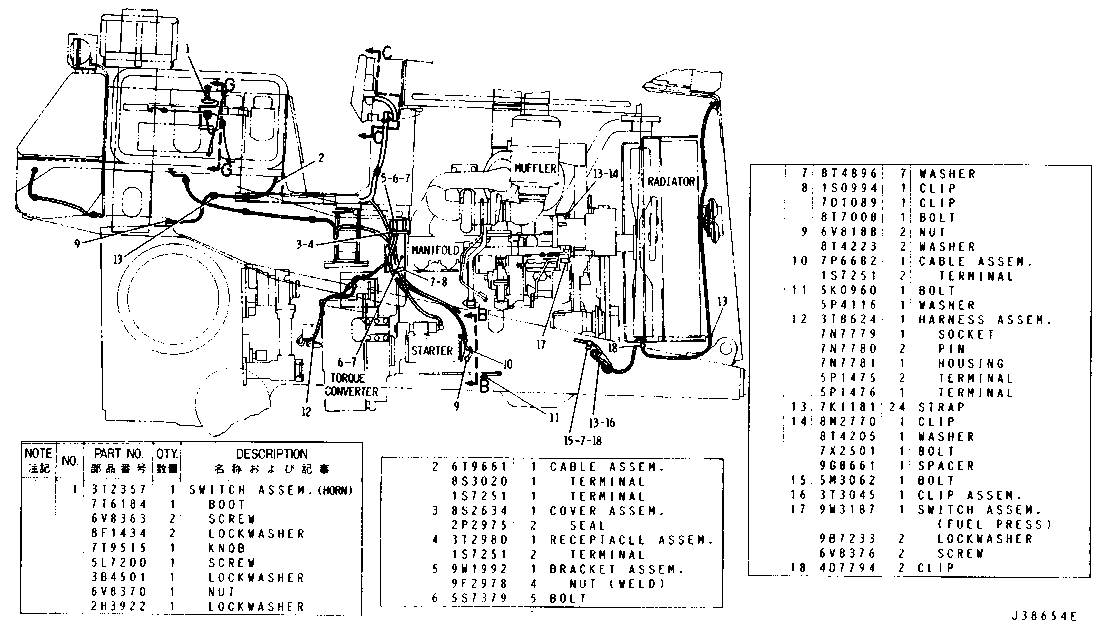

BATTERY AND WIRING (9W4719 N/S)--Part 1 of 6
Group No: BATTERY
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3T2357 | 1 SWITCH ASSEM. (HORN) | 1 | |
| 7T6184 | BOOT | 1 | |
| 6V8363 | SCREW | 2 | |
| 8F1434 | LOCKWASHER | 2 | |
| 7T9515 | KNOB | 1 | |
| 5L7200 | SCREW | 1 | |
| 3B4501 | LOCKWASHER | 1 | |
| 6V8370 | NUT | 1 | |
| 2H3922 | LOCKWASHER | 1 | |
| 6T9661 | 2 CABLE ASSEM. | 1 | |
| 8S3020 | TERMINAL | 1 | |
| 1S7251 | TERMINAL | 1 | |
| 8S2634 | 3 COVER ASSEM. | 1 | |
| 2P2975 | SEAL | 2 | |
| 3T2980 | 4 RECEPTACLE ASSEM. | 1 | |
| 1S7251 | TERMINAL | 2 | |
| 9W1992 | 5 BRACKET ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 4 | |
| 5S7379 | 6 BOLT | 5 | |
| 8T4896 | 7 WASHER | 7 | |
| 1S0994 | 8 CLIP | 1 | |
| 7D1089 | CLIP | 1 | |
| 8T7008 | BOLT | 1 | |
| 6V8188 | 9 NUT | 2 | |
| 8T4223 | WASHER | 2 | |
| 7P6682 | 10 CABLE ASSEM. | 1 | |
| 1S7251 | TERMINAL | 2 | |
| 5K0960 | 11 BOLT | 1 | |
| 5P4116 | WASHER | 1 | |
| 3T8624 | 12 HARNESS ASSEM. | 1 | |
| 7N7779 | SOCKET | 1 | |
| 7N7780 | PIN | 2 | |
| 7N7781 | HOUSING | 1 | |
| 5P1475 | TERMINAL | 2 | |
| 5P1476 | TERMINAL | 1 | |
| 7K1181 | 13 STRAP | 24 | |
| 8M2770 | 14 CLIP | 1 | |
| 8T4205 | WASHER | 1 | |
| 7X2501 | BOLT | 1 | |
| 9G8661 | SPACER | 1 | |
| 5M3062 | 15 BOLT | 1 | |
| 3T3045 | 16 CLIP ASSEM. | 1 | |
| 9W3187 | 17 SWITCH ASSEM. | 1 | |
| 9B7233 | LOCKWASHER | 2 | |
| 6V8376 | SCREW | 2 | |
| 4D7794 | 18 CLIP | 2 |
