System And Components

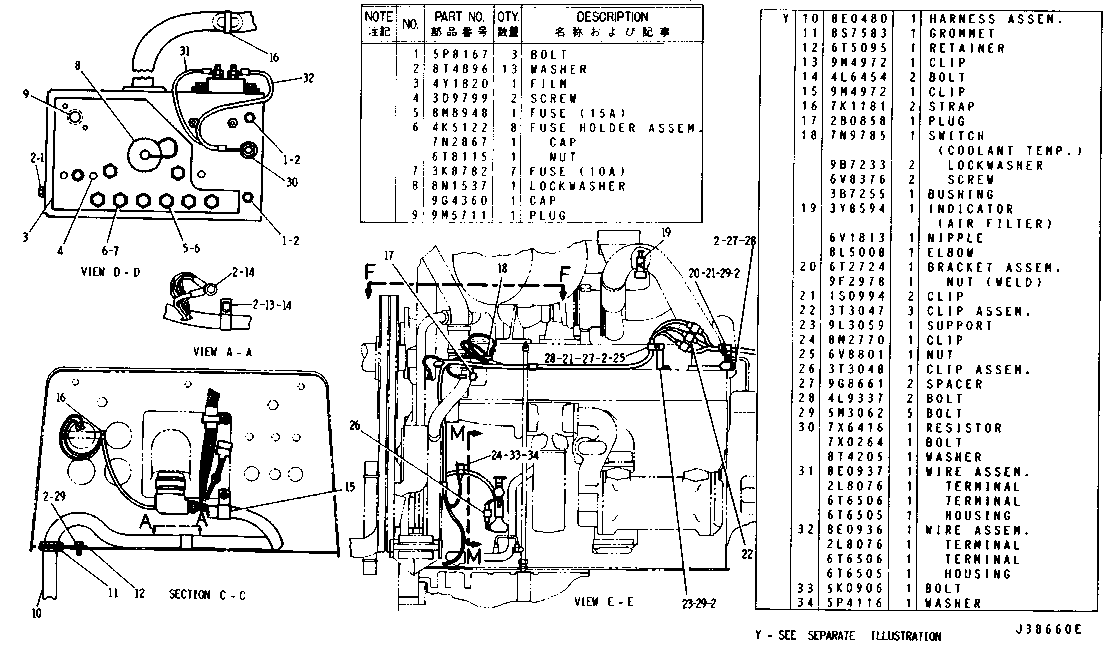

BATTERY AND WIRING (9W4719 N/S)--Part 4 of 68E480--Page 101
Group No: BATTERY
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5P8167 | 1 BOLT | 3 | |
| 8T4896 | 2 WASHER | 13 | |
| 4Y1820 | 3 FILM | 1 | |
| 3D9799 | 4 SCREW | 2 | |
| 8M8948 | 5 FUSE (15A) | 1 | |
| 4K5122 | 6 FUSE HOLDER ASSEM. | 8 | |
| 7N2867 | CAP | 1 | |
| 6T8115 | NUT | 1 | |
| 3K8782 | 7 FUSE (10A) | 7 | |
| 8N1537 | 8 LOCKWASHER | 1 | |
| 9G4360 | CAP | 1 | |
| 9M5711 | 9 PLUG | 1 | |
| 8E0480 | 10 HARNESS ASSEM. | 1 | |
| 8S7583 | 11 GROMMET | 1 | |
| 6T5095 | 12 RETAINER | 1 | |
| 9M4972 | 13 CLIP | 1 | |
| 4L6454 | 14 BOLT | 2 | |
| 9M4972 | 15 CLIP | 1 | |
| 7K1181 | 16 STRAP | 2 | |
| 2B0858 | 17 PLUG | 1 | |
| 7N9785 | 18 SWITCH (COOLANT TEMP.) | 1 | |
| 9B7233 | LOCKWASHER | 2 | |
| 6V8376 | SCREW | 2 | |
| 3B7255 | BUSHING | 1 | |
| 3Y8594 | 19 INDICATOR (AIR FILTER) | 1 | |
| 6V1813 | NIPPLE | 1 | |
| 8L5008 | ELBOW | 1 | |
| 6T2724 | 20 BRACKET ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 1 | |
| 1S0994 | 21 CLIP | 2 | |
| 3T3047 | 22 CLIP ASSEM. | 3 | |
| 9L3059 | 23 SUPPORT | 1 | |
| 8M2770 | 24 CLIP | 1 | |
| 6V8801 | 25 NUT | 1 | |
| 3T3048 | 26 CLIP ASSEM. | 1 | |
| 9G8661 | 27 SPACER | 2 | |
| 4L9337 | 28 BOLT | 2 | |
| 5M3062 | 29 BOLT | 5 | |
| 7X6416 | 30 RESISTOR | 1 | |
| 7X0264 | BOLT | 1 | |
| 8T4205 | WASHER | 1 | |
| 8E0937 | 31 WIRE ASSEM. | 1 | |
| 2L8076 | TERMINAL | 1 | |
| 6T6506 | TERMINAL | 1 | |
| 6T6505 | HOUSING | 1 | |
| 8E0936 | 32 WIRE ASSEM. | 1 | |
| 2L8076 | TERMINAL | 1 | |
| 6T6506 | TERMINAL | 1 | |
| 6T6505 | HOUSING | 1 | |
| 5K0906 | 33 BOLT | 1 | |
| 5P4116 | 34 WASHER | 1 |
