System And Components

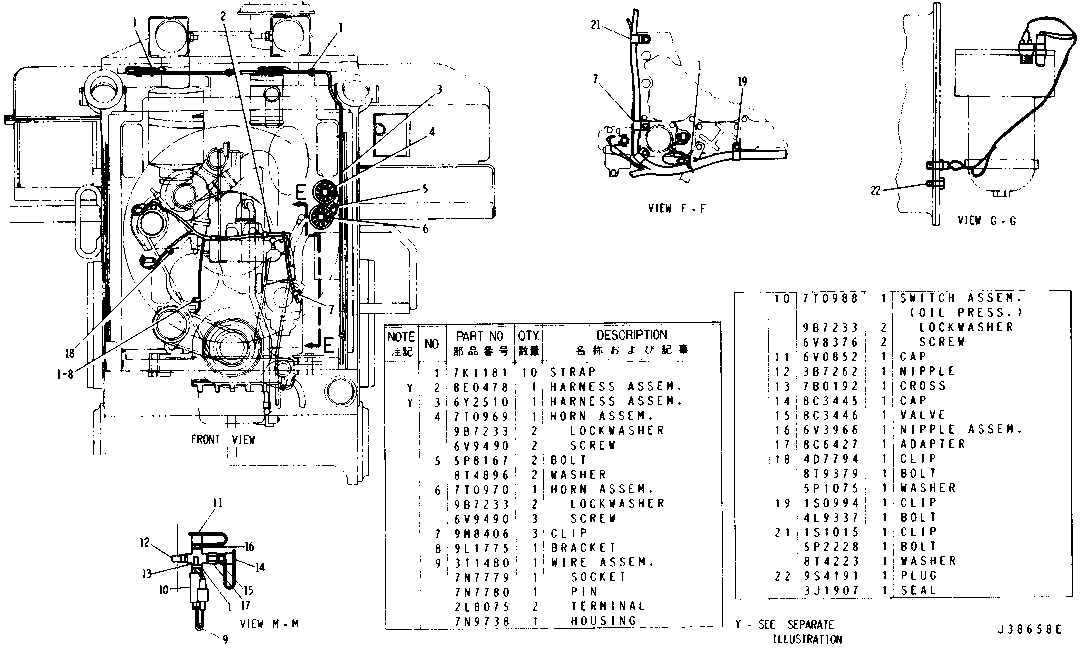

BATTERY AND WIRING (9W4719 N/S)--Part 5 of 66Y2510--Page 99 and 8E478--Page 100
Group No: BATTERY
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7K1181 | 1 STRAP | 10 | |
| 8E0478 | 2 HARNESS ASSEM. | 1 | |
| 6Y2510 | 3 HARNESS ASSEM. | 1 | |
| 7T0969 | 4 HORN ASSEM. | 1 | |
| 9B7233 | LOCKWASHER | 2 | |
| 6V9490 | SCREW | 2 | |
| 5P8167 | 5 BOLT | 2 | |
| 8T4896 | WASHER | 2 | |
| 7T0970 | 6 HORN ASSEM. | 1 | |
| 9B7233 | LOCKWASHER | 2 | |
| 6V9490 | SCREW | 3 | |
| 9M8406 | 7 CLIP | 3 | |
| 9L1775 | 8 BRACKET | 1 | |
| 3T1480 | 9 WIRE ASSEM. | 1 | |
| 7N7779 | SOCKET | 1 | |
| 7N7780 | PIN | 1 | |
| 2L8075 | TERMINAL | 2 | |
| 7N9738 | HOUSING | 1 | |
| 7T0988 | 10 SWITCH ASSEM. (OIL PRESS.) | 1 | |
| 9B7233 | LOCKWASHER | 2 | |
| 6V8376 | SCREW | 2 | |
| 6V0852 | 11 CAP | 1 | |
| 3B7262 | 12 NIPPLE | 1 | |
| 7B0192 | 13 CROSS | 1 | |
| 8C3445 | 14 CAP | 1 | |
| 8C3446 | 15 VALVE | 1 | |
| 6V3966 | 16 NIPPLE ASSEM. | 1 | |
| 8C6427 | 17 ADAPTER | 1 | |
| 4D7794 | 18 CLIP | 1 | |
| 8T9379 | BOLT | 1 | |
| 5P1075 | WASHER | 1 | |
| 1S0994 | 19 CLIP | 1 | |
| 4L9337 | BOLT | 1 | |
| 1S1015 | 21 CLIP | 1 | |
| 5P2228 | BOLT | 1 | |
| 8T4223 | WASHER | 1 | |
| 9S4191 | 22 PLUG | 1 | |
| 3J1907 | SEAL | 1 |
