System And Components

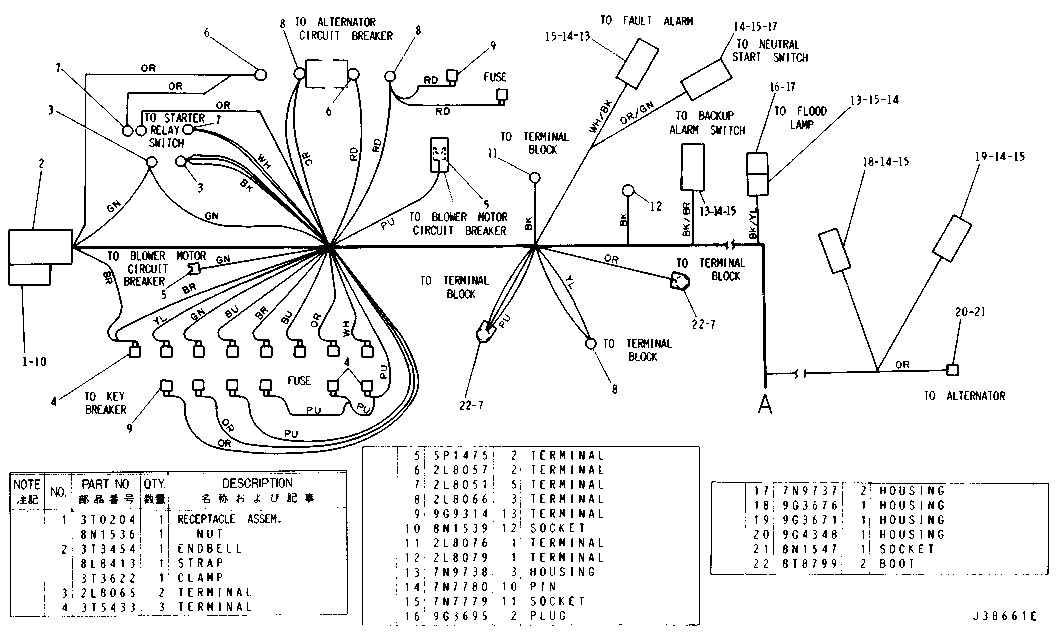

8E480 HARNESS ASSEMBLY--Part 1 of 3Part of Battery & Wiring (9W4719 N/S)
Group No: 8E480
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3T0204 | 1 RECEPTACLE ASSEM. | 1 | |
| 8N1536 | NUT | 1 | |
| 3T3454 | 2 ENDBELL | 1 | |
| 8L8413 | STRAP | 1 | |
| 3T3622 | CLAMP | 1 | |
| 2L8065 | 3 TERMINAL | 2 | |
| 3T5433 | 4 TERMINAL | 3 | |
| 5P1475 | 5 TERMINAL | 2 | |
| 2L8057 | 6 TERMINAL | 2 | |
| 2L8051 | 7 TERMINAL | 5 | |
| 2L8066 | 8 TERMINAL | 3 | |
| 9G9314 | 9 TERMINAL | 13 | |
| 8N1539 | 10 SOCKET | 12 | |
| 2L8076 | 11 TERMINAL | 1 | |
| 2L8079 | 12 TERMINAL | 1 | |
| 7N9738 | 13 HOUSING | 3 | |
| 7N7780 | 14 PIN | 10 | |
| 7N7779 | 15 SOCKET | 11 | |
| 9G3695 | 16 PLUG | 2 | |
| 7N9737 | 17 HOUSING | 2 | |
| 9G3676 | 18 HOUSING | 1 | |
| 9G3671 | 19 HOUSING | 1 | |
| 9G4348 | 20 HOUSING | 1 | |
| 8N1547 | 21 SOCKET | 1 | |
| 8T8799 | 22 BOOT | 2 |
