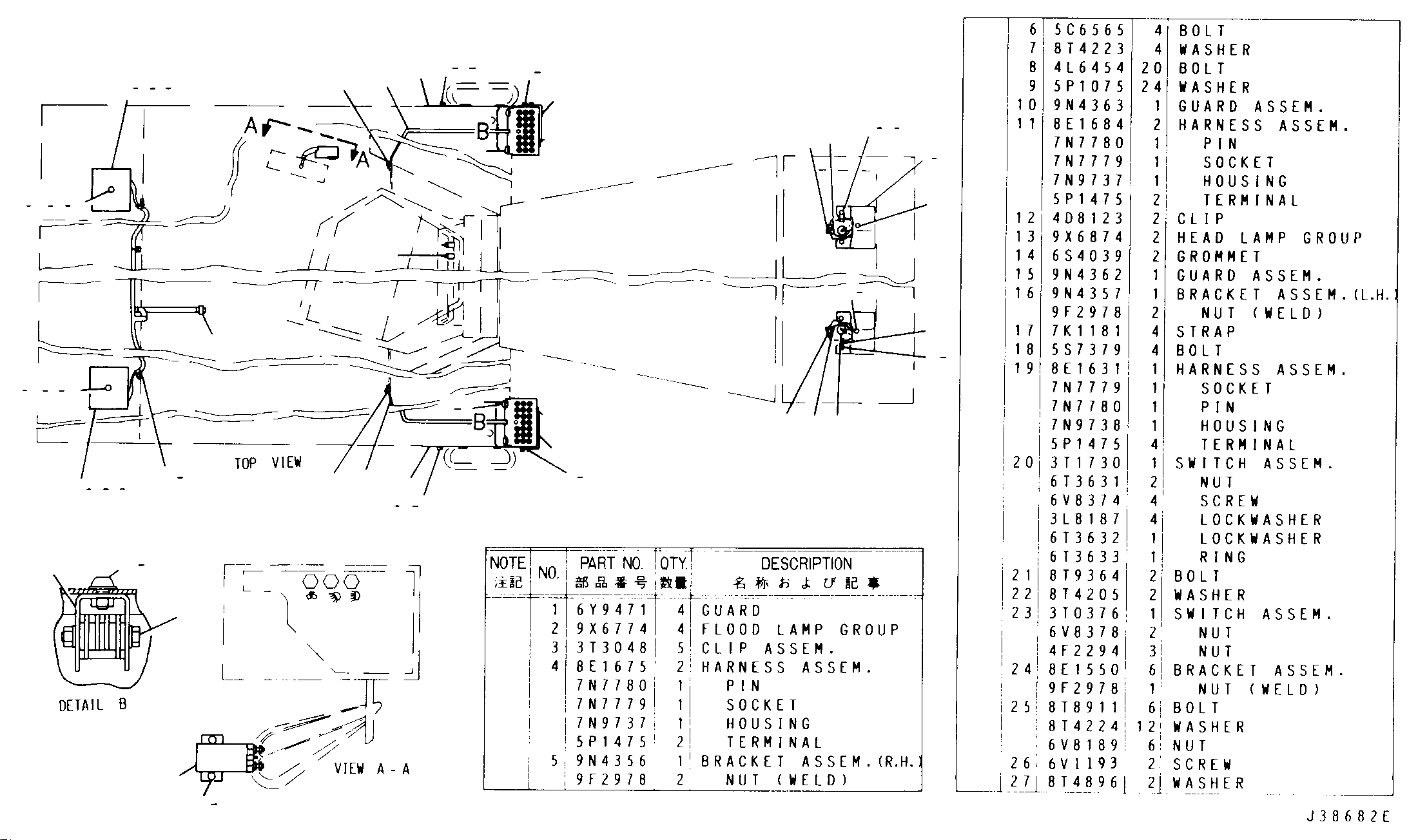

LIGHTING (9N4289 N/S)--6 LampAN ATTACHMENT

Group No: LIGHTING
Part NumberPart NameQty
6Y94711 GUARD4
9X67742 FLOOD LAMP GROUP4
3T30483 CLIP ASSEM.5
8E16754 HARNESS ASSEM.2
7N7780PIN1
7N7779SOCKET1
7N9737HOUSING1
5P1475TERMINAL2
9N43565 BRACKET ASSEM. (R.H.)1
9F2978NUT (WELD)2
5C65656 BOLT4
8T42237 WASHER4
4L64548 BOLT20
5P10759 WASHER24
9N436310 GUARD ASSEM.1
8E168411 HARNESS ASSEM.2
7N7780PIN1
7N7779SOCKET1
7N9737HOUSING1
5P1475TERMINAL2
4D812312 CLIP2
9X687413 HEAD LAMP GROUP2
6S403914 GROMMET2
9N436215 GUARD ASSEM.1
9N435716 BRACKET ASSEM. (L.H.)1
9F2978NUT (WELD)2
7K118117 STRAP4
5S737918 BOLT4
8E163119 HARNESS ASSEM.1
7N7779SOCKET1
7N7780PIN1
7N9738HOUSING1
5P1475TERMINAL4
3T173020 SWITCH ASSEM.1
6T3631NUT2
6V8374SCREW4
3L8187LOCKWASHER4
6T3632LOCKWASHER1
6T3633RING1
8T936421 BOLT2
8T420522 WASHER2
3T037623 SWITCH ASSEM.1
6V8378NUT2
4F2294NUT3
8E155024 BRACKET ASSEM.6
9F2978NUT (WELD)1
8T891125 BOLT6
8T4224WASHER12
6V8189NUT6
6V119326 SCREW2
8T489627 WASHER2
