System And Components

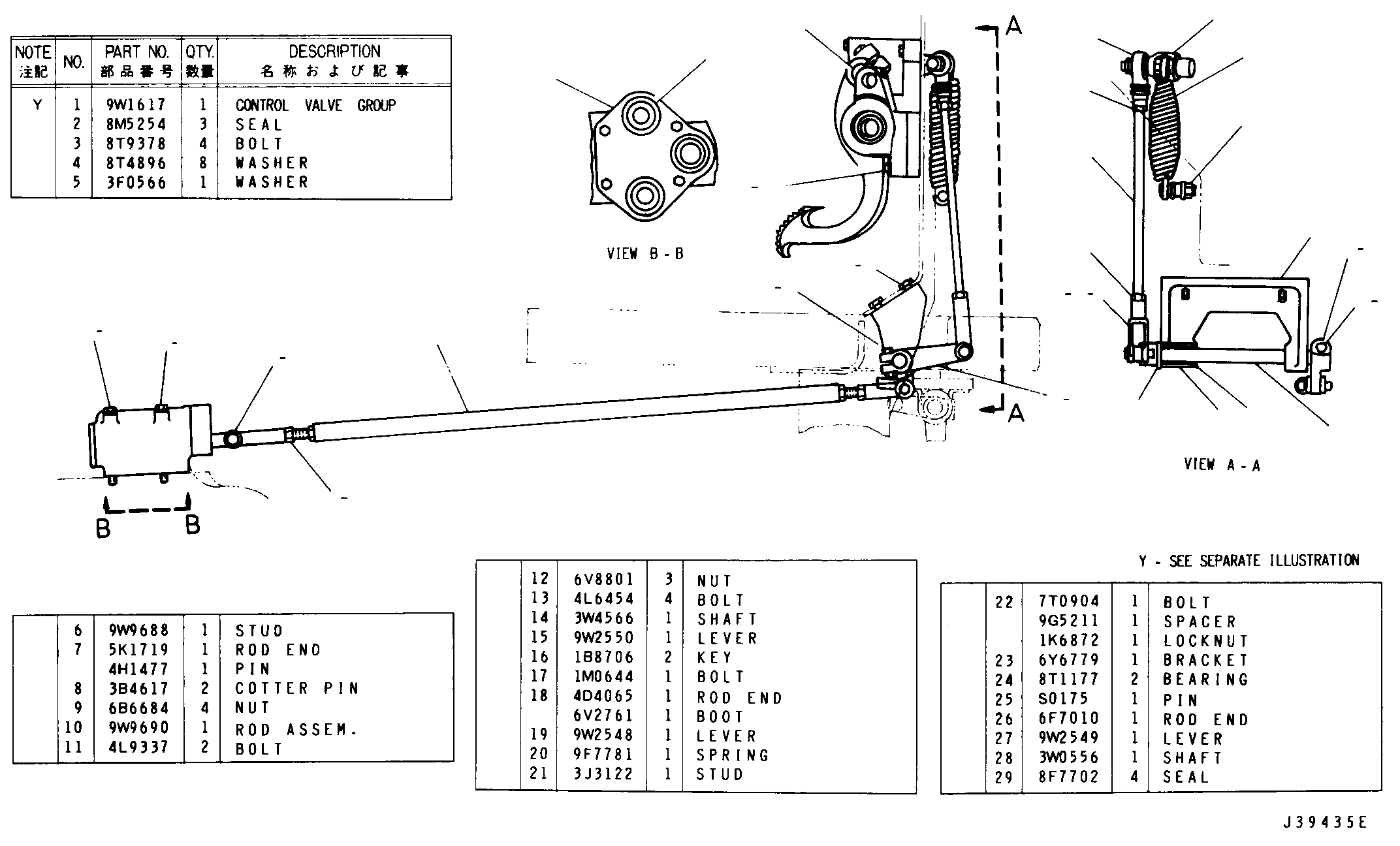

BRAKE CONTROL (7T8472 N/S)--Part 1 of 29W1617--Page 149
Group No: BRAKE
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9W1617 | 1 CONTROL VALVE GROUP | 1 | |
| 8M5254 | 2 SEAL | 3 | |
| 8T9378 | 3 BOLT | 4 | |
| 8T4896 | 4 WASHER | 8 | |
| 3F0566 | 5 WASHER | 1 | |
| 9W9688 | 6 STUD | 1 | |
| 5K1719 | 7 ROD END | 1 | |
| 4H1477 | PIN | 1 | |
| 3B4617 | 8 COTTER PIN | 2 | |
| 6B6684 | 9 NUT | 4 | |
| 9W9690 | 10 ROD ASSEM. | 1 | |
| 4L9337 | 11 BOLT | 2 | |
| 6V8801 | 12 NUT | 3 | |
| 4L6454 | 13 BOLT | 4 | |
| 3W4566 | 14 SHAFT | 1 | |
| 9W2550 | 15 LEVER | 1 | |
| 1B8706 | 16 KEY | 2 | |
| 1M0644 | 17 BOLT | 1 | |
| 4D4065 | 18 ROD END | 1 | |
| 6V2761 | BOOT | 1 | |
| 9W2548 | 19 LEVER | 1 | |
| 9F7781 | 20 SPRING | 1 | |
| 3J3122 | 21 STUD | 1 | |
| 7T0904 | 22 BOLT | 1 | |
| 9G5211 | SPACER | 1 | |
| 1K6872 | LOCKNUT | 1 | |
| 6Y6779 | 23 BRACKET | 1 | |
| 8T1177 | 24 BEARING | 2 | |
| 0S0175 | 25 PIN | 1 | |
| 6F7010 | 26 ROD END | 1 | |
| 9W2549 | 27 LEVER | 1 | |
| 3W0556 | 28 SHAFT | 1 | |
| 8F7702 | 29 SEAL | 4 |
