System And Components

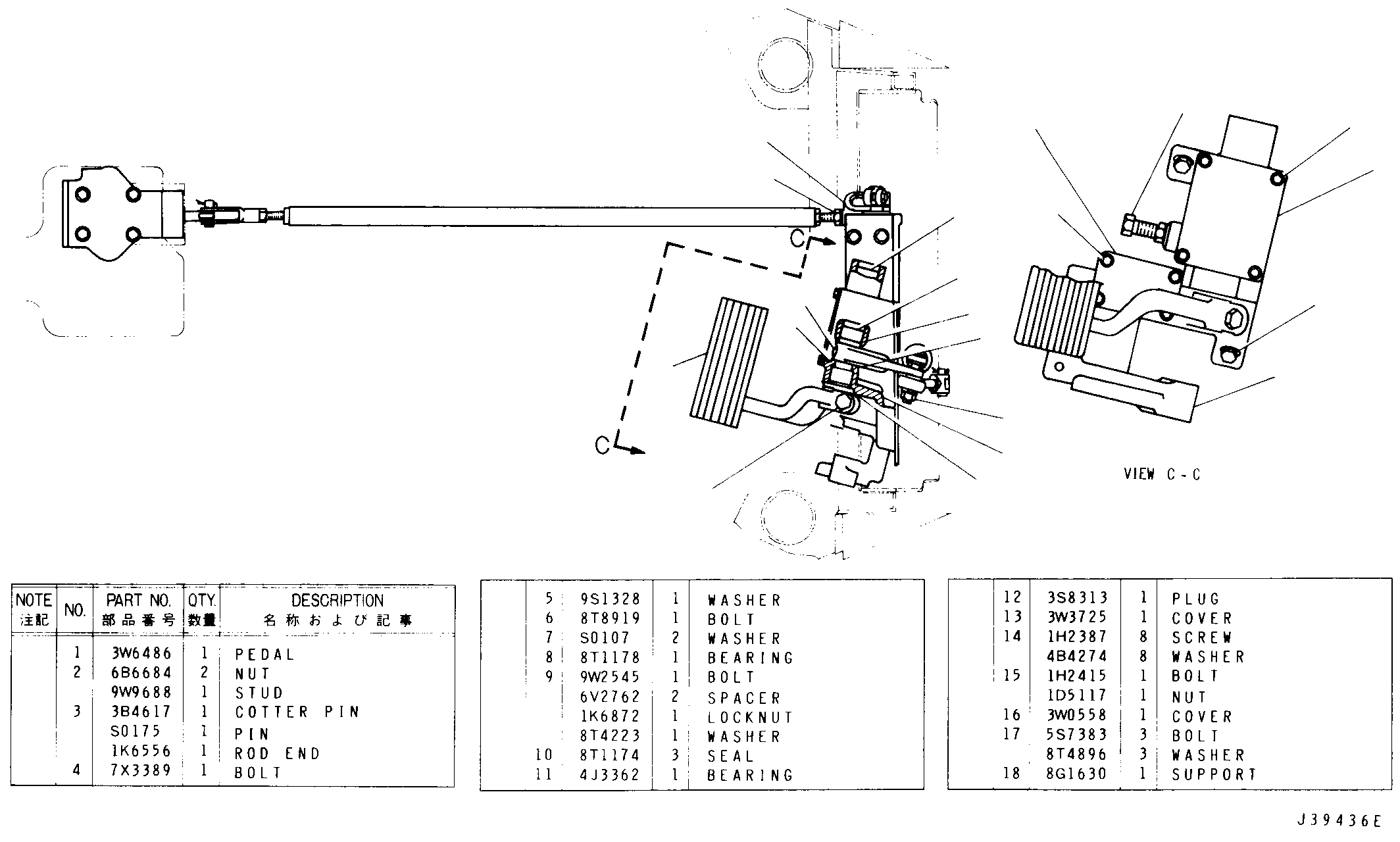

BRAKE CONTROL (7T8472 N/S)--Part 2 of 2
Group No: BRAKE
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3W6486 | 1 PEDAL | 1 | |
| 6B6684 | 2 NUT | 2 | |
| 9W9688 | STUD | 1 | |
| 3B4617 | 3 COTTER PIN | 1 | |
| 0S0175 | PIN | 1 | |
| 1K6556 | ROD END | 1 | |
| 7X3389 | 4 BOLT | 1 | |
| 9S1328 | 5 WASHER | 1 | |
| 8T8919 | 6 BOLT | 1 | |
| 0S0107 | 7 WASHER | 2 | |
| 8T1178 | 8 BEARING | 1 | |
| 9W2545 | 9 BOLT | 1 | |
| 6V2762 | SPACER | 2 | |
| 1K6872 | LOCKNUT | 1 | |
| 8T4223 | WASHER | 1 | |
| 8T1174 | 10 SEAL | 3 | |
| 4J3362 | 11 BEARING | 1 | |
| 3S8313 | 12 PLUG | 1 | |
| 3W3725 | 13 COVER | 1 | |
| 1H2387 | 14 SCREW | 8 | |
| 4B4274 | WASHER | 8 | |
| 1H2415 | 15 BOLT | 1 | |
| 1D5117 | NUT | 1 | |
| 3W0558 | 16 COVER | 1 | |
| 5S7383 | 17 BOLT | 3 | |
| 8T4896 | WASHER | 3 | |
| 8G1630 | 18 SUPPORT | 1 |
