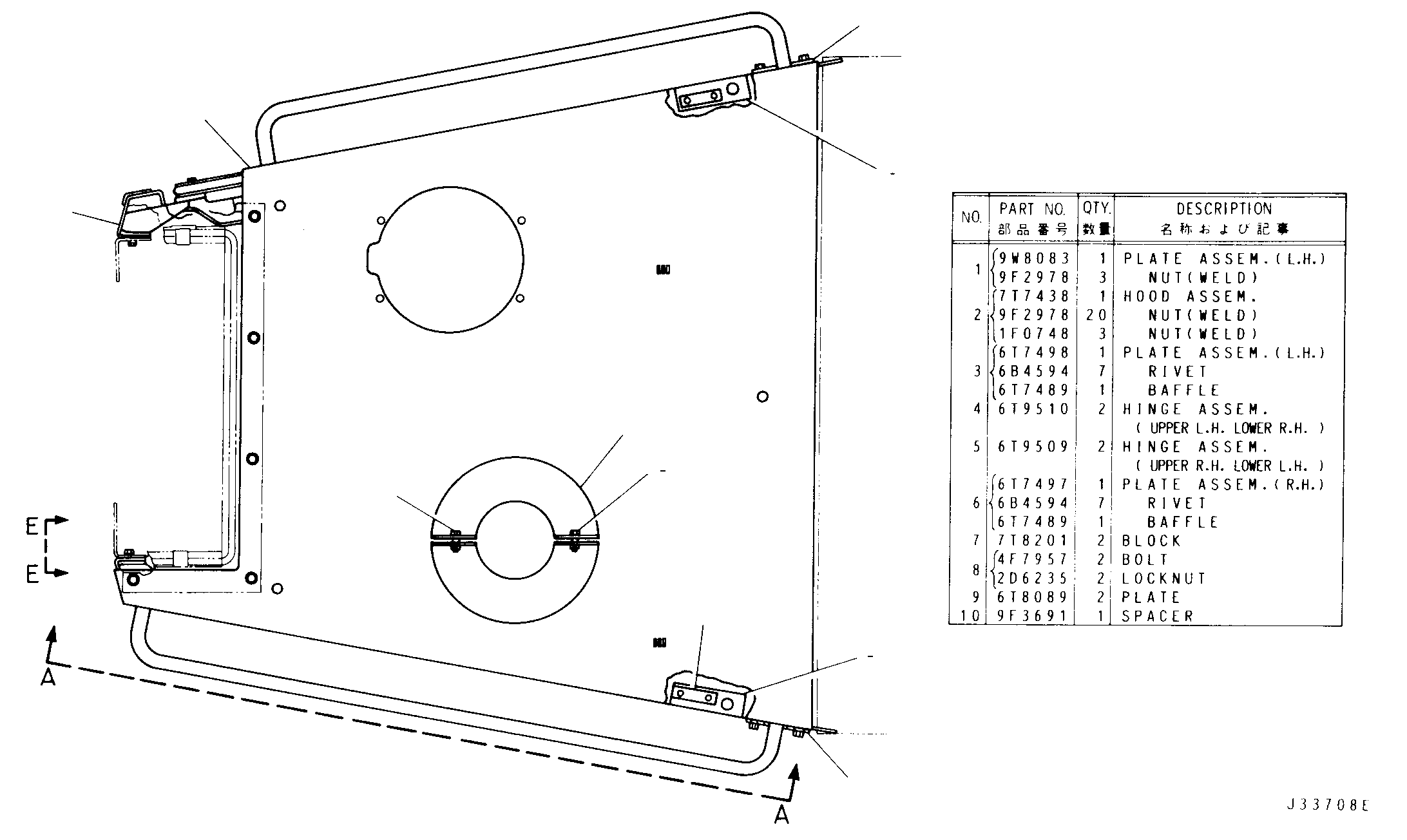

ENGINE ENCLOSURE (9W9515 N/S)--Enclosed R.O.P.S.--Part 1 of 2AN ATTACHMENT

Group No: ENGINE
Part NumberPart NameQty
9W80831 PLATE ASSEM. (L.H.)1
9F2978NUT (WELD)3
7T74382 HOOD ASSEM.1
9F2978NUT (WELD)20
1F0748NUT (WELD)3
6T74983 PLATE ASSEM. (L.H.)1
6B4594RIVET7
6T7489BAFFLE1
6T95104 HINGE ASSEM. (UPPER L.H. LOWER R.H.)2
6T95095 HINGE ASSEM. (UPPER R.H. LOWER L.H.)2
6T74976 PLATE ASSEM. (R.H.)1
6B4594RIVET7
6T7489BAFFLE1
7T82017 BLOCK2
4F79578 BOLT2
2D6235LOCKNUT2
6T80899 PLATE2
9F369110 SPACER1
