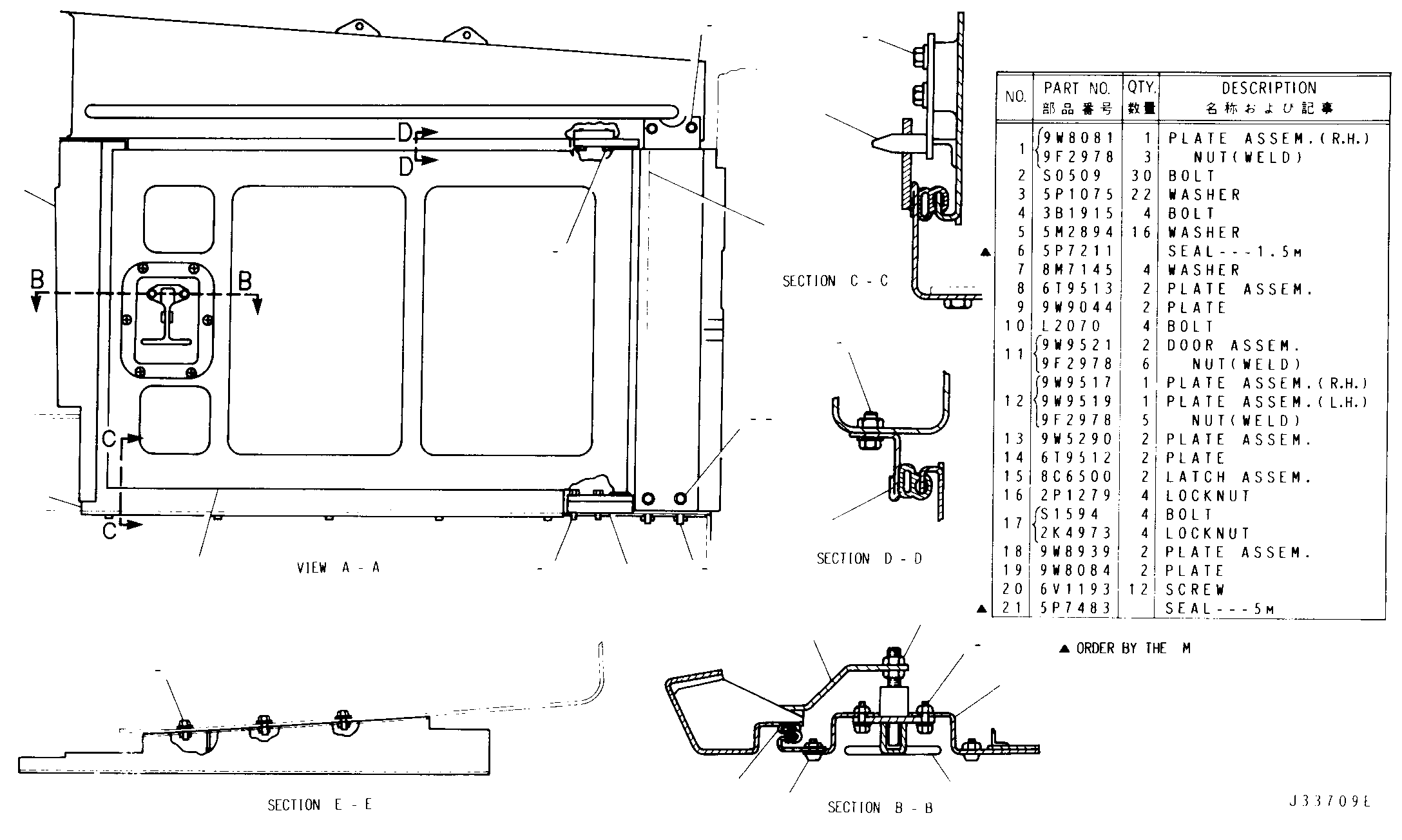

ENGINE ENCLOSURE (9W9515 N/S)--Enclosed R.O.P.S.--Part 2 of 2AN ATTACHMENT

Group No: ENGINE
Part NumberPart NameQty
9W80811 PLATE ASSEM. (R.H.)1
9F2978NUT (WELD)3
0S05092 BOLT30
5P10753 WASHER22
3B19154 BOLT4
5M28945 WASHER16
5P72116 SEAL 1.5mNULL
8M71457 WASHER4
6T95138 PLATE ASSEM.2
9W90449 PLATE2
0L207010 BOLT4
9W952111 DOOR ASSEM.2
9F2978NUT (WELD)6
9W951712 PLATE ASSEM. (R.H.)1
9W9519PLATE ASSEM. (L.H.)1
9F2978NUT (WELD)5
9W529013 PLATE ASSEM.2
6T951214 PLATE2
8C650015 LATCH ASSEM.2
2P127916 LOCKNUT4
0S159417 BOLT4
2K4973LOCKNUT4
9W893918 PLATE ASSEM.2
9W808419 PLATE2
6V119320 SCREW12
5P748321 SEAL 5mNULL
