System And Components

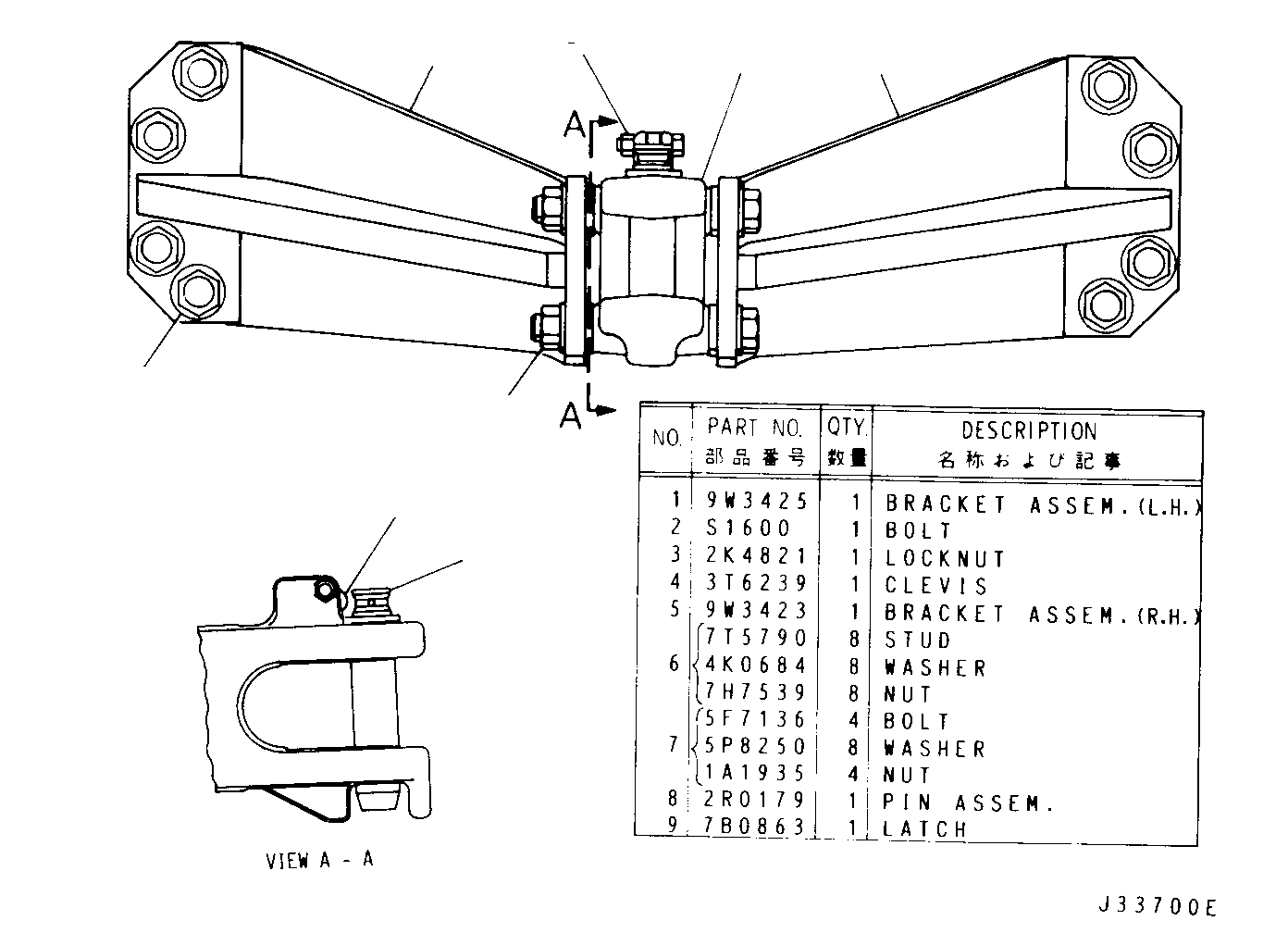

DRAWBAR (9W3422 N/S)For use with Wincher Undercarriage
Group No: DRAWBAR
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9W3425 | 1 BRACKET ASSEM. (L.H.) | 1 | |
| 0S1600 | 2 BOLT | 1 | |
| 2K4821 | 3 LOCKNUT | 1 | |
| 3T6239 | 4 CLEVIS | 1 | |
| 9W3423 | 5 BRACKET ASSEM. (R.H.) | 1 | |
| 7T5790 | 6 STUD | 8 | |
| 4K0684 | WASHER | 8 | |
| 7H7539 | NUT | 8 | |
| 5F7136 | 7 BOLT | 4 | |
| 5P8250 | WASHER | 8 | |
| 1A1935 | NUT | 4 | |
| 2R0179 | 8 PIN ASSEM. | 1 | |
| 7B0863 | 9 LATCH | 1 |
