System And Components

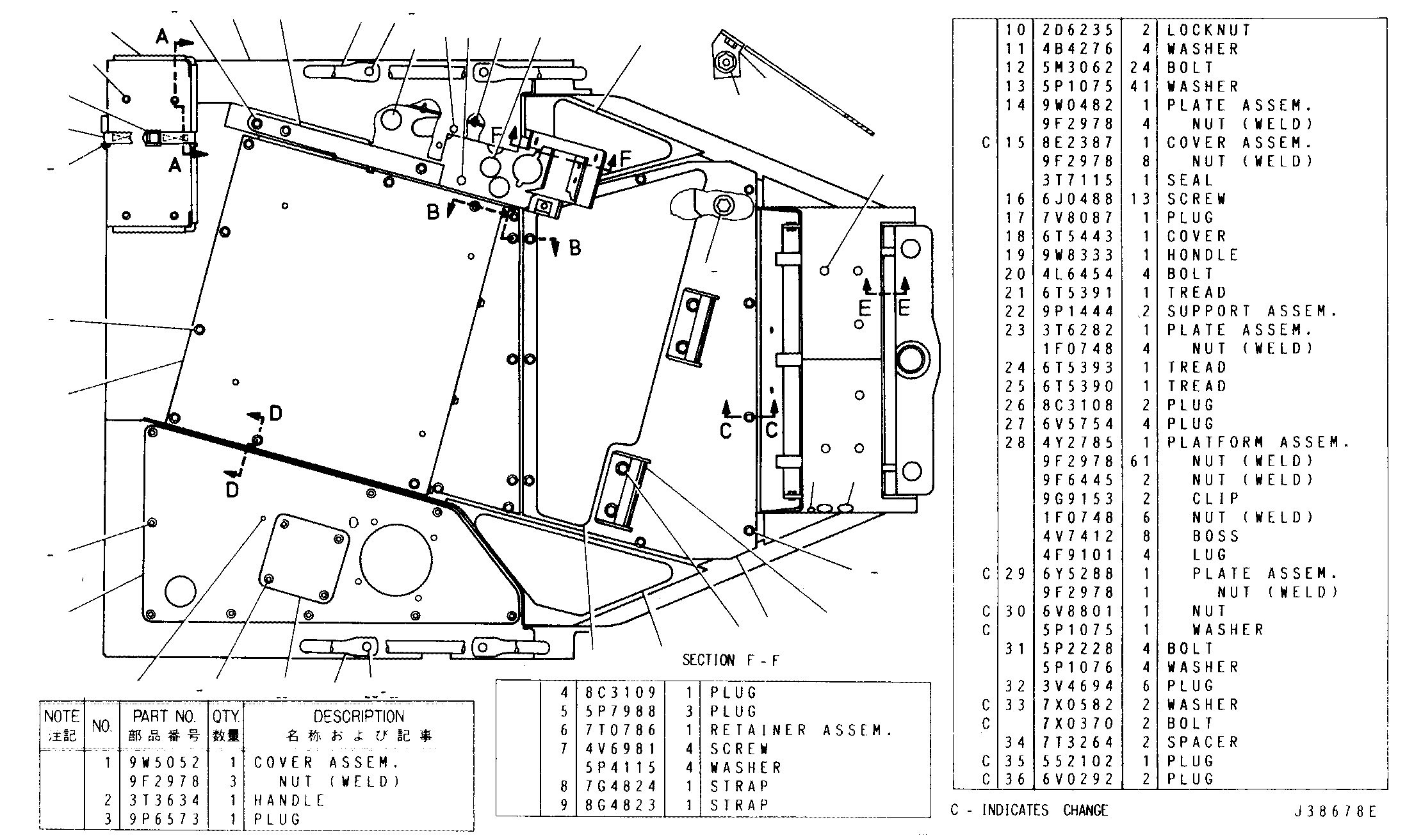

PLATFORM (9W5277 N/S)--Open R.O.P.S.--Part 1 of 2
Group No: PLATFORM
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9W5052 | 1 COVER ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 3 | |
| 3T3634 | 2 HANDLE | 1 | |
| 9P6573 | 3 PLUG | 1 | |
| 8C3109 | 4 PLUG | 1 | |
| 5P7988 | 5 PLUG | 3 | |
| 7T0786 | 6 RETAINER ASSEM. | 1 | |
| 4V6981 | 7 SCREW | 4 | |
| 5P4115 | WASHER | 4 | |
| 7G4824 | 8 STRAP | 1 | |
| 8G4823 | 9 STRAP | 1 | |
| 2D6235 | 10 LOCKNUT | 2 | |
| 4B4276 | 11 WASHER | 4 | |
| 5M3062 | 12 BOLT | 24 | |
| 5P1075 | 13 WASHER | 41 | |
| 9W0482 | 14 PLATE ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 4 | |
| 8E2387 | 15 COVER ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 8 | |
| 3T7115 | SEAL | 1 | |
| 6J0488 | 16 SCREW | 13 | |
| 7V8087 | 17 PLUG | 1 | |
| 6T5443 | 18 COVER | 1 | |
| 9W8333 | 19 HONDLE | 1 | |
| 4L6454 | 20 BOLT | 4 | |
| 6T5391 | 21 TREAD | 1 | |
| 9P1444 | 22 SUPPORT ASSEM. | 2 | |
| 3T6282 | 23 PLATE ASSEM. | 1 | |
| 1F0748 | NUT (WELD) | 4 | |
| 6T5393 | 24 TREAD | 1 | |
| 6T5390 | 25 TREAD | 1 | |
| 8C3108 | 26 PLUG | 2 | |
| 6V5754 | 27 PLUG | 4 | |
| 4Y2785 | 28 PLATFORM ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 61 | |
| 9F6445 | NUT (WELD) | 2 | |
| 9G9153 | CLIP | 2 | |
| 1F0748 | NUT (WELD) | 6 | |
| 4V7412 | BOSS | 8 | |
| 4F9101 | LUG | 4 | |
| 6Y5288 | 29 PLATE ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 1 | |
| 6V8801 | 30 NUT | 1 | |
| 5P1075 | WASHER | 1 | |
| 5P2228 | 31 BOLT | 4 | |
| 5P1076 | WASHER | 4 | |
| 3V4694 | 32 PLUG | 6 | |
| 7X0582 | 33 WASHER | 2 | |
| 7X0370 | BOLT | 2 | |
| 7T3264 | 34 SPACER | 2 | |
| 0552102 | 35 PLUG | 1 | |
| 6V0292 | 36 PLUG | 2 |
