System And Components

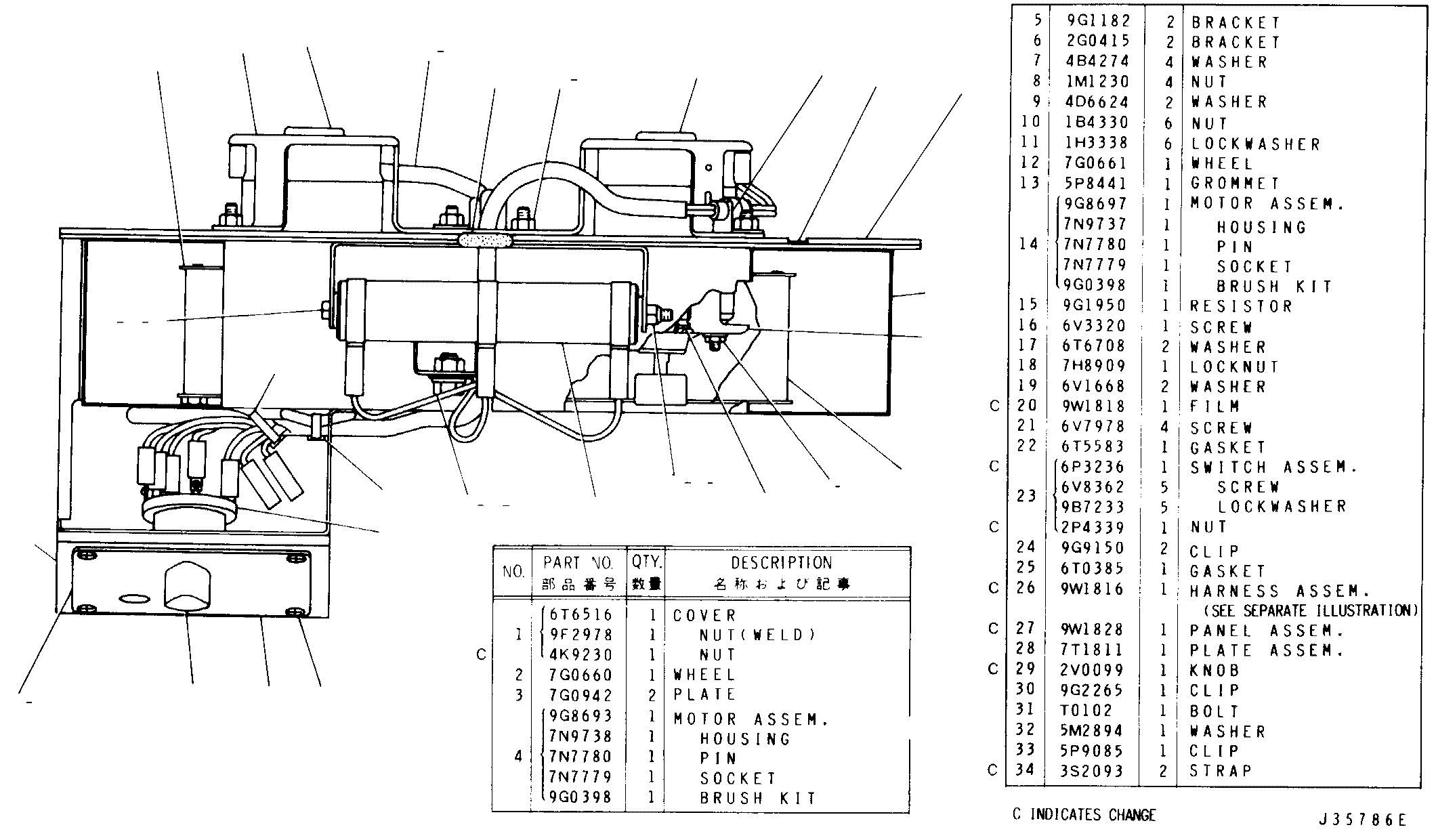

6T3387 BLOWER GROUPPart of Cab Pressurizer (6T3690 N/S)
Group No: 6T3387
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6T6516 | 1 COVER | 1 | |
| 9F2978 | NUT (WELD) | 1 | |
| 4K9230 | NUT | 1 | |
| 7G0660 | 2 WHEEL | 1 | |
| 7G0942 | 3 PLATE | 2 | |
| 9G8693 | 4 MOTOR ASSEM. | 1 | |
| 7N9738 | HOUSING | 1 | |
| 7N7780 | PIN | 1 | |
| 7N7779 | SOCKET | 1 | |
| 9G0398 | BRUSH KIT | 1 | |
| 9G1182 | 5 BRACKET | 2 | |
| 2G0415 | 6 BRACKET | 2 | |
| 4B4274 | 7 WASHER | 4 | |
| 1M1230 | 8 NUT | 4 | |
| 4D6624 | 9 WASHER | 2 | |
| 1B4330 | 10 NUT | 6 | |
| 1H3338 | 11 LOCKWASHER | 6 | |
| 7G0661 | 12 WHEEL | 1 | |
| 5P8441 | 13 GROMMET | 1 | |
| 9G8697 | 14 MOTOR ASSEM. | 1 | |
| 7N9737 | HOUSING | 1 | |
| 7N7780 | PIN | 1 | |
| 7N7779 | SOCKET | 1 | |
| 9G0398 | BRUSH KIT | 1 | |
| 9G1950 | 15 RESISTOR | 1 | |
| 6V3320 | 16 SCREW | 1 | |
| 6T6708 | 17 WASHER | 2 | |
| 7H8909 | 18 LOCKNUT | 1 | |
| 6V1668 | 19 WASHER | 2 | |
| 9W1818 | 20 FILM | 1 | |
| 6V7978 | 21 SCREW | 4 | |
| 6T5583 | 22 GASKET | 1 | |
| 6P3236 | 23 SWITCH ASSEM. | 1 | |
| 6V8362 | SCREW | 5 | |
| 9B7233 | LOCKWASHER | 5 | |
| 2P4339 | NUT | 1 | |
| 9G9150 | 24 CLIP | 2 | |
| 6T0385 | 25 GASKET | 1 | |
| 9W1816 | 26 HARNESS ASSEM. | 1 | |
| 9W1828 | 27 PANEL ASSEM. | 1 | |
| 7T1811 | 28 PLATE ASSEM. | 1 | |
| 2V0099 | 29 KNOB | 1 | |
| 9G2265 | 30 CLIP | 1 | |
| 0T0102 | 31 BOLT | 1 | |
| 5M2894 | 32 WASHER | 1 | |
| 5P9085 | 33 CLIP | 1 | |
| 3S2093 | 34 STRAP | 2 |
