System And Components

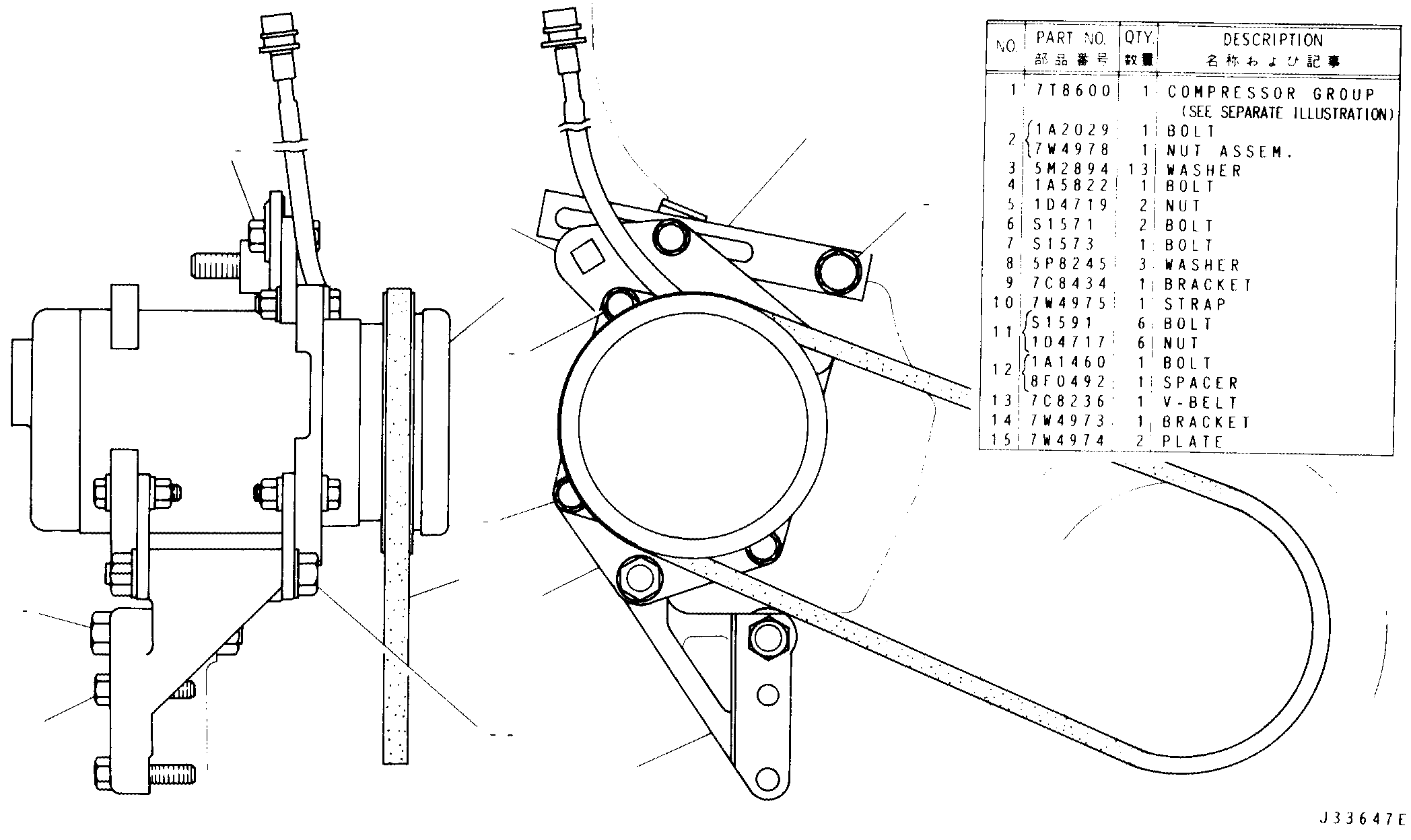

REFRIGERANT COMPRESSOR (7C8433 N/S)Part of 9N4390 Air Condioner Arrangement
Group No: REFRIGERANT
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7T8600 | 1 COMPRESSOR GROUP | 1 | |
| 1A2029 | 2 BOLT | 1 | |
| 7W4978 | NUT ASSEM. | 1 | |
| 5M2894 | 3 WASHER | 13 | |
| 1A5822 | 4 BOLT | 1 | |
| 1D4719 | 5 NUT | 2 | |
| 0S1571 | 6 BOLT | 2 | |
| 0S1573 | 7 BOLT | 1 | |
| 5P8245 | 8 WASHER | 3 | |
| 7C8434 | 9 BRACKET | 1 | |
| 7W4975 | 10 STRAP | 1 | |
| 0S1591 | 11 BOLT | 6 | |
| 1D4717 | NUT | 6 | |
| 1A1460 | 12 BOLT | 1 | |
| 8F0492 | SPACER | 1 | |
| 7C8236 | 13 V-BELT | 1 | |
| 7W4973 | 14 BRACKET | 1 | |
| 7W4974 | 15 PLATE | 2 |
