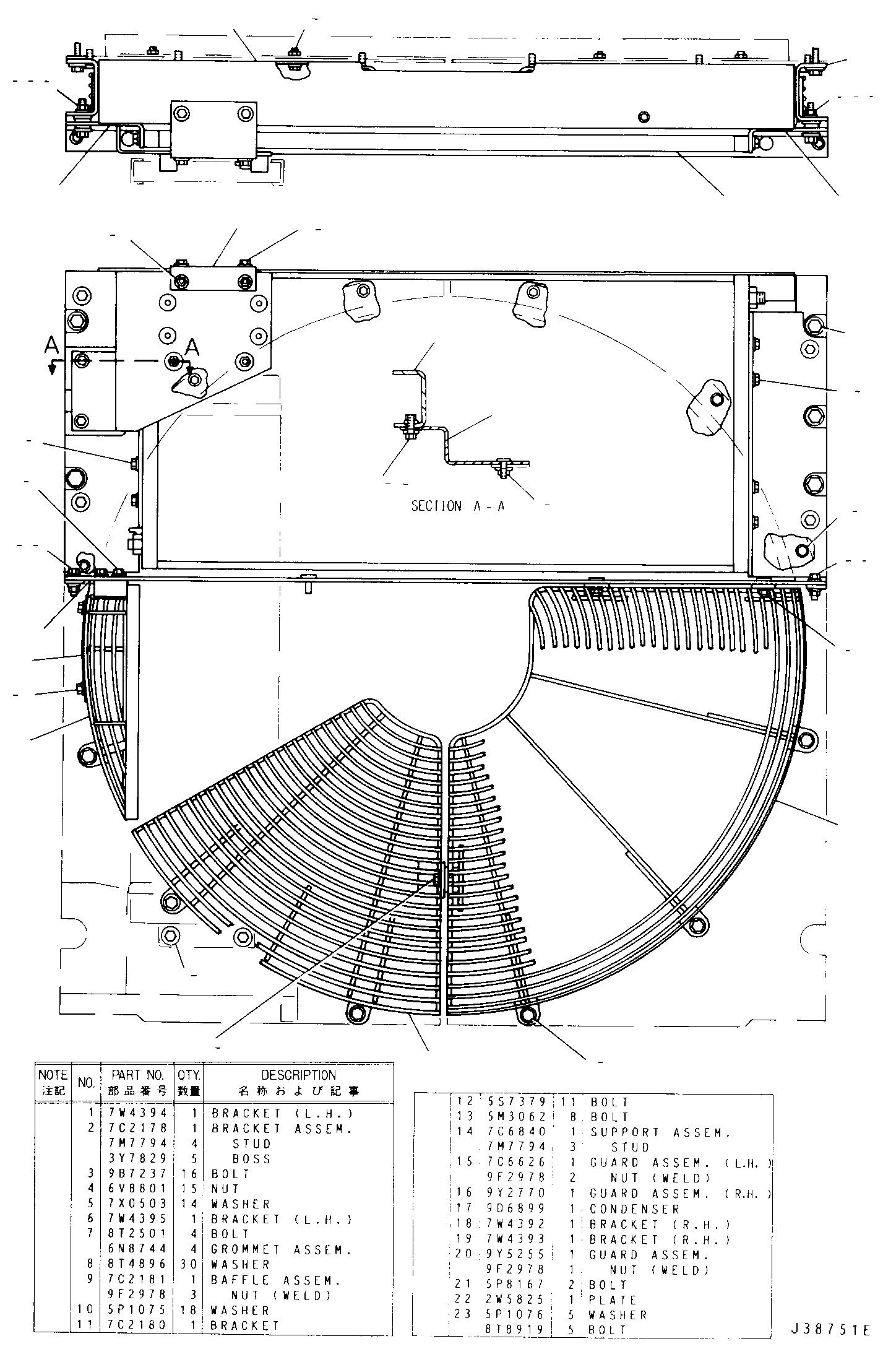

CONDENSER AND MOUNTING (9Y6783 N/S)Part of 9N4390 Air Conditioner Arrangement
Group No: CONDENSER
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7W4394 | 1 BRACKET (L.H.) | 1 | |
| 7C2178 | 2 BRACKET ASSEM. | 1 | |
| 7M7794 | STUD | 4 | |
| 3Y7829 | BOSS | 5 | |
| 9B7237 | 3 BOLT | 16 | |
| 6V8801 | 4 NUT | 15 | |
| 7X0503 | 5 WASHER | 14 | |
| 7W4395 | 6 BRACKET (L.H.) | 1 | |
| 8T2501 | 7 BOLT | 4 | |
| 6N8744 | GROMMET ASSEM. | 4 | |
| 8T4896 | 8 WASHER | 30 | |
| 7C2181 | 9 BAFFLE ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 3 | |
| 5P1075 | 10 WASHER | 18 | |
| 7C2180 | 11 BRACKET | 1 | |
| 5S7379 | 12 BOLT | 11 | |
| 5M3062 | 13 BOLT | 8 | |
| 7C6840 | 14 SUPPORT ASSEM. | 1 | |
| 7M7794 | STUD | 3 | |
| 7C6626 | 15 GUARD ASSEM. (L.H.) | 1 | |
| 9F2978 | NUT (WELD) | 2 | |
| 9Y2770 | 16 GUARD ASSEM. (R.H.) | 1 | |
| 9D6899 | 17 CONDENSER | 1 | |
| 7W4392 | 18 BRACKET (R.H.) | 1 | |
| 7W4393 | 19 BRACKET (R.H.) | 1 | |
| 9Y5255 | 20 GUARD ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 1 | |
| 5P8167 | 21 BOLT | 2 | |
| 2W5825 | 22 PLATE | 1 | |
| 5P1076 | 23 WASHER | 5 | |
| 8T8919 | BOLT | 5 |
