System And Components

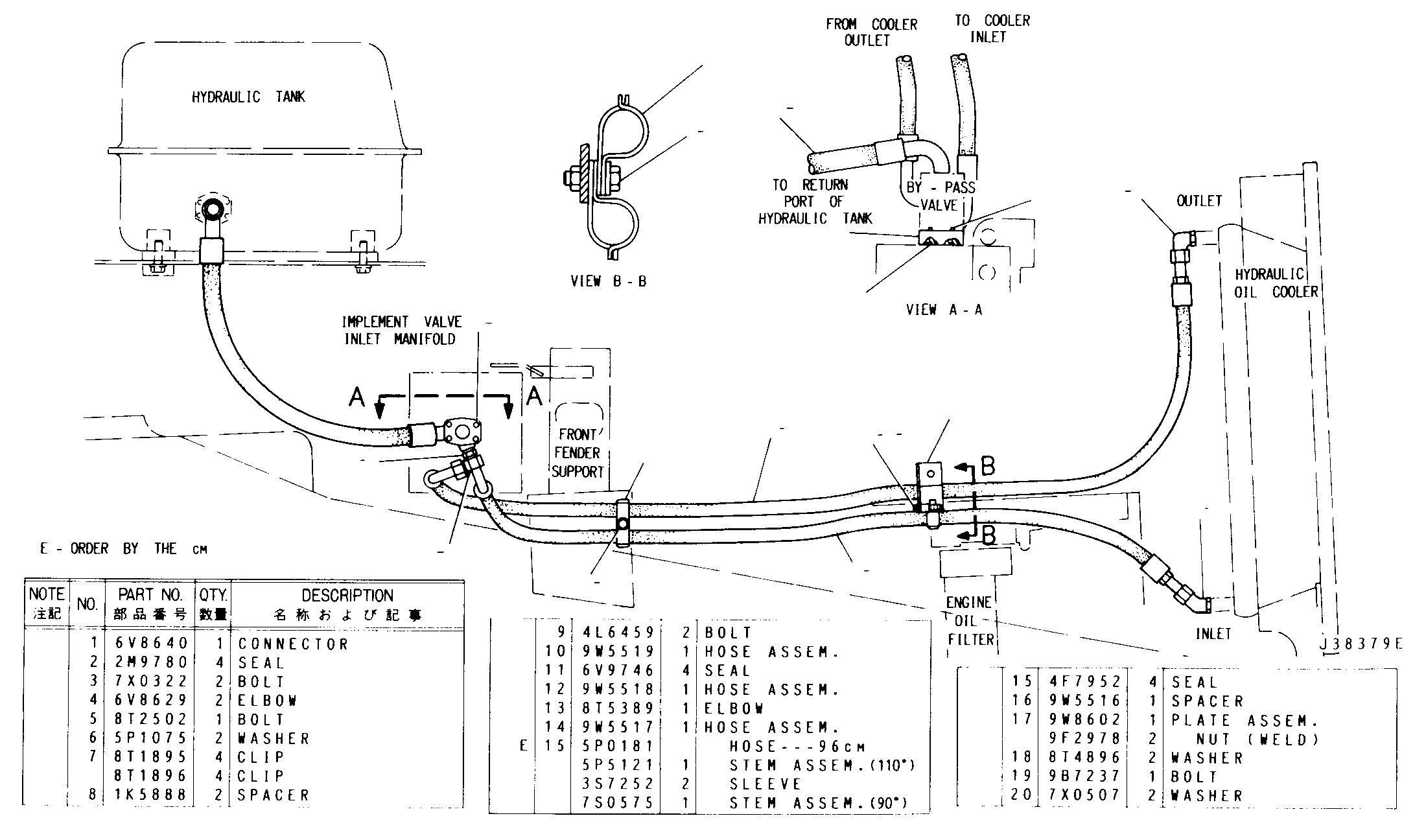

HYDRAULIC OIL COOLER LINES (9W5398)Part of 9W5397--Page 41
Group No: HYDRAULIC
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V8640 | 1 CONNECTOR | 1 | |
| 2M9780 | 2 SEAL | 4 | |
| 7X0322 | 3 BOLT | 2 | |
| 6V8629 | 4 ELBOW | 2 | |
| 8T2502 | 5 BOLT | 1 | |
| 5P1075 | 6 WASHER | 2 | |
| 8T1895 | 7 CLIP | 4 | |
| 8T1896 | CLIP | 4 | |
| 1K5888 | 8 SPACER | 2 | |
| 4L6459 | 9 BOLT | 2 | |
| 9W5519 | 10 HOSE ASSEM. | 1 | |
| 6V9746 | 11 SEAL | 4 | |
| 9W5518 | 12 HOSE ASSEM. | 1 | |
| 8T5389 | 13 ELBOW | 1 | |
| 9W5517 | 14 HOSE ASSEM. | 1 | |
| 5P0181 | 15 HOSE 96cm | NULL | |
| 5P5121 | STEM ASSEM. (110DEGREES) | 1 | |
| 3S7252 | SLEEVE | 2 | |
| 7S0575 | STEM ASSEM. (90DEGREES) | 1 | |
| 4F7952 | 15 SEAL | 4 | |
| 9W5516 | 16 SPACER | 1 | |
| 9W8602 | 17 PLATE ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 2 | |
| 8T4896 | 18 WASHER | 2 | |
| 9B7237 | 19 BOLT | 1 | |
| 7X0507 | 20 WASHER | 2 |
