System And Components

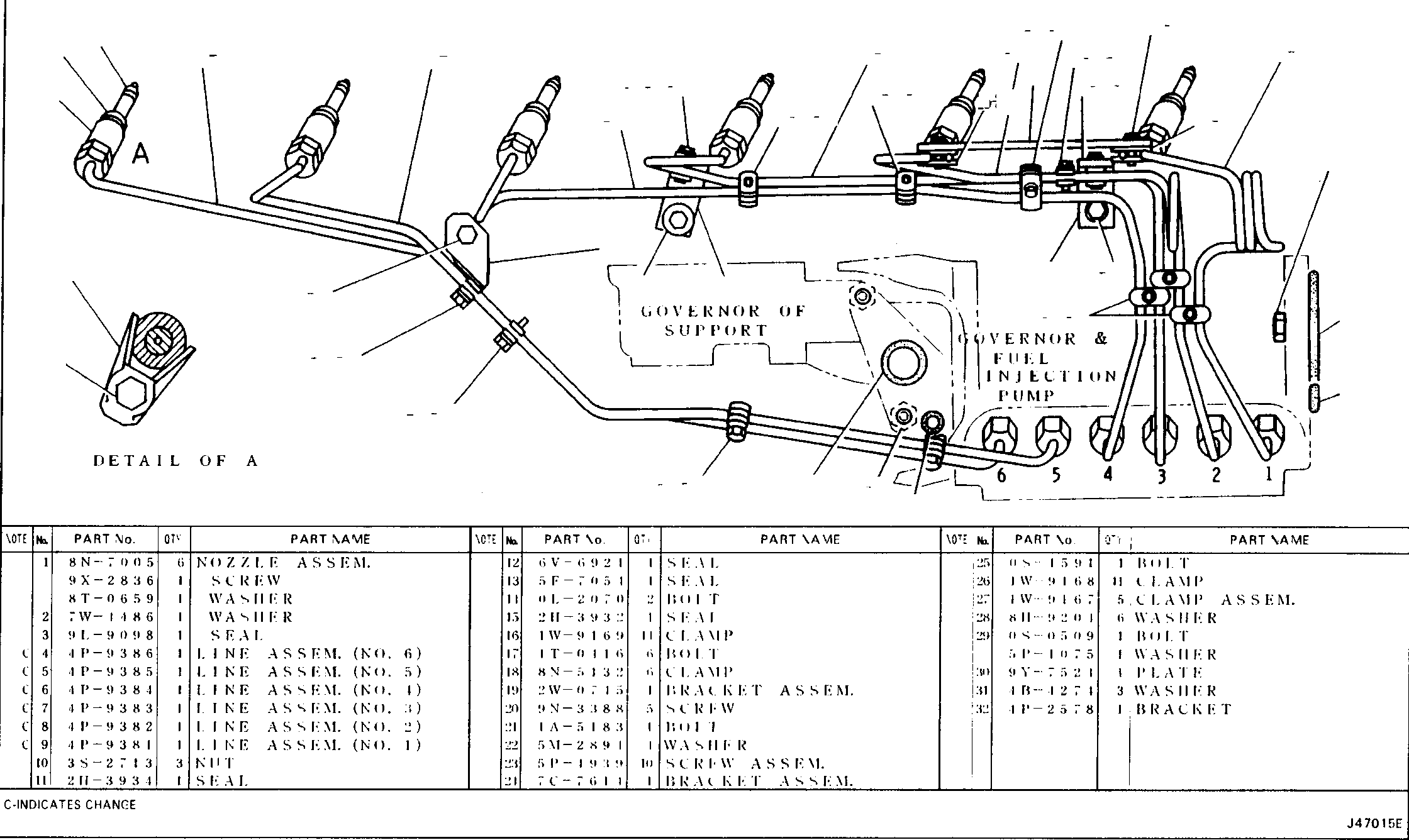

FUEL INJECTION LINES (9Y7799 N/S)
Group No: FUEL
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8N7005 | 1 NOZZLE ASSEM. | 6 | |
| 9X2836 | SCREW | 1 | |
| 8T0659 | WASHER | 1 | |
| 7W4486 | 2 WASHER | 1 | |
| 9L9098 | 3 SEAL | 1 | |
| 4P9386 | 4 LINE ASSEM. (NO. 6) | 1 | |
| 4P9385 | 5 LINE ASSEM. (NO. 5) | 1 | |
| 4P9384 | 6 LINE ASSEM. (NO. 4) | 1 | |
| 4P9383 | 7 LINE ASSEM. (NO. 3) | 1 | |
| 4P9382 | 8 LINE ASSEM. (NO. 2) | 1 | |
| 4P9381 | 9 LINE ASSEM. (NO. 1) | 1 | |
| 3S2713 | 10 NUT | 3 | |
| 2H3934 | 11 SEAL | 1 | |
| 6V6921 | 12 SEAL | 1 | |
| 5F7054 | 13 SEAL | 1 | |
| 0L2070 | 14 BOLT | 2 | |
| 2H3932 | 15 SEAL | 1 | |
| 1W9169 | 16 CLAMP | 14 | |
| 1T0116 | 17 BOLT | 6 | |
| 8N5132 | 18 CLAMP | 6 | |
| 2W0745 | 19 BRACKET ASSEM. | 1 | |
| 9N3388 | 20 SCREW | 5 | |
| 1A5183 | 21 BOLT | 1 | |
| 5M2891 | 22 WASHER | 4 | |
| 5P4939 | 23 SCREW ASSEM. | 10 | |
| 7C7611 | 24 BRACKET ASSEM. | 1 | |
| 0S1591 | 25 BOLT | 1 | |
| 1W9168 | 26 CLAMP | 11 | |
| 1W9167 | 27 CLAMP ASSEM. | 5 | |
| 8H9204 | 28 WASHER | 6 | |
| 0S0509 | 29 BOLT | 1 | |
| 5P1075 | WASHER | 1 | |
| 9Y7524 | 30 PLATE | 1 | |
| 4B4274 | 31 WASHER | 3 | |
| 4P2578 | 32 BRACKET | 1 |
